Automatic Transaxle Unit: Installation

WARNING: This page is about a different variant/trim than selected.

CHECK TORQUE CONVERTER CLUTCH INSTALLATION
Using calipers and a straight edge, measure the distance from the installed surfaced of the transaxle housing to the torque converter clutch.

Correct distance: 9.3 mm (0.366 in.)

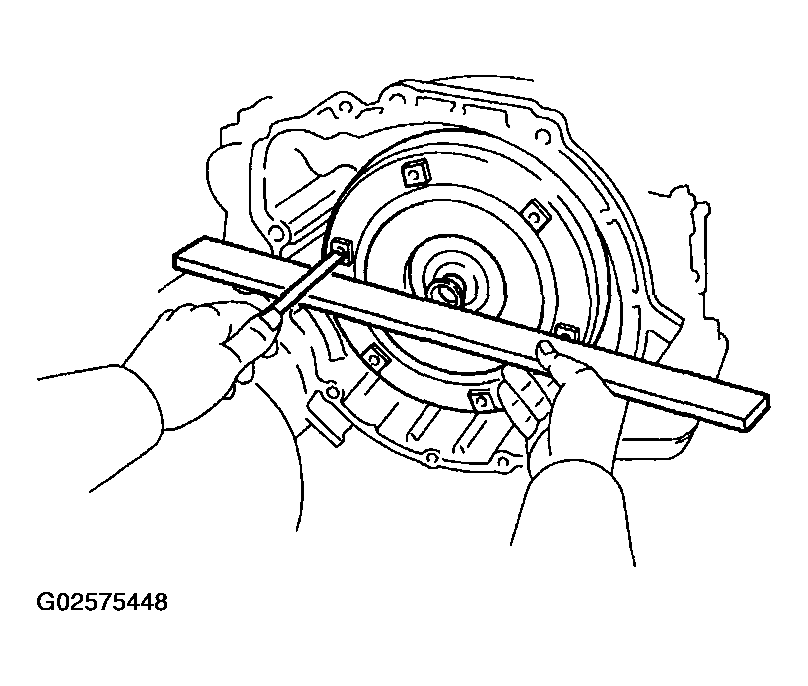

Fig 1: Checking Torque Converter Clutch Installation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TRANSAXLE INSTALLATION
Installation is in the reverse order of removal (See REMOVAL ).
NOTE:
- After installation, adjust the park/neutral position switch (See PRE-CHECK ).
- Fill ATF and check fluid level (See PRE-CHECK ).
- Do test to drive the vehicle (See PRE-CHECK ).
