On-Vehicle Inspection

CHECK PARKING BRAKE LEVER TRAVEL
Pull the parking brake lever all the way up, and count the number of clicks.

Parking brake lever travel at 196 N (20 kgf, 44.1 lbf):

6 - 9 clicks

If incorrect, adjust the parking brake.

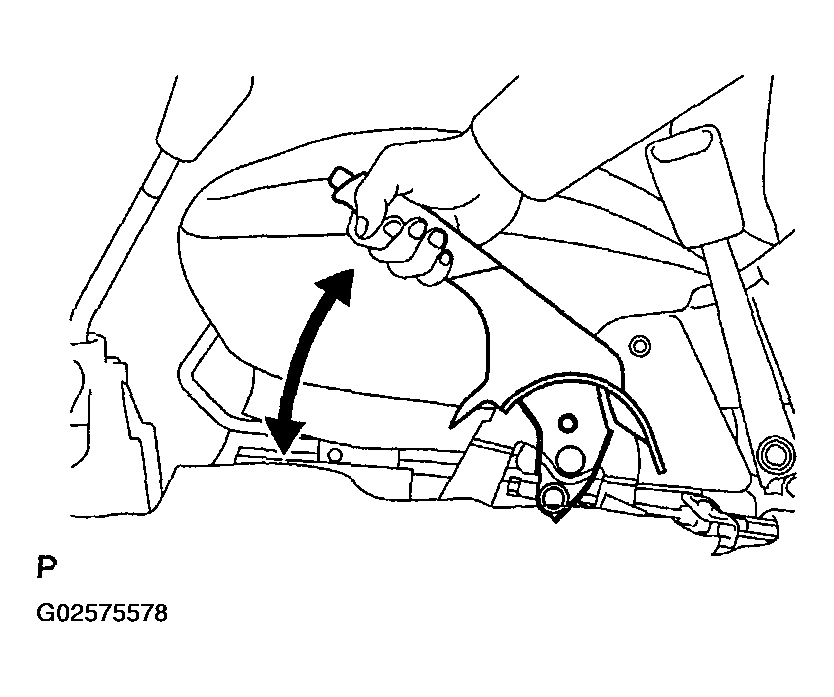

Fig 1: Pulling Parking Brake Lever
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
IF NECESSARY, ADJUST PARKING BRAKE
NOTE: Before adjusting the parking brake, make sure that the rear brake shoe clearance has been adjusted.

For shoe clearance adjustment, see INSTALLATION .
1. Remove the console box.
2. Loosen the lock nut and turn the adjusting nut until the lever travel is correct.
3. Tighten the lock nut.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

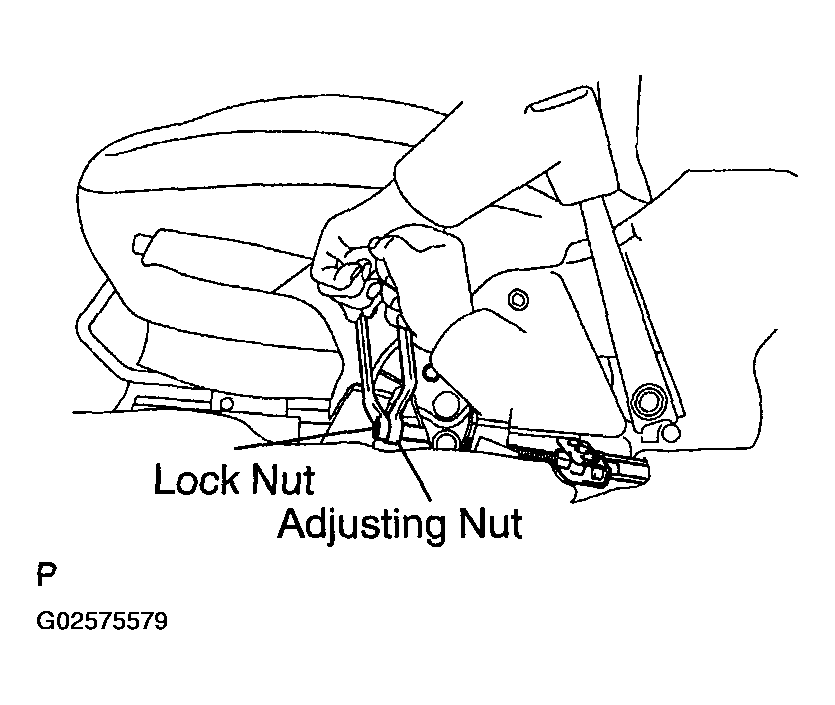

  Fig 2: Adjusting Parking Brake
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the console box.
