Rear Brake Shoe, Wheel Cylinder & Brake Drum: Installation

Installation is in the reverse order of removal (See REMOVAL ).

NOTE: Apply lithium soap base glycol grease and high temperature grease to the parts indicated by the arrows (See REAR DRUM BRAKE ).

CHECK OPERATION OF AUTOMATIC ADJUSTING MECHANISM
1. Narrow the brake shoe width to the most and install the brake drum.
2. Depress the brake pedal several times.
CHECK CLEARANCE BETWEEN BRAKE SHOES AND DRUM
1. Remove the brake drum.
2. Measure the brake drum inside diameter and diameter of the brake shoes. Check that the difference between the diameters is the correct shoe clearance.
  Shoe clearance: 0.6 mm (0.024 in.)

  If incorrect, check the adjusting lever and adjusting latch.
3. Install the brake drum.
FILL BRAKE RESERVOIR WITH BRAKE FLUID
BLEED BRAKE SYSTEM (See BRAKE FLUID )
CHECK FOR LEAKS
INSTALL REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

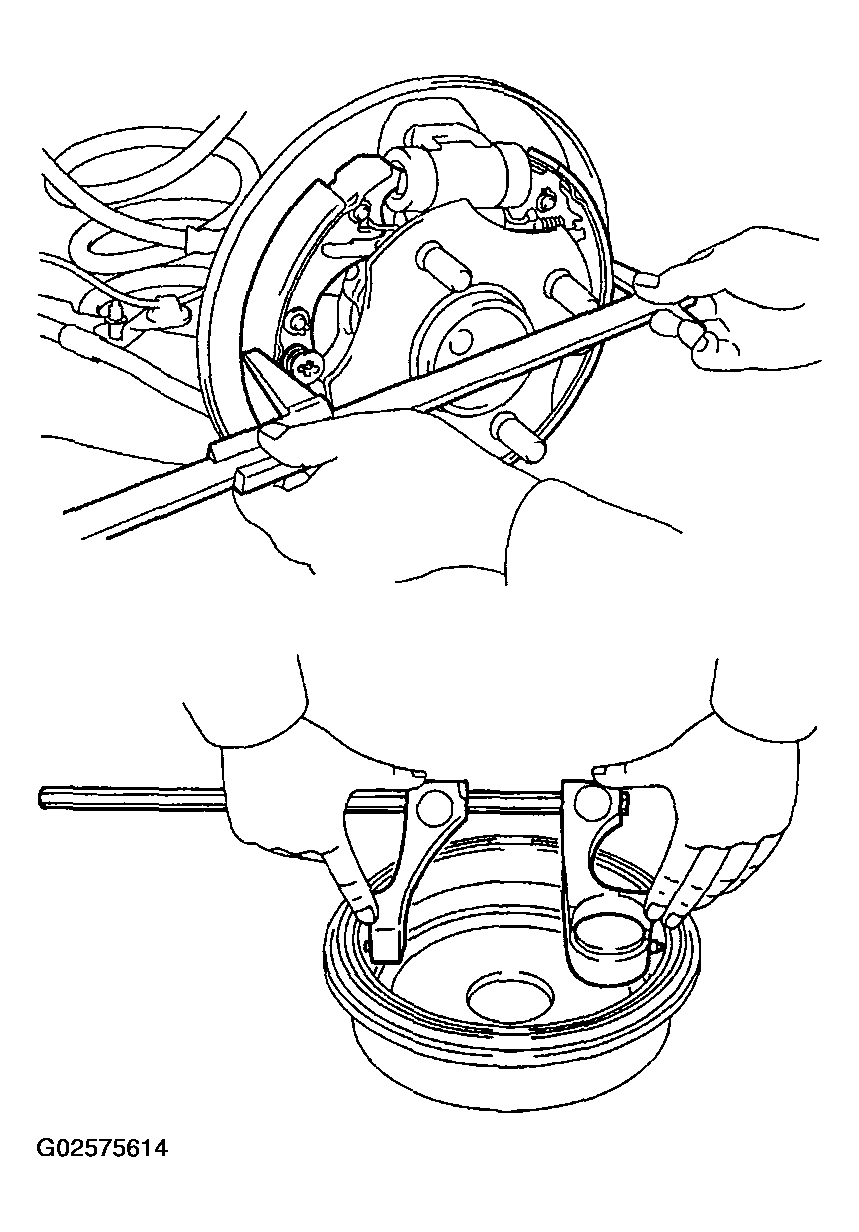

Fig 1: Measuring Brake Drum Inside Diameter And Diameter Of The Brake Shoes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
