Diagnostic Trouble Codes Check/Clear

CHECK DTC (NOT USING HAND-HELD TESTER)
1. Using SST, connect terminals TC and CG of the DLC3. SST 09843-18040
2. Turn the ignition switch to the ON position.
3. Read the DTC from the ABS warning light on the combination meter.
  HINT:
  - If a code does not appear, inspect the diagnostic circuit or ABS warning light circuit (see ABS WARNING LIGHT CIRCUIT (REMAINS ON) or ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP) ).

    Fig 1: Connecting Terminals TC And CG Of DLC3
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - As examples, the blinking patterns for normal code and codes 11 and 21 are shown on the left.
4. Codes are explained in the code table on DIAGNOSTIC TROUBLE CODE CHART .
  If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC will be displayed first.
5. After completing the check, remove the SST from the DLC3. SST 09843-18040

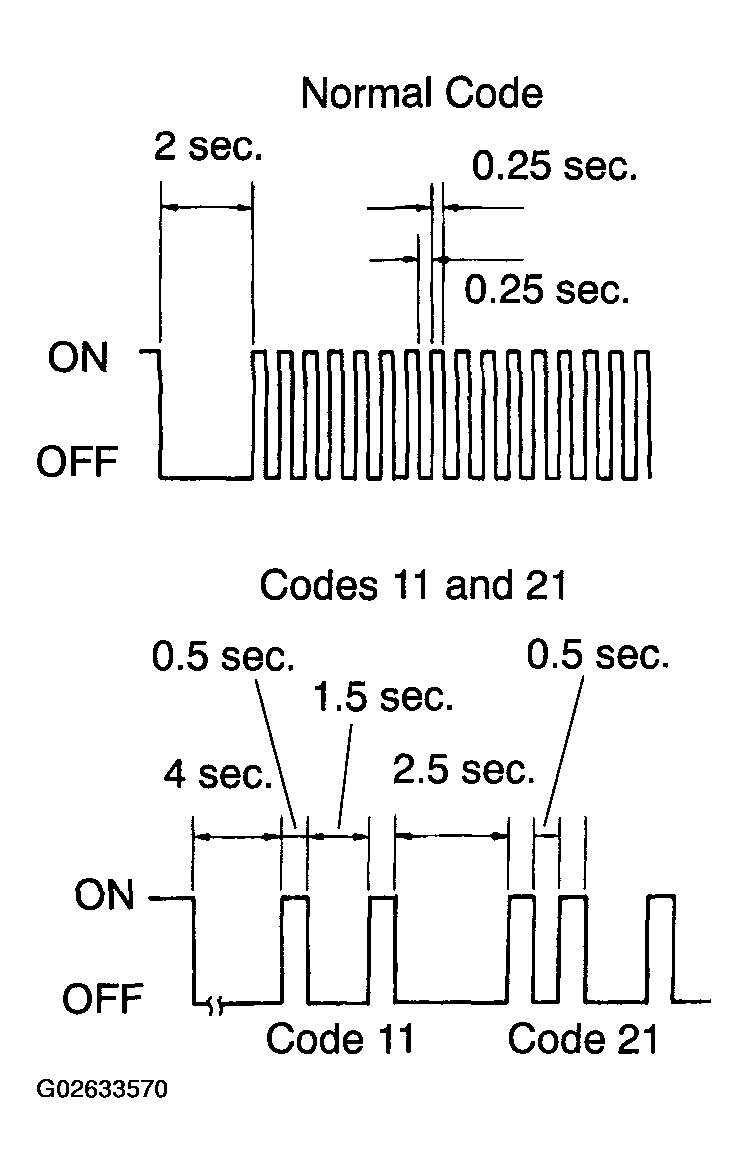

  Fig 2: Normal Code And Codes 11 And 21 Blinking Pattern
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK DTC (USING HAND-HELD TESTER)
1. Read the DTC by following the prompts on the tester screen.
HINT:

Refer to the hand-held tester operator's manual for further details.
CLEAR DTC (NOT USING HAND-HELD TESTER)
1. Using SST, connect terminals TC and CG of the DLC3. SST 09843-18040
2. Turn the ignition switch to the ON position.
3. Clear DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the ABS warning light shows the normal code.
5. Remove the SST from the DLC3. SST 09843-18040

  Fig 3: Depressing Brake Pedal To Clear DTC Stored In ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:

Disconnecting the battery cable during repairs will not erase the DTC in the ECU.
CLEAR DTC (USING HAND-HELD TESTER)
1. Turn the ignition switch to the ON position.
2. Operate the hand-held tester to erase the codes.
HINT:

Refer to the hand-held tester operator's manual for further details.
