Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0205/32, C1235/35, C1236/36 | RIGHT/LEFT FRONT SPEED SENSOR CIRCUIT & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT FRONT SENSOR |
| DTC C0210/33, C0215/34, C1238/38, C1239/39 | RIGHT/LEFT REAR SPEED SENSOR CIRCUIT & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT REAR SENSOR |
| DTC C0226/21, C0236/22, C0246/23, C0256/24 | SFR/SFL/SRR/SRL SOLENOID CIRCUIT |
| DTC C0273/13, C0274/14 | OPEN/B+ SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT |
| DTC C0278/11, C0279/12 | OPEN/SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT |
| DTC C1241/41 | LOW BATTERY POSITIVE VOLTAGE |
| DTC C1249/49 | OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT |
| DTC C1251/51 | PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND |
HINT:
- Using SST 09843-18040, connect terminals TC and CG of the DLC3.
- If no abnormalities are found when inspecting the parts, inspect the ECU and wire harness.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, refer to the "See page" under the respective "DTC No." in the following DTC chart.
HINT:
There is a case that the hand-held tester cannot be used when the ABS warning light is always ON.

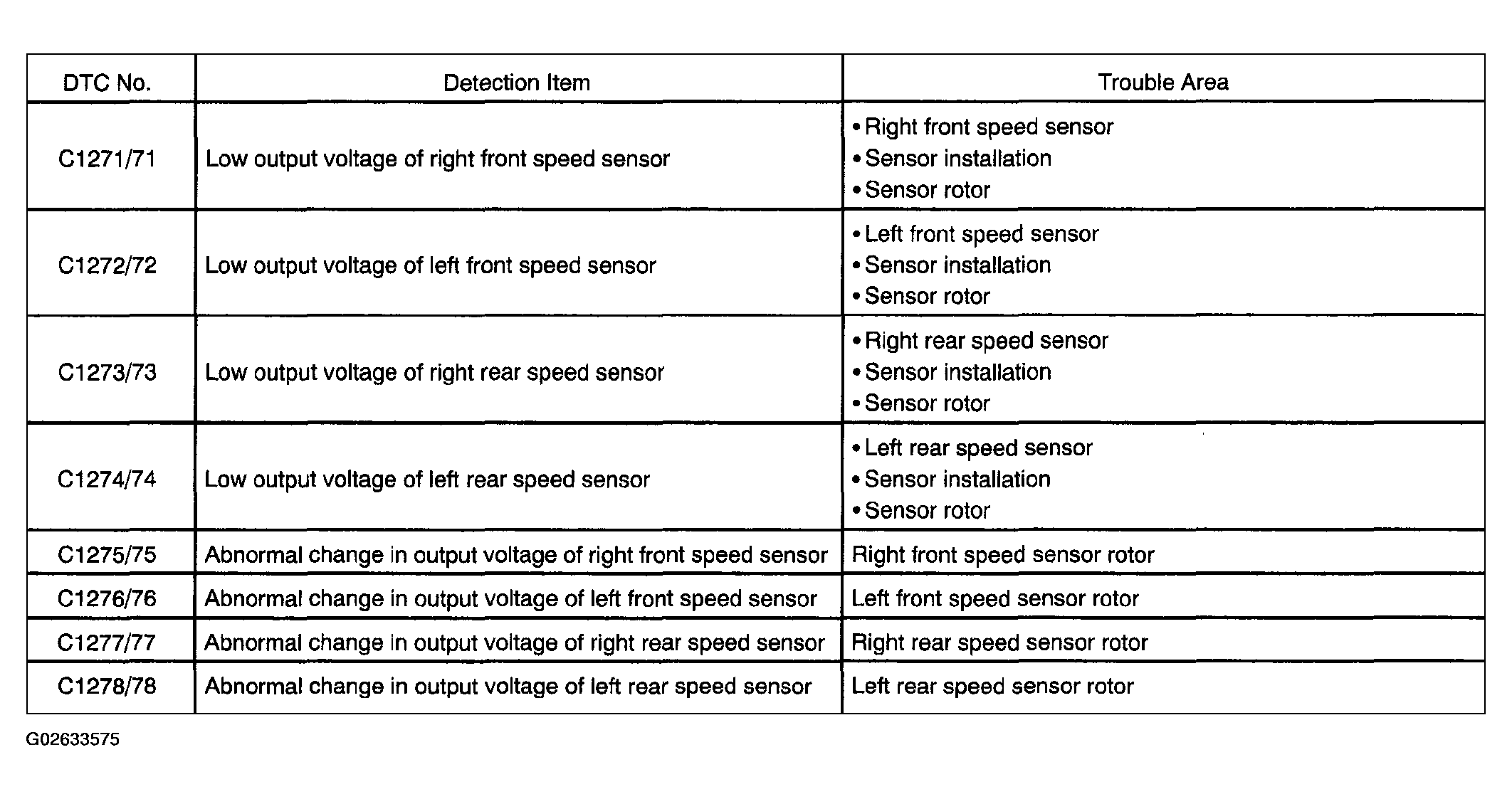

DTC of speed sensor check function:
