YAWRATE Sensor: Replacement

NOTE: Do not separate the sensor from the bracket.
  1. REMOVE CONSOLE PANEL UPPER REAR (See  REPLACEMENT  )
  2. REMOVE RR CONSOLE BOX (See  REPLACEMENT  )
  3. REMOVE YAWRATE SENSOR
    1. Disconnect the yawrate sensor connector.
    2. Remove the 2 bolts and yawrate sensor.
      Fig 1: Removing Yawrate Sensor
      G02593938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL YAWRATE SENSOR
    1. Install the yawrate sensor with the 2 bolts.

      Torque: 12.5 N.m (127 kgf.cm, 9 ft.lbf)

    2. Connect the yawrate sensor connector.

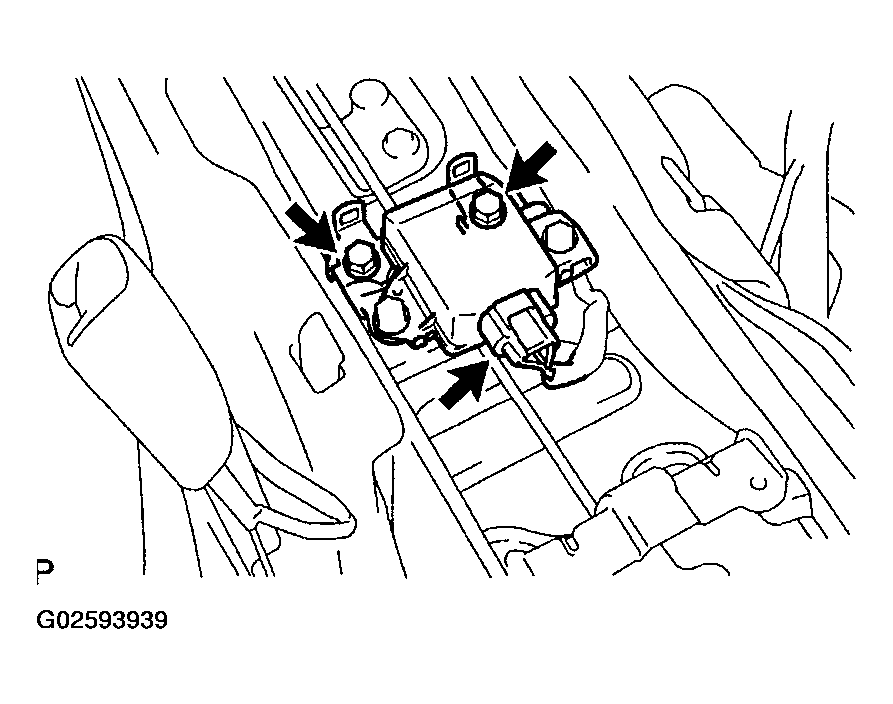

      Fig 2: Installing Yawrate Sensor
      G02593939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RR CONSOLE BOX (See  REPLACEMENT  )
  6. INSTALL CONSOLE PANEL UPPER REAR (See  REPLACEMENT  )
  7. PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION (See  CALIBRATION  )
