Lower Ball Joint ASSY Front LH: Replacement

HINT:

• COMPONENTS: See COMPONENTS
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT AXLE HUB LH NUT (SEE  OVERHAUL  )

   SST 09930-00010

3. DISCONNECT SPEED SENSOR FRONT LH (SEE  OVERHAUL  )
4. DISCONNECT FRONT DISC BRAKE CALIPER ASSY LH (SEE  REPLACEMENT  )
5. REMOVE FRONT DISC (SEE  OVERHAUL  )
6. DISCONNECT TIE ROD ASSY LH (SEE  OVERHAUL  )

   SST 09628-62011

7. DISCONNECT FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH (SEE  OVERHAUL  )
8. REMOVE FRONT AXLE ASSY LH (SEE  OVERHAUL  )
9. REMOVE LOWER BALL JOINT ASSY FRONT LH
   1. Remove the cotter pin and castle nut.
   2. Using SST, remove the lower ball joint assy front LH

      SST 09628-62011

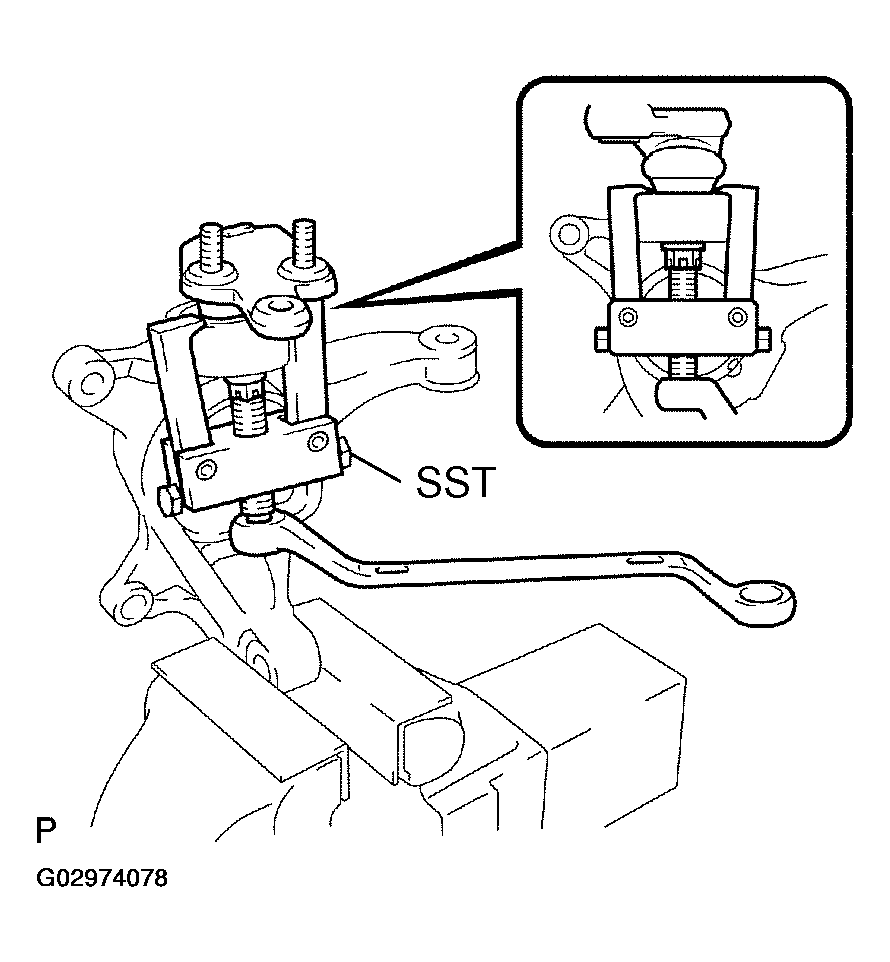

      Fig 1: Removing Lower Ball Joint Assy Front LH Using SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSPECT LOWER BALL JOINT ASSY FRONT LH
    1. Secure the lower ball joint assy front LH in a vise.
    2. Install the nut to the stud bolt.
    3. Flip the ball joint back and forth 5 times or more.
    4. Use a torque wrench to turn the nut continuously at a rate of 3 to 5 seconds per 1 turn. Take the torque reading on the 5th turn.

       Turning torque:

       0.98 to 3.43 N.m (10 to 35 kgf.cm, 8.7 to 30 in.lbf)

       If the value is not within the specification, replace the lower ball joint assy with a new one.

       Fig 2: Inspecting Lower Ball Joint Assy Front LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL LOWER BALL JOINT ASSY FRONT LH
    1. Install the lower ball joint assy front LH to the steering knuckle with the castle nut.

       Torque: 123 N.m (1,250 kgf.cm, 91 ft.lbf)

    2. Install a new cotter pin to the steering knuckle.
       NOTE: Further tighten the nut up to 60° if the holes for the cotter pin are not aligned.
12. INSTALL FRONT AXLE ASSY LH (SEE  OVERHAUL  )
13. INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH (SEE  OVERHAUL  )
14. INSTALL TIE ROD ASSY LH (SEE  OVERHAUL  )
15. INSTALL FRONT DISC (SEE  OVERHAUL  )
16. INSTALL FRONT DISC BRAKE CALIPER ASSY LH (SEE  REPLACEMENT  )
17. INSTALL SPEED SENSOR FRONT LH (SEE  OVERHAUL  )
18. INSTALL FRONT AXLE HUB LH NUT (SEE  OVERHAUL  )
19. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

20. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (SEE  ADJUSTMENT  )
21. CHECK ABS SPEED SENSOR SIGNAL

    w/VSC (SEE  DTC CHECK/CLEAR  )

    w/o VSC (SEE  DTC CHECK/CLEAR  )
