Parking Brake Cable ASSY No.3: Replacement

HINT:

Replace the parking brake cable assy No.2 using the same procedures as for the parking brake cable assy No.3.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSY LH (SEE  OVERHAUL  )
3. REMOVE REAR DISC (SEE  OVERHAUL  )
4. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING (SEE  OVERHAUL  )
5. REMOVE PARKING BRAKE SHOE STRUT LH (SEE  OVERHAUL  )
6. REMOVE PARKING BRAKE SHOE (SEE  OVERHAUL  )
7. REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE  REPLACEMENT  )
8. REMOVE POSITION INDICATOR HOUSING ASSY (SEE  REPLACEMENT  )
9. REMOVE CONSOLE BOX UPPER
10. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
11. REMOVE CONSOLE BOX ASSY (SEE  REPLACEMENT  )
12. DISCONNECT PARKING BRAKE CABLE ASSY NO.4 (SEE  OVERHAUL  )
13. REMOVE PARKING BRAKE CABLE ASSY NO.3

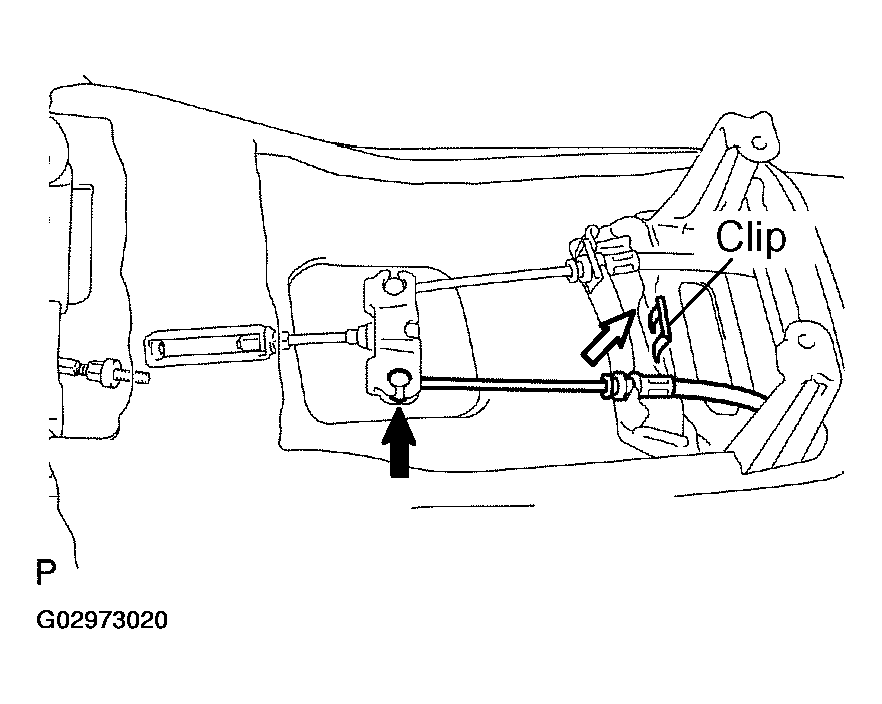

    1. Remove the clip and separate the parking brake cable assy No.3 from the parking brake equalizer.
       Fig 1: Separating Parking Brake Cable Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

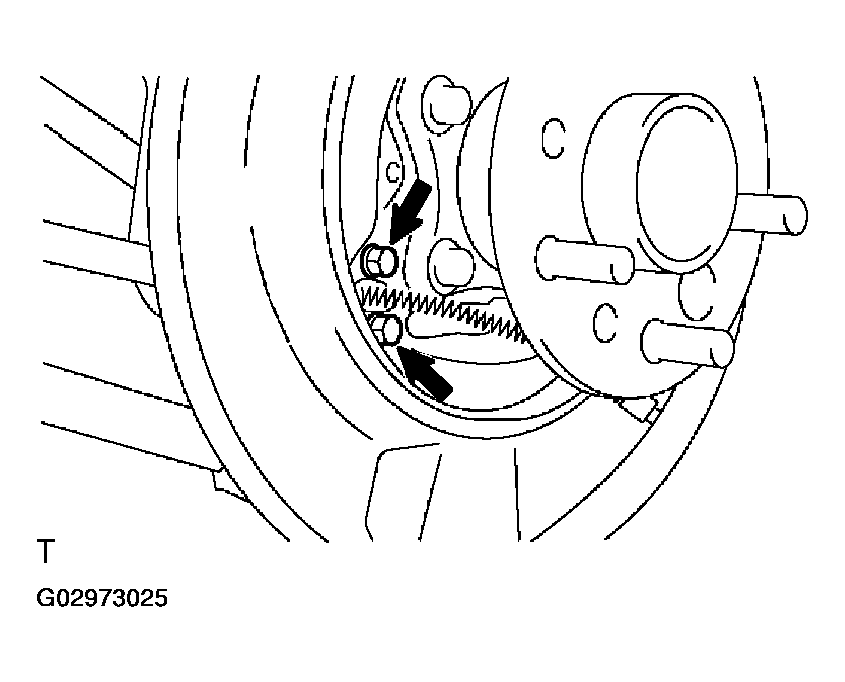

    2. Remove the 2 bolts and separate the parking brake cable assy No.3 from the backing plate.
       Fig 2: Separating Parking Brake Cable Assy From Backing Plate

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

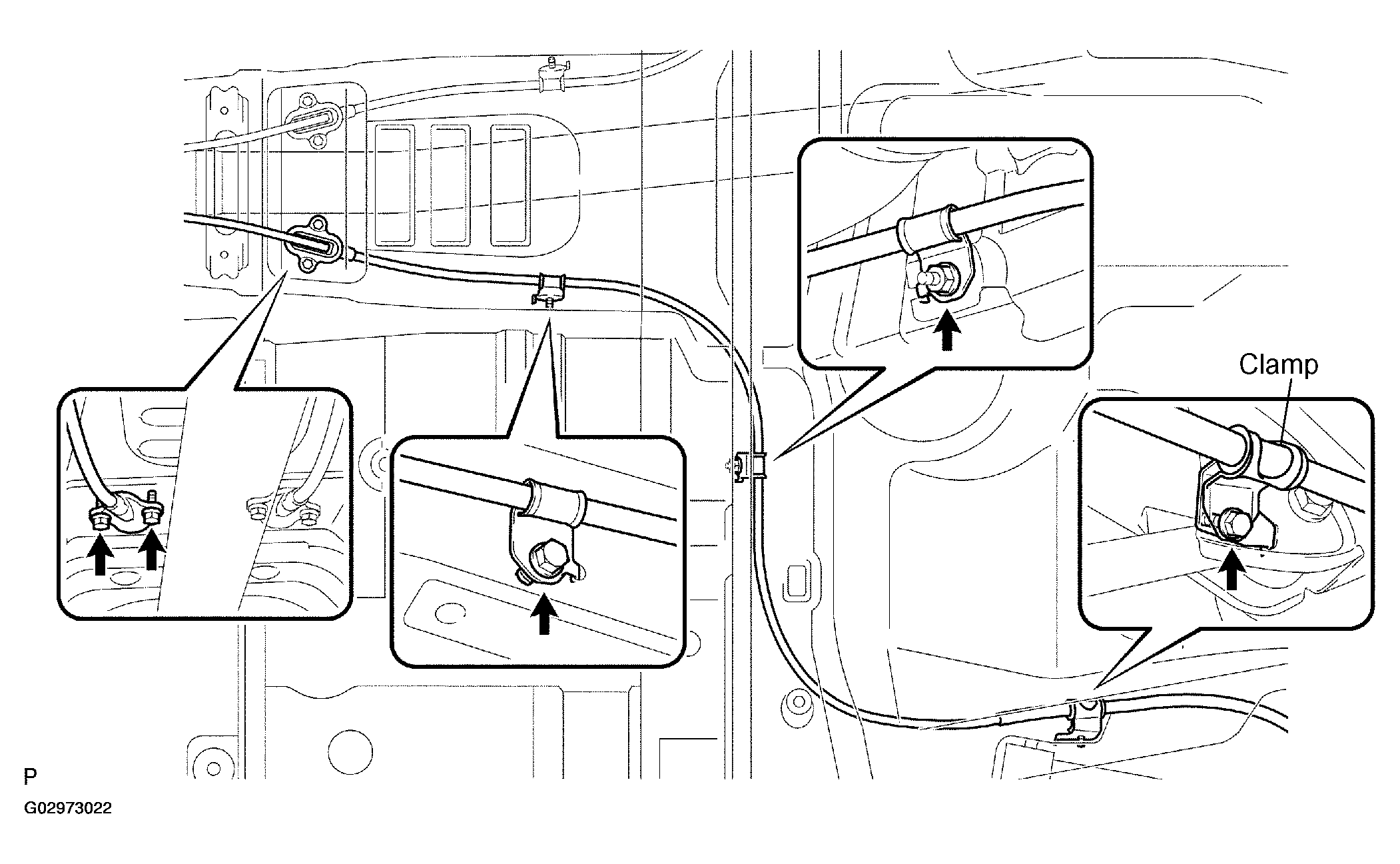

    3. Remove the 4 bolts and nut shown in the illustration, then remove the parking brake cable assy No.3.
       Fig 3: Removing Bolts And Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the clamp from the parking brake cable assy No.3.
14. INSTALL PARKING BRAKE CABLE ASSY NO.3
    1. Connect the parking brake cable assy No.3 to the parking brake equalizer.
    2. Fix the parking brake cable assy No.3 with the clip.
       Fig 4: Fixing Parking Brake Cable Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the parking brake cable assy No.3 with the 4 bolts, nut and clamp as shown in the illustration.

       Torque:

       8.5 N.m (87 kgf.cm, 75 in. lbf) (Bolt A)

       6.0 N.m (61 kgf.cm, 53 in. lbf) (Bolt B)

       6.0 N.m (61 kgf.cm, 53 in. lbf) (Nut)

       Fig 5: Installing Parking Brake Cable Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the parking brake cable assy No.3 to the backing plate with the 2 bolts.

       Torque: 8.0 N.m (82 kgf.cm, 71 in. lbf)

       Fig 6: Connecting Parking Brake Cable Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. APPLY HIGH TEMPERATURE GREASE (SEE  OVERHAUL  )
16. INSTALL PARKING BRAKE SHOE (SEE  OVERHAUL  )
17. INSTALL PARKING BRAKE SHOE STRUT LH (SEE  OVERHAUL  )
18. INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING (SEE  OVERHAUL  )
19. CHECK PARKING BRAKE INSTALLATION (SEE  OVERHAUL  )
20. INSTALL REAR DISC (SEE  OVERHAUL  )
21. ADJUST PARKING BRAKE SHOE CLEARANCE (SEE  OVERHAUL  )
22. INSTALL REAR DISC BRAKE CALIPER ASSY LH (SEE  OVERHAUL  )
23. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

24. INSTALL PARKING BRAKE CABLE ASSY NO.4 (SEE  OVERHAUL  )
25. INSTALL CONSOLE BOX ASSY
26. INSTALL CONSOLE PANEL SUB-ASSY UPPER
27. INSTALL CONSOLE BOX UPPER
28. INSTALL POSITION INDICATOR HOUSING ASSY
29. INSTALL SHIFT LEVER KNOB SUB-ASSY
30. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL (SEE  ADJUSTMENT  )
