Abs & Traction Actuator ASSY (W/VSC): Replacement

DRAIN BRAKE FLUID
NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE BRAKE ACTUATOR WITH BRACKET
1. Using SST, disconnect the 6 brake tubes from the actuator with bracket.
  SST 09023-00101

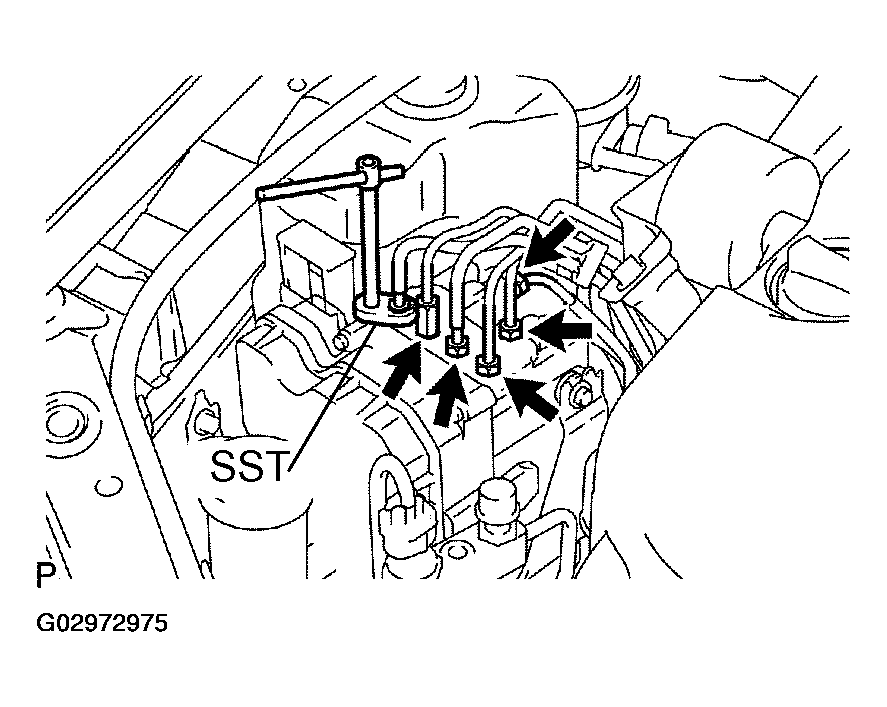

  Fig 1: Disconnecting Brake Tubes From Actuator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Use tags or make a memo to identify the reconnection points.

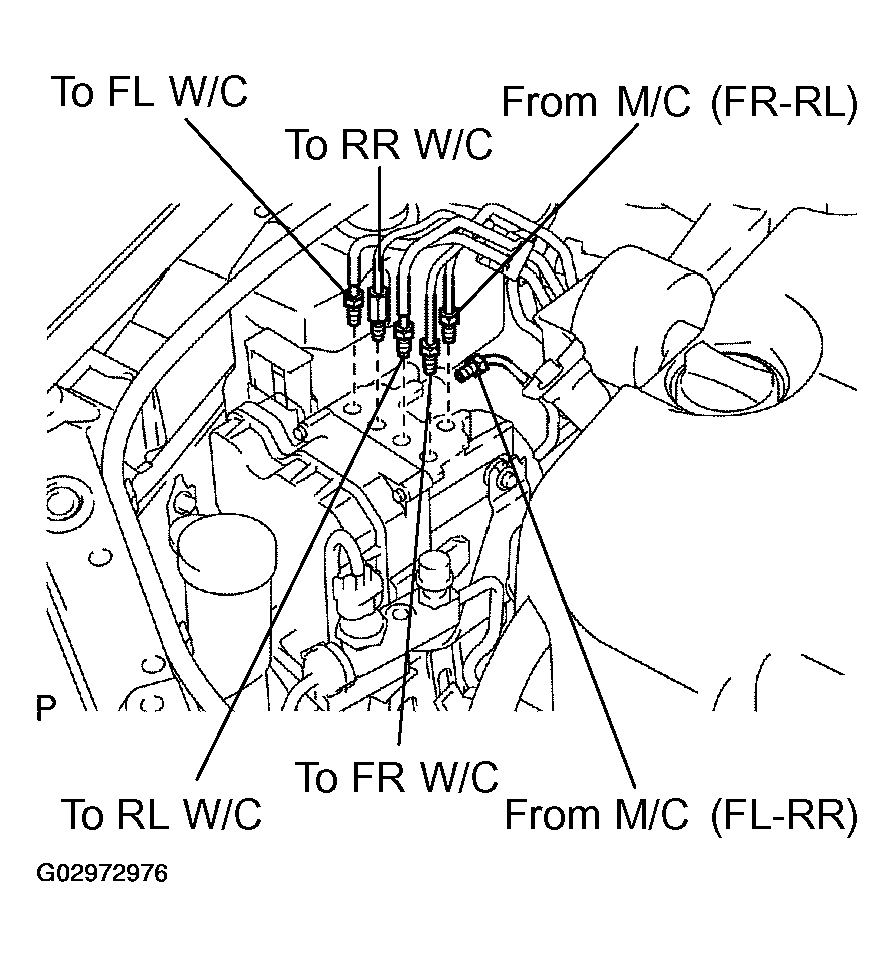

  Fig 2: Making Memo To Identify Reconnection Points
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull the lock lever upward.
4. Disconnect the actuator connector.

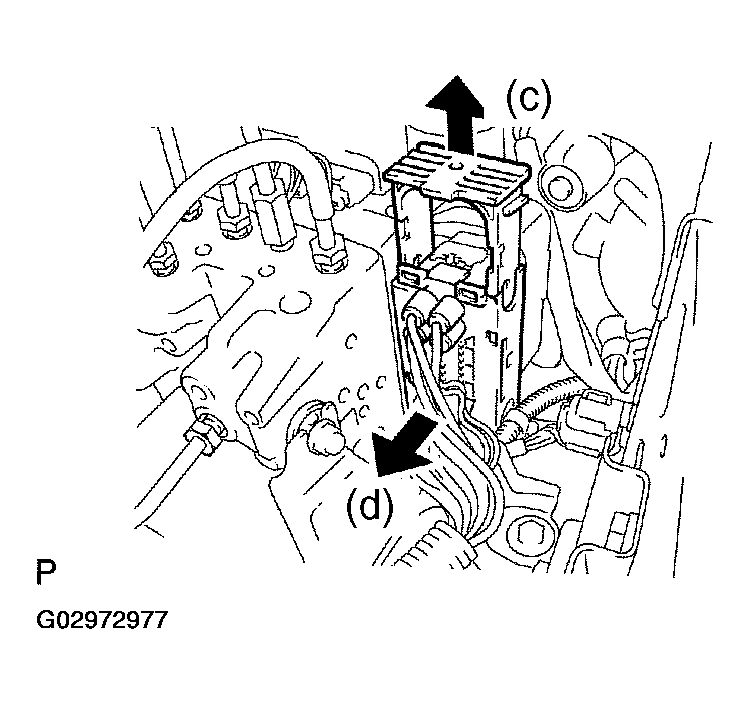

  Fig 3: Disconnecting Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 3 bolts and the actuator with bracket.
  NOTE: Do not damage the brake tubes and wire harness.

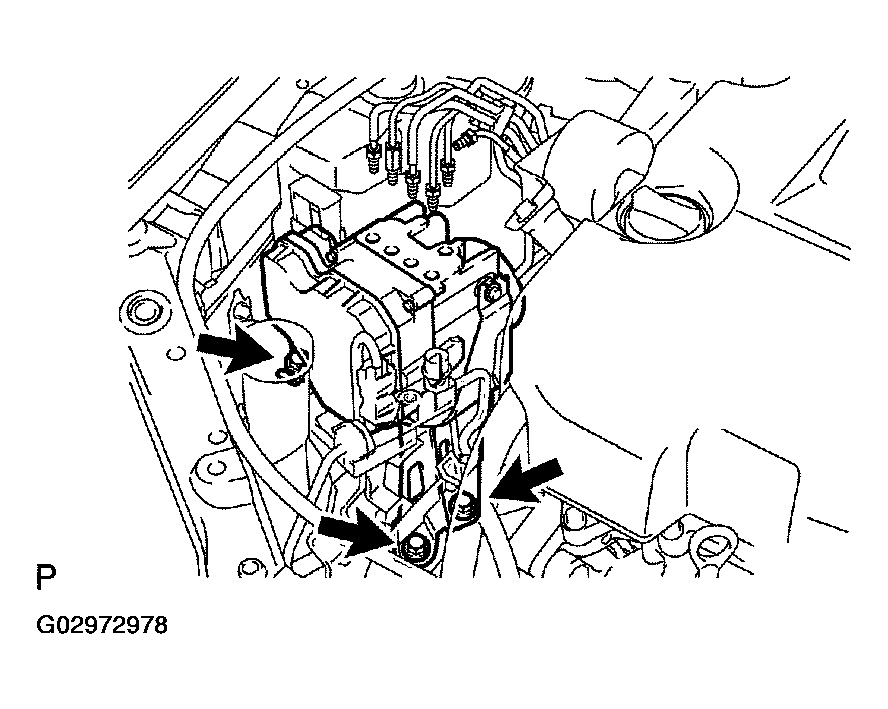

  Fig 4: Removing Bolts And Actuator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ABS & TRACTION ACTUATOR ASSY
1. Remove the 2 nuts and the brake actuator assy from the brake actuator bracket.
INSTALL ABS & TRACTION ACTUATOR ASSY
1. Install the brake actuator assy with the 2 nuts.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
INSTALL BRAKE ACTUATOR WITH BRACKET
1. Install the actuator with bracket with the 3 bolts.
  Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

  NOTE: Do not damage the brake tubes and wire harness.

  Fig 5: Installing Actuator With Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the actuator connector.

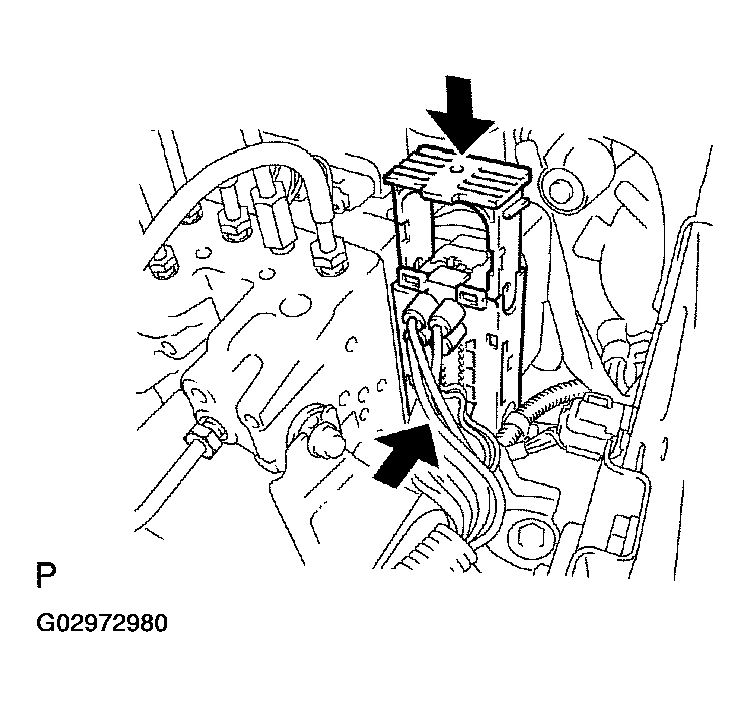

  Fig 6: Connecting Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, connect each brake tube to correct positions of the actuator with bracket as shown in the illustration.
  SST 09023-00101

  Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

  Fig 7: Connecting Each Brake Tube To Correct Positions Of Actuator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FILL RESERVOIR WITH BRAKE FLUID (SEE BLEEDING )
BLEED MASTER CYLINDER (SEE BLEEDING )
SST 09023-00101
BLEED BRAKE LINE (SEE BLEEDING )
CHECK BRAKE FLUID LEAKAGE
CHECK FLUID LEVEL IN RESERVOIR (SEE BLEEDING )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION (SEE INITIALIZATION )
1. Some systems need initialization after reconnecting the negative battery cable.
PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION (SEE CALIBRATION )
CHECK BRAKE ACTUATOR WITH HAND-HELD TESTER (SEE ON-VEHICLE INSPECTION )
