Brake Fluid: Bleeding

HINT:

If any work is performed on the brake system or if air in the brake lines is suspected, bleed the air from the brake system.

NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
  1. FILL RESERVOIR WITH BRAKE FLUID Fluid:SAE J1703 or FMVSS No. 116 DOT3

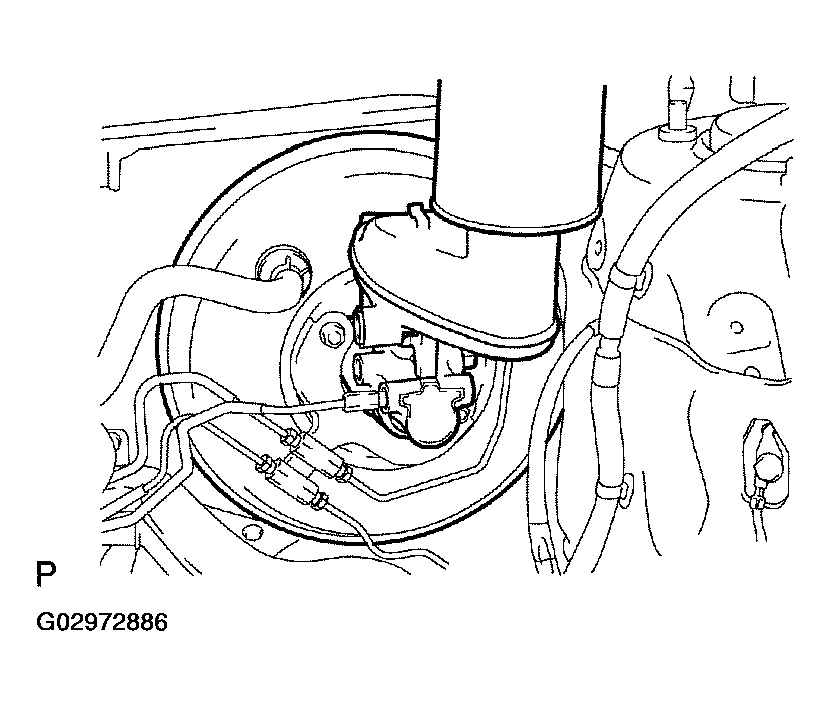

    Fig 1: Filling Reservoir With Brake Fluid
    G02972886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. BLEED MASTER CYLINDER

    HINT:

    If the master cylinder has been disassembled or if the reservoir has become empty, bleed the air from the master cylinder.

    1. Disconnect the brake lines from the master cylinder.

      SST 09023-00101

    2. Slowly depress and hold the brake pedal.

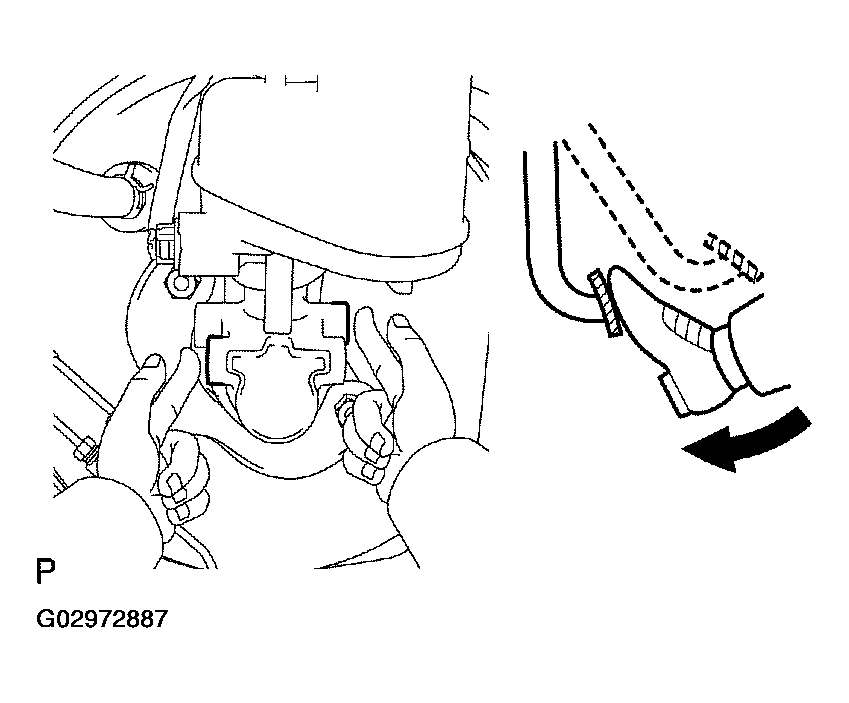

      Fig 2: Disconnecting Brake Lines From Master Cylinder
      G02972887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Cover the outer holes with your fingers, and release the brake pedal.
    4. Repeat (b) and (c) 3 or 4 times.
    5. Connect the brake lines to the master cylinder.

      SST 09023-00101

      Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

      Fig 3: Releasing Brake Pedal
      G02972888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. BLEED BRAKE LINE
    1. Connect the vinyl tube to the bleeder plug.
    2. Depress the brake pedal several times, then loosen the bleeder plug with the pedal depressed.
    3. When fluid stops coming out, tighten the bleeder plug, then release the brake pedal.
    4. Repeat (b) and (c) until all air in the fluid is completely bled out.
    5. Completely tighten the bleeder plug.

      Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      Fig 4: Identifying Bleed Brake Line
      G02972889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Repeat the above procedures for each wheel to bleed the air from the brake line.
  4. BLEED ABS & TRACTION ACTUATOR ASSY (w/VSC)
    NOTE: After bleeding the air from the brake system, if the height or feel of the brake pedal cannot be obtained, bleed the air from the brake actuator assy with a hand-held tester by following the procedures below.
    1. Depress the brake pedal more than 20 times with the engine off.
    2. Connect the hand-held tester to the DLC3, and turn the ignition switch on (IG).
      NOTE: Do not start the engine.
    3. Select "AIR BLEEDING" on the hand-held tester.

      HINT:

      Refer to the hand-held tester operator's manual for further details.

    4. Bleed the air from the brake line when "Step1: Increase" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the master cylinder reservoir tank does not become empty of brake fluid.
      1. Connect the vinyl tube to either one of the bleeder plugs.

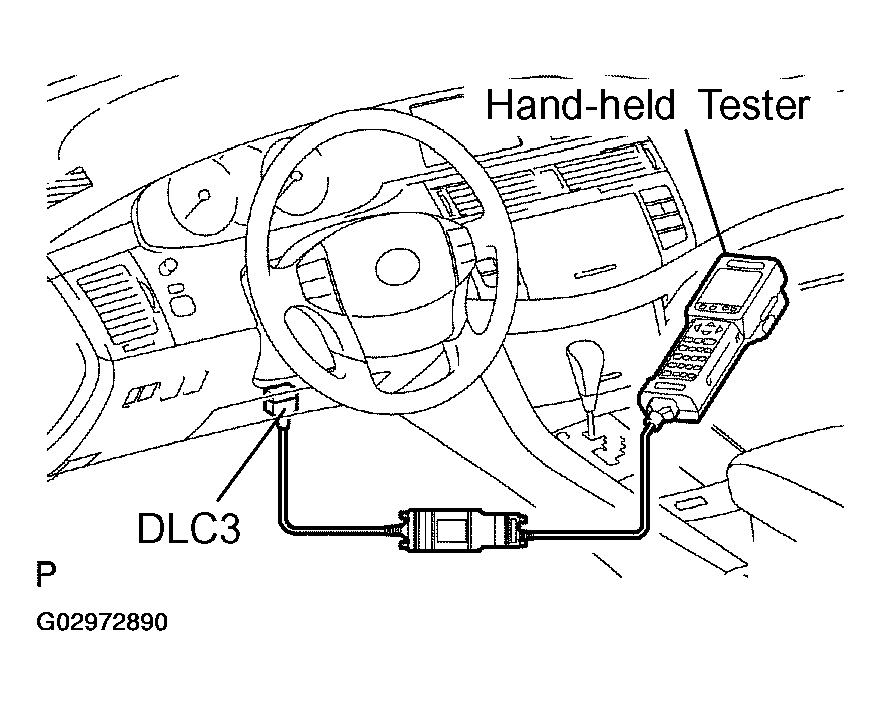

        Fig 5: Connecting Hand-Held Tester To DLC3,
        G02972890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Depress the brake pedal several times, then loosen the bleeder plug connected to the vinyl tube with the pedal depressed.
      3. When fluid stops coming out, tighten the bleeder plug and release the brake pedal.
      4. Repeat (2) and (3) until all air in the fluid is completely bled out.
      5. Tighten the bleeder plug completely.

        Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      6. Repeat the above procedures for each wheel to bleed the air from the brake line.
    5. Bleed the air from the suction line when "Step2: Inhalation" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the master cylinder reservoir tank does not become empty of brake fluid.
      Fig 6: Loosening Bleeder Plug Connected To Vinyl Tube With Pedal Depressed
      G02972891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the vinyl tube to the bleeder plug at the right front wheel or the right rear wheel and loosen the bleeder plug.
      2. Operate the brake actuator assy to bleed the air using the hand-held tester.
        NOTE:
        • This operation stops automatically after 4 seconds.
        • At this time, be sure to release the brake pedal.
      3. Check if the operation has stopped by referring to the hand-held tester display.
      4. Repeat (2) and (3) until all air in the fluid is completely bled out.
      5. Completely tighten the bleeder plug.

        Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      6. Repeat the above procedures to bleed the air from the brake line for each wheel.
    6. Bleed the air from the pressure reduction line when "Step3: Decrease" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the master cylinder reservoir tank does not become empty of brake fluid.
      1. Connect the vinyl tube to either one of the bleeder plugs.
      2. Loosen the bleeder plug.
      3. Using the hand-held tester, operate the brake actuator assy, completely depress and hold the brake pedal.
        NOTE:
        • This operation stops automatically after 4 seconds. When performing this procedure continuously, set an interval of at least 20 seconds.
        • When the operation is complete, the brake pedal goes down slightly. This is a normal phenomenon caused when the solenoid opens.
        • During this procedure, the pedal will feel heavy, but completely depress it so that the brake fluid comes out from the bleeder plug.
        • Be sure to keep the brake pedal depressed. Do not repeatedly depress and release the pedal.
      4. Tighten the bleeder plug, then release the brake pedal.
      5. Repeat (2) to (4) until all the air in the fluid is completely bled out.
      6. Completely tighten the bleeder plug.

        Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      7. Repeat the above procedures for each wheel to bleed the air from the brake line.
    7. Bleed the air from the brake line again when "Step4: Increase" appears on the hand-held tester display.
      NOTE:
      • Bleed the air by following the steps displayed on the hand-held tester.
      • Make sure that the master cylinder reservoir tank does not become empty of brake fluid.
      1. Connect the vinyl tube to either one of the bleeder plugs.
      2. Depress the brake pedal several times, then loosen the bleeder plug connected to the vinyl tube with the pedal depressed.
      3. When fluid stops coming out, tighten the bleeder plug, then release the brake pedal.
      4. Repeat (2) and (3) until all air in the fluid is completely bled out.
      5. Completely tighten the bleeder plug.

        Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

      6. Repeat the above procedures for each wheel to bleed the air from the brake line.

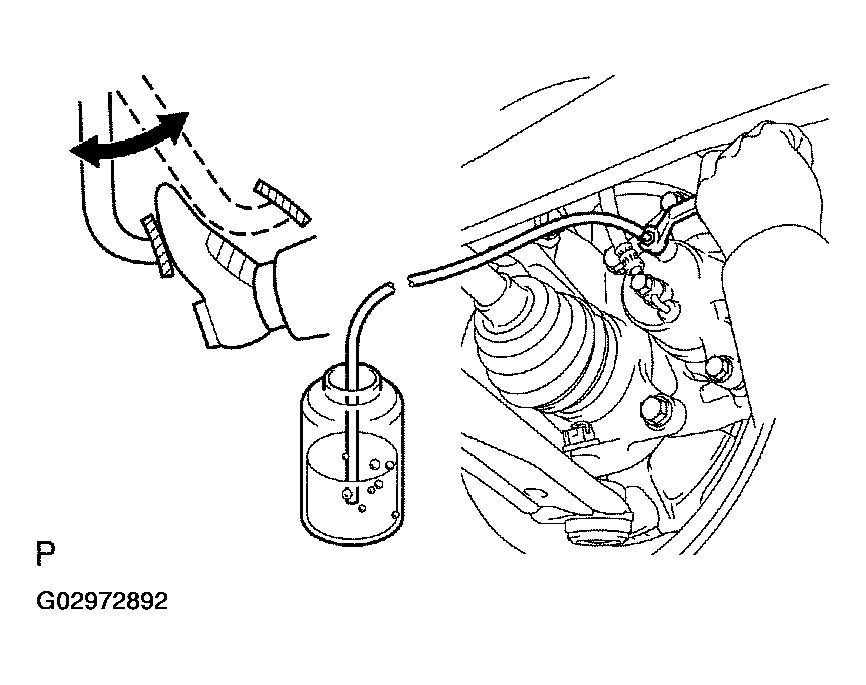

        Fig 7: Loosening Bleeder Plug Connected To Vinyl Tube With Pedal Depressed
        G02972892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CHECK FLUID LEVEL IN RESERVOIR
    1. Check the fluid level and add fluid if necessary.

      Fluid:

      SAE J1703 or FMVSS No. 116 DOT3

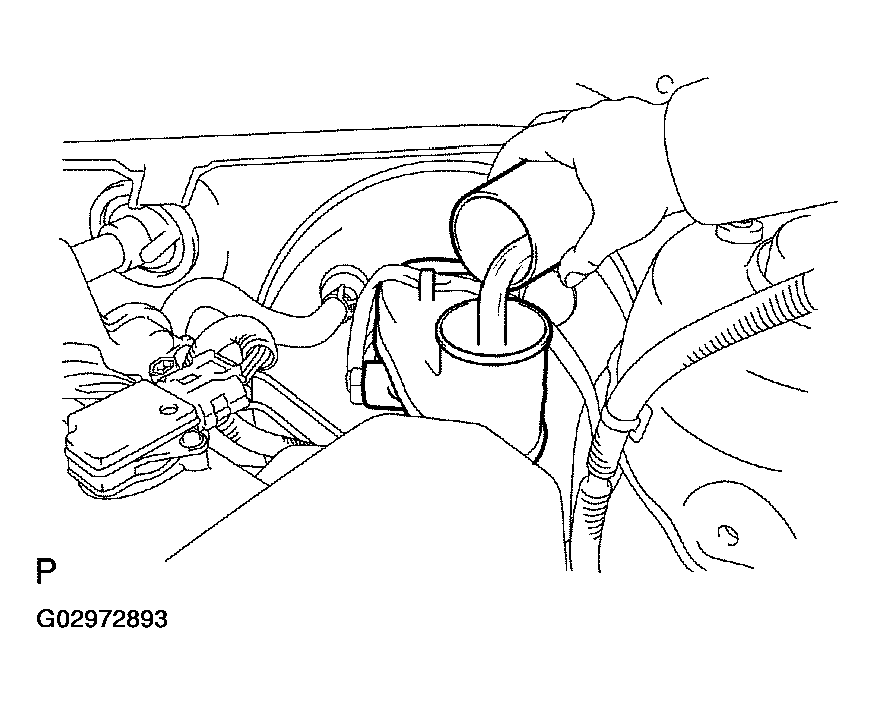

      Fig 8: Checking Fluid Level In Reservoir
      G02972893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
