Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When replacing the master cylinder solenoid, perform zero point CALIBRATION .

Inspect SLIP indicator light.
PREPARATION:
1. Disconnect the skid control ECU connector S29.
2. Ground the IND terminal.
3. Turn the ignition switch to the ON position.
CHECK:

Check that the SLIP indicator light comes on.

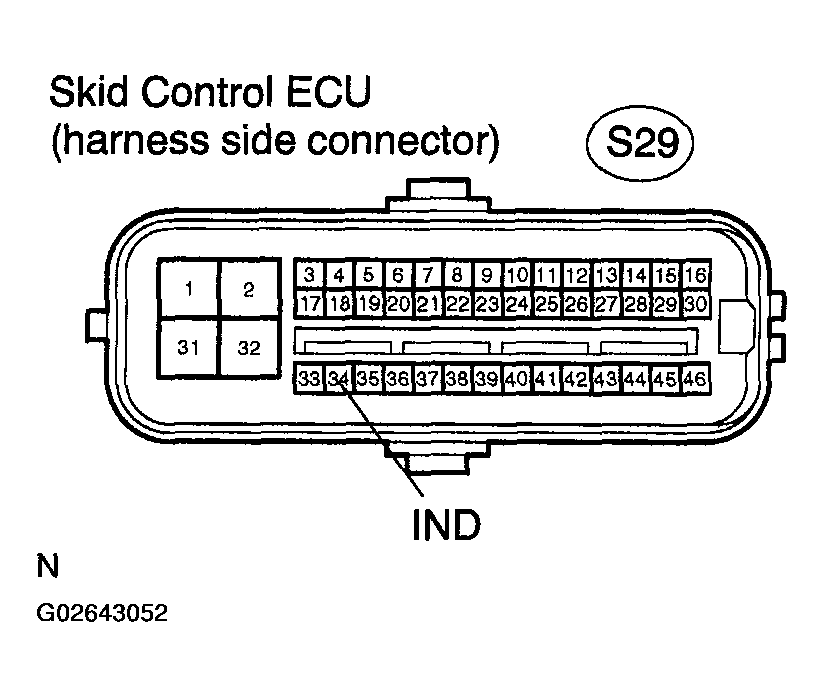

Fig 1: Identifying IND Terminal Of Skid Control ECU Connector S29
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

SLIP indicator light comes on.
1. NG : Go to step 2.
2. OK : Replace master cylinder solenoid (See DISASSEMBLY ).
Check for open or short circuit in harness and connector between master cylinder solenoid (skid control ECU) and combination meter.
1. NG : Repair or replace harness or connector.
2. OK : Go to next step.
Inspect combination meter (See CIRCUIT ).
CHECK:

Check combination meter.

OK:

Combination meter is normal.
1. NG : Check and repair combination meter.
2. OK : END.
