Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the master cylinder solenoid, perform zero point CALIBRATION  .
  1. Check stop light switch operation.

    CHECK:

    Check that the stop light comes on when the brake pedal is depressed and goes off when the brake pedal is released.

    OK:

    Stop light function is normal.

    HINT:

    Check the stop light bulb as it may have burnt out.

    1. NG : Go to step   10 .
    2. OK : Go to next step.
  2. Measure voltage between master cylinder solenoid (skid control ECU terminal STP) and body ground.

    PREPARATION:

    Disconnect the skid control ECU connector S29.

    CHECK:

    Measure the voltage according to the value(s) in the table below.

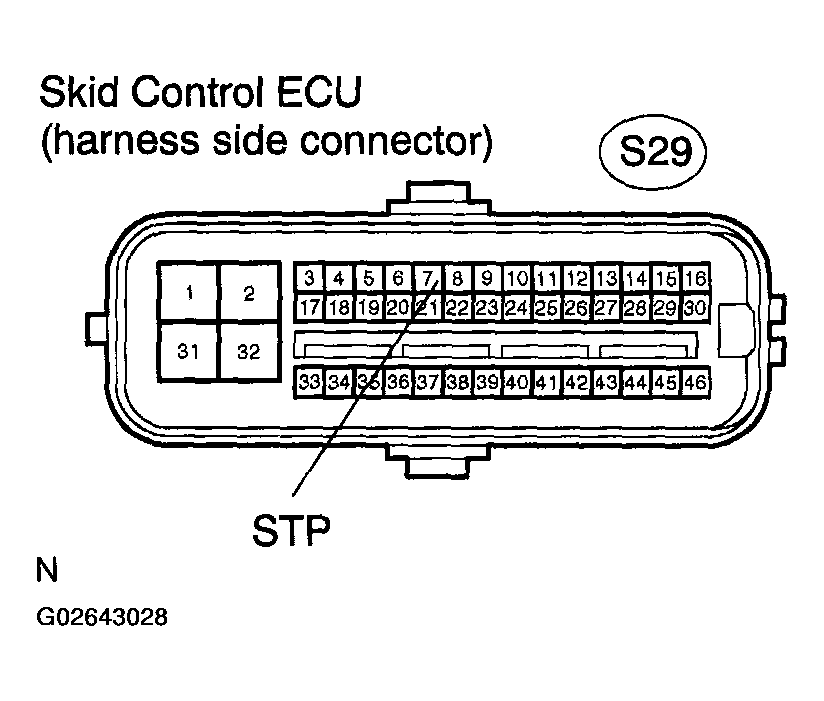

    Fig 1: Identifying skid control ECU connector S29 STP Terminal
    G02643028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    SKID CONTROL ECU CONNECTOR S29 STP TERMINAL VOLTAGE SPECIFICATIONS

    Tester Connection Condition Specified Condition
    S29-7 (STP) - Body ground Brake pedal depressed 8 to 16 V
    S29-7 (STP) - Body ground Brake pedal released Below 1.5 V
    1. NG : Repair or replace harness or connector (STP circuit).
    2. OK : Go to next step.
  3. Check harness and connector (STP to STP2 circuit).

    PREPARATION:

    Disconnect the skid control ECU connector S29.

    CHECK:

    Measure the resistance according to the value(s) in the table below.

    OK:

    SKID CONTROL ECU CONNECTOR S29 RESISTANCE SPECIFICATIONS

    Tester Connection Condition Specified Condition
    S29-7 (STP) - S29-45 (STP2) Always Below 1 Ω

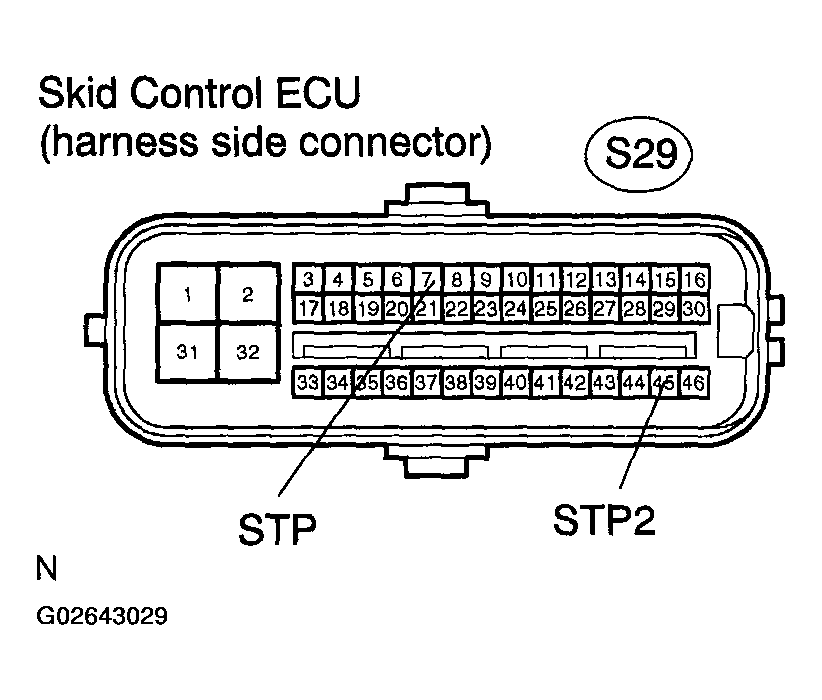

    Fig 2: Identifying Skid Control ECU Connector S29 STP And STP2 Terminal
    G02643029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Repair or replace harness or connector (STP to STP2 circuit).
    2. OK : Go to next step.
  4. Perform ACTIVE TEST by hand-held tester (STOP LIGHT operation relay).

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. Select ACTIVE TEST mode on the hand-held tester.
    ACTIVE TEST MODE REFERENCE

    Item Vehicle Condition/Test Details Diagnostic Note
    STOP LIGHT RELAY Turns stop light relay ON/OFF Observe stop light

    CHECK:

    Check that "ON and OFF" of the stop light can be shown on the rear combination light by the hand-held tester.

    OK:

    The stop light turns on or off in accordance with the hand-held tester.

    1. NG : Go to step   6 .
    2. OK : Go to next step.
  5. Reconfirm DTC (See  DTC CHECK / CLEAR   ).

    PREPARATION:

    Clear the DTCs.

    CHECK:

    Check if the same DTCs are detected.

    RESULT:

    DTC OUTPUT RESULT

    DTC is output A
    DTC is not output B
    1. B : END.
    2. A : Replace master cylinder solenoid (See  DISASSEMBLY  ).
  6. Check stop light relay input voltage.

    PREPARATION:

    Disconnect the stop light relay from stop light relay terminal S31.

    CHECK:

    Measure the voltage according to the values in the table below.

    Fig 3: Identifying Stop Light Relay Terminal S31
    G02643030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    STOP LIGHT RELAY TERMINAL S31 VOLTAGE SPECIFICATIONS

    Tester Connection Condition Specified Condition
    Terminal 5 - Body ground Always 8 to 14 V
    Terminal 1 - Body ground Always 8 to 14 V
    1. NG : Repair or replace harness or connector (stop light relay power source circuit).
    2. OK : Go to next step.
  7. Inspect stop light relay.

    PREPARATION:

    Remove the stop light relay.

    CHECK:

    Measure the resistance according to the value(s) in the table below.

    Fig 4: Inspecting Stop Light Relay
    G02643031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    STOP LIGHT RELAY CONTINUITY CONDITIONS

    Tester Connection Specified Condition
    Terminals 3 and 4 Continuity
    Terminals 3 and 5 No continuity

    PREPARATION:

    Apply battery voltage between terminals 1 (+) and 2 (-).

    CHECK:

    Measure the resistance according to the value(s) in the table below.

    OK:

    STOP LIGHT RELAY CONTINUITY CONDITIONS

    Tester Connection Specified Condition
    Terminals 3 and 4 No continuity
    Terminals 3 and 5 Continuity
    1. NG : Replace stop light relay.
    2. OK : Go to next step.
  8. Measure voltage between master cylinder solenoid (skid control ECU terminal STPO) and body ground.

    PREPARATION:

    1. Disconnect the skid control ECU connector S29.
    2. Turn the ignition switch to the ON position.

    CHECK:

    Measure the voltage according to the value(s) in the table below.

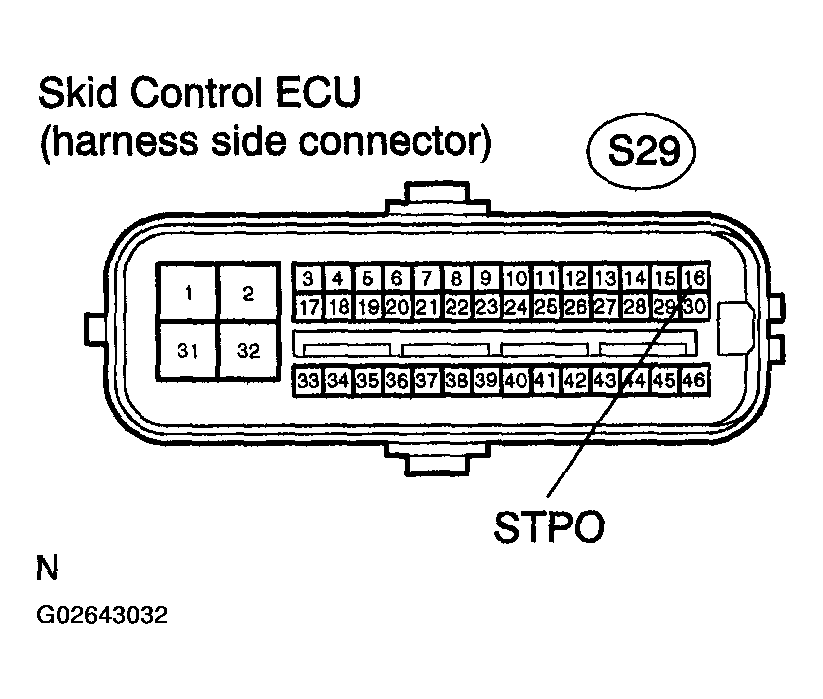

    Fig 5: Identifying Skid Control ECU Terminal STPO
    G02643032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    SKID CONTROL ECU CONNECTOR S29 VOLTAGE SPECIFICATIONS

    Tester Connection Condition Specified Condition
    S29-16 (STPO) - Body ground Brake pedal depressed 10 to 14 V
    1. NG : Repair or replace harness or connector (STPO circuit).
    2. OK : Go to next step.
  9. Reconfirm DTC (See  DTC CHECK / CLEAR   ).

    PREPARATION:

    Clear the DTCs.

    CHECK:

    Check if the same DTCs are detected.

    RESULT:

    DTC OUTPUT RESULT

    DTC is output A
    DTC is not output B
    1. B : END.
    2. A : Replace master cylinder solenoid (See  DISASSEMBLY  ).
  10. Inspect stop light switch (stop light switch power source terminal voltage).

    PREPARATION:

    Disconnect the stop light switch connector S4.

    CHECK:

    Measure the voltage according to the value(s) in the table below.

    Fig 6: Identifying Stop Light Switch Connector S4 (Access Cab, Standard Cab)
    G02643033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Access Cab., Standard Cab.:

    STOP LIGHT SWITCH CONNECTOR S4 VOLTAGE SPECIFICATIONS

    Tester Connection Condition Specified Value
    S4-2 - Body ground Ignition SW ON 10 to 14 V

    OK:

    Double Cab.:

    STOP LIGHT SWITCH CONNECTOR S4 VOLTAGE SPECIFICATIONS

    Tester Connection Switch Condition Specified Value
    S4-4 - Body ground Ignition SW ON 10 to 14 V
    Fig 7: Identifying Stop Light Switch Connector S4 (Double Cab)
    G02643034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Repair or replace harness or connector (Stop light power source circuit).
    2. OK : Go to next step.
  11. Inspect stop light switch.

    PREPARATION:

    Disconnect the stop light switch connector.

    CHECK:

    Measure the resistance according to the value(s) in the table below.

    Fig 8: Inspecting Stop Light Switch (Access Cab, Standard Cab)
    G02643035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Access Cab., Standard Cab.:

    STOP LIGHT SWITCH CONNECTOR CONTINUITY CONDITIONS ACCESS CAB, STANDARD CAB

    Tester Connection Switch Condition Specified Condition
    1 - 2 Free No continuity
    1 - 2 Pushed in Continuity

    OK:

    Double Cab.:

    STOP LIGHT SWITCH CONNECTOR CONTINUITY CONDITIONS DOUBLE CAB

    Tester Connection Switch Condition Specified Condition
    1 - 4 Free No continuity
    1 - 4 Pushed in Continuity
    Fig 9: Inspecting Stop Light Switch (Double Cab)
    G02643036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Replace stop light switch.
    2. OK : Go to next step.
  12. Check for open or short circuit in harness and connector between stop light switch and stop light relay.
    1. NG : Repair or replace harness or connector.
    2. OK : Go to next step.
  13. Inspect stop light relay.

    PREPARATION:

    Remove the stop light relay.

    CHECK:

    Measure the resistance according to the value(s) in the table below.

    OK:

    STOP LIGHT RELAY CONTINUITY CONDITIONS

    Tester Connection Specified Condition
    Terminals 3 and 4 Continuity
    Fig 10: Inspecting Stop Light Relay
    G02643037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Replace stop light relay.
    2. OK : Go to next step.
  14. Check for open or short circuit in harness and connector between stop light relay and stop light.
    1. NG : Repair or replace harness or connector.
    2. OK : Go to next step.
  15. Check stop light as it may have burnt out.
    1. NG : Repair or replace stop light.
    2. OK : END
