Inspection Procedure

HINT:

When C1253/53, C1254/54, or C1256/56 is output together with C1252/52, inspect and repair the trouble area indicated by C1253/53, C1254/54, or C1256/56 first.

1. Check operation of the hydraulic brake booster pump motor.

   PREPARATION:

   1. Turn the ignition switch OFF.
   2. Depress the brake pedal more than 20 times.
   3. Turn the ignition switch to the ON position.

   CHECK:

   Check how the hydraulic brake booster pump motor operates.

   RESULT:

   HYDRAULIC BRAKE BOOSTER PUMP MOTOR OPERATION RESULT



   Pump motor does not operate	A
   Pump motor operates continuously (does not stop)	B
   Pump motor operates intermittently	C
   Pump motor operates, then stops	D

   1. B : Replace master cylinder solenoid and pump motor assembly w/ accumulator assembly (See  DISASSEMBLY  ).
   2. C : Go to step   4 .
   3. D : Go to step   5 .
   4. A : Go to next step.
2. Check connectivity of the brake pump motor wire harness (MT+/MT-).

   PREPARATION:

   Using a screwdriver, remove the 2 plugs from the hydraulic brake booster assembly (see DISASSEMBLY ).

   CHECK:

   Check the tightening torque of the 2 screws which tighten the wire harness connecting the hydraulic brake booster assembly and the brake booster pump (see DISASSEMBLY ).

   OK:

   Torque: 2.9 N.m (30 kgf.cm, 26 in.lbf)

   1. NG : Tighten the screws up, then go to step   5 .
   2. OK : Go to next step.
3. Check resistance of pump motor (MT+/MT-) wire harness.

   PREPARATION:

   Using a screwdriver, remove the 2 screws and pull the wire harness from the hydraulic brake booster assembly (see DISASSEMBLY ).

   CHECK:

   Measure the resistance between the red wire (MT+) and the black wire (MT-).

   OK:

   Resistance: 2 Ω

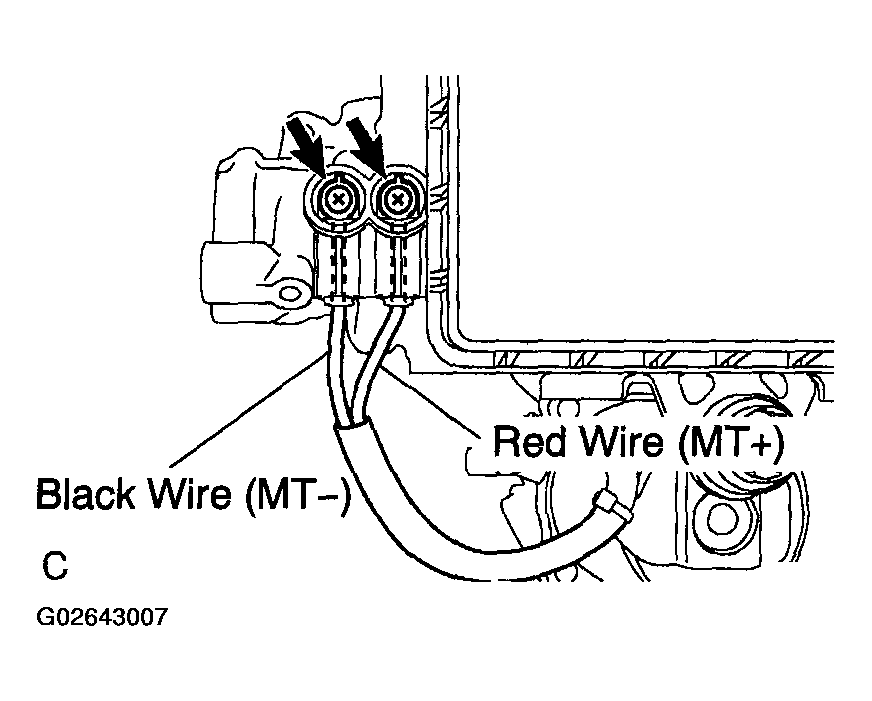

   Fig 1: Identifying Pump Motor (MT+/MT-) Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG : Replace pump motor assembly w/ accumulator (See  DISASSEMBLY  ).
   2. OK : Go to next step.
4. Check internal pressure leak.

   PREPARATION:

   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to the ON position.
   3. Select the DATA LIST mode on the hand-held tester.
   DATA LIST MODE REFERENCE



   Item	Measurement Item/Range (Display)	Normal Condition	Diagnostic Note
   ACC PRESS	Accumulator Sensor/ min.: 0 V, max.: 5 V	3.58 V to 5 V	If the value is constant regardless of pump operation, accumulator pressure sensor malfunction is suspected.

   CHECK:

   Check that the accumulator output is normal.

   RESULT:

   ACCUMULATOR OUTPUT RESULT



   Output value is within the "Normal Condition" range	A
   Output value is out of the "Normal Condition" range	B
   Output value is constant regardless of pump motor operation	C

   1. B : Replace hydraulic brake booster (See  REMOVAL  ).
   2. C : Replace master cylinder solenoid and pump motor assembly w/ accumulator assembly (See  DISASSEMBLY  ).
   3. A : Go to next step.
5. Reconfirm DTC (See  DTC CHECK / CLEAR   ).

   PREPARATION:

   1. Clear the DTCs.
   2. Turn the ignition switch OFF.
   3. Turn the ignition switch to the ON position.
   4. Wait for more than 5 minutes.

   CHECK:

   Check if the same DTCs are detected.

   RESULT:

   DTC OUTPUT RESULT



   DTC is output	A
   DTC is not output	B

   1. B : Replace pump motor assembly w/ accumulator assembly (See  DISASSEMBLY  ).
   2. A : Replace master cylinder solenoid and pump motor assembly w/ accumulator assembly (See  DISASSEMBLY  ).
