Master Cylinder
NOTE:
There are separate brake master cylinder overhaul procedures for Tundra with double cab. See MASTER CYLINDER (DOUBLE CAB) .
NOTE:
When overhauling master cylinder, if cylinder bore is pitted or scored beyond repair after lightly honing, replace entire assembly.

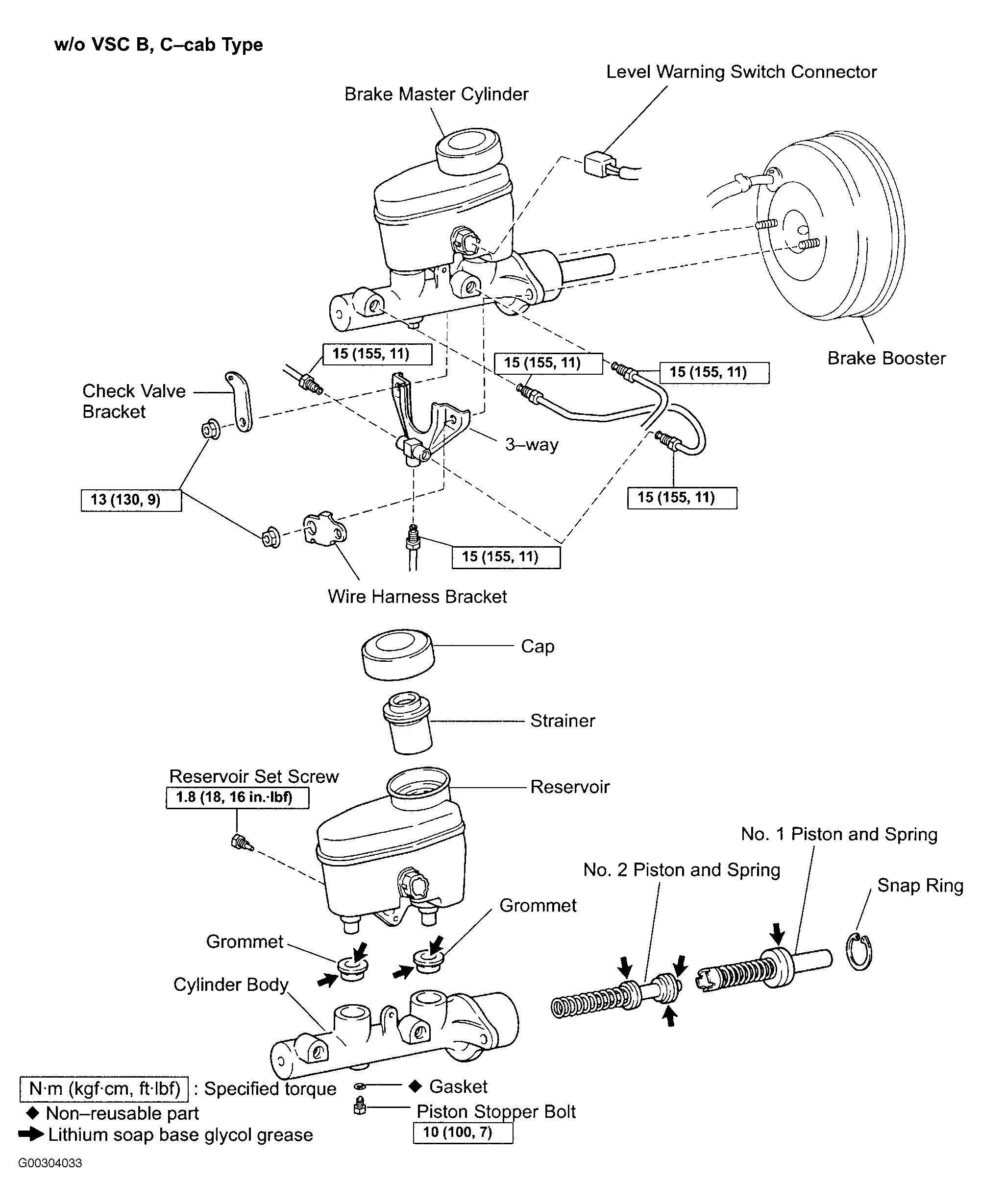

For removal and installation procedure, see MASTER CYLINDER in REMOVAL & INSTALLATION. For overhaul of master cylinder assembly, see Fig 1. For component view, see Fig 2.
