Master Cylinder (Double Cab)

For removal and installation procedure, see MASTER CYLINDER (DOUBLE CAB)  in REMOVAL & INSTALLATION. For overhaul of master cylinder assembly, see Fig 1. For component view, see Fig 2.

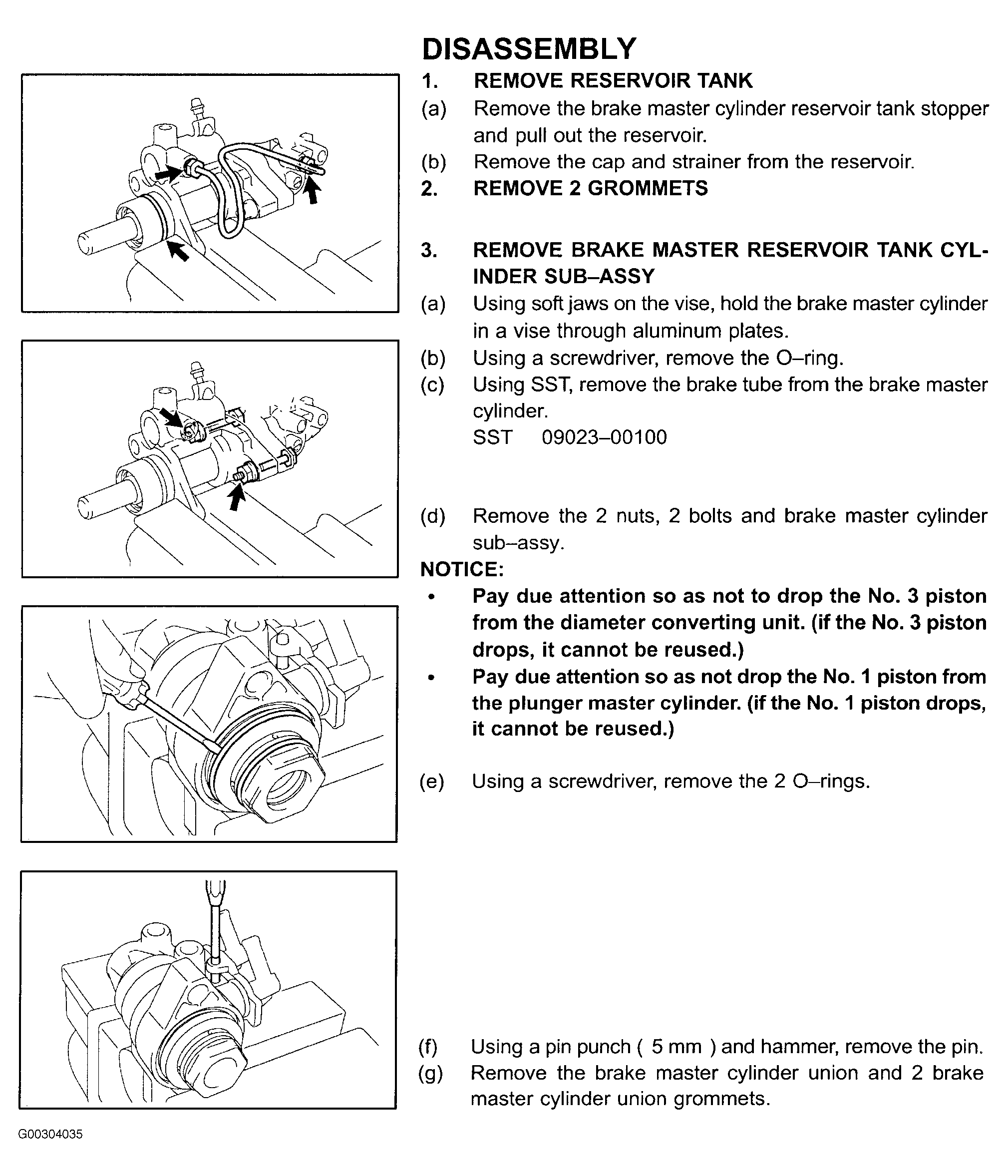

Fig 1: Brake Master Cylinder Overhaul Procedure (Double Cab)
G00304035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

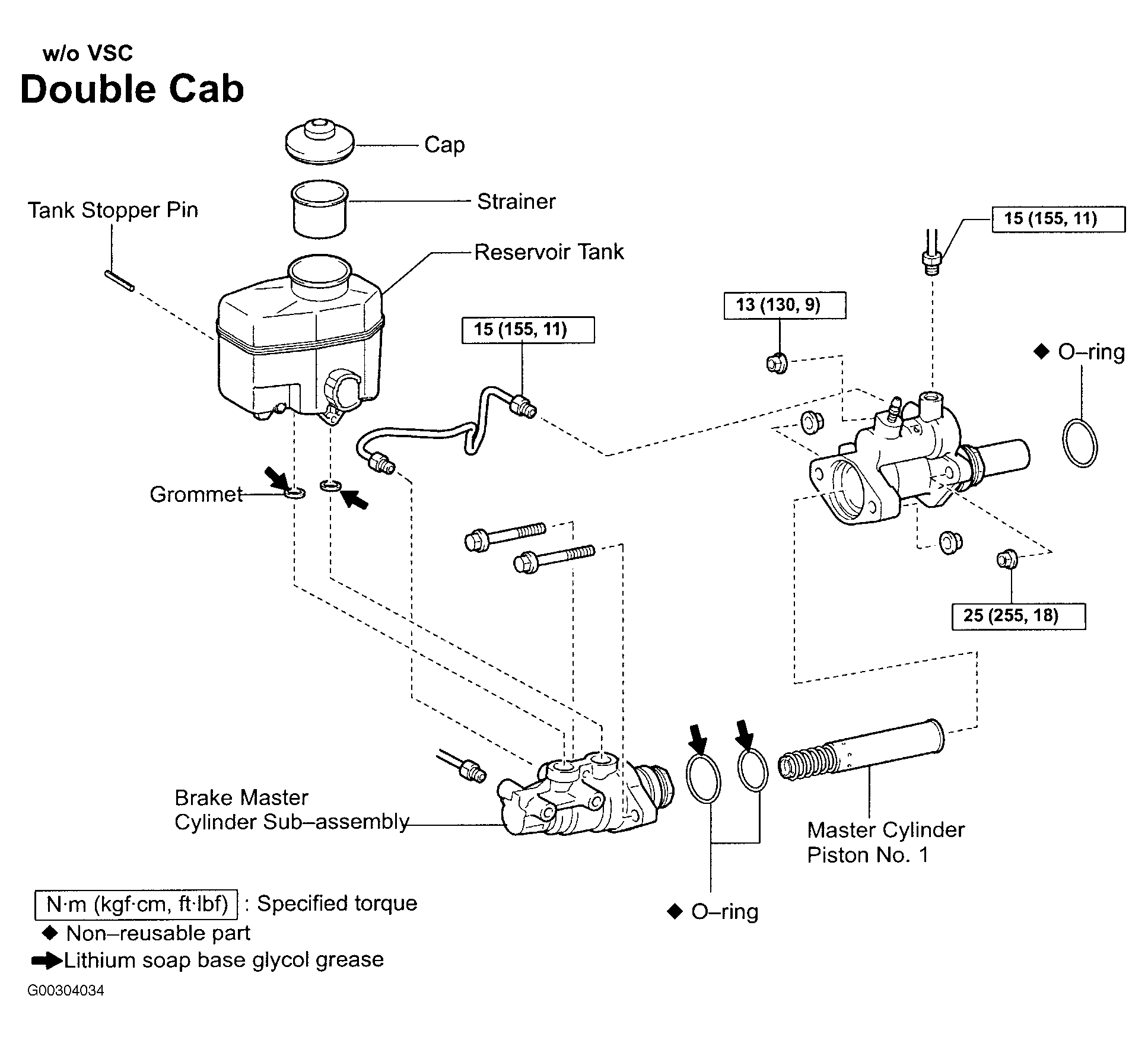

Fig 2: Exploded View Of Brake Master Cylinder Components (Double Cab)
G00304034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
