Rear Brake Caliper

Remove caliper. See REAR BRAKE CALIPER  in REMOVAL & INSTALLATION. For overhaul procedure, see . For component view, see . Fill and bleed system. Check for leaks and adjust pedal, if needed.

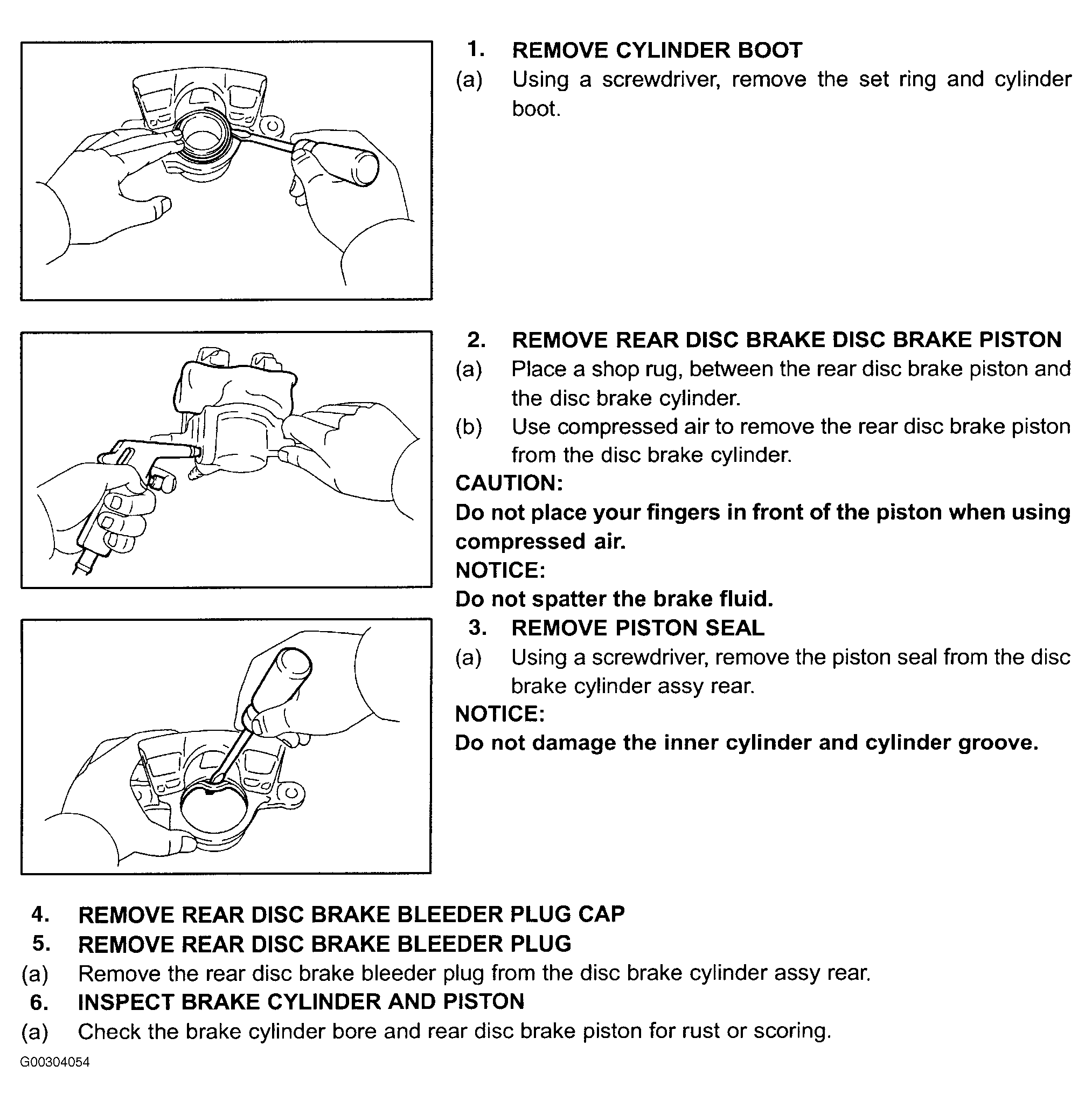

Fig 1: Rear Brake Caliper Overhaul Procedure (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

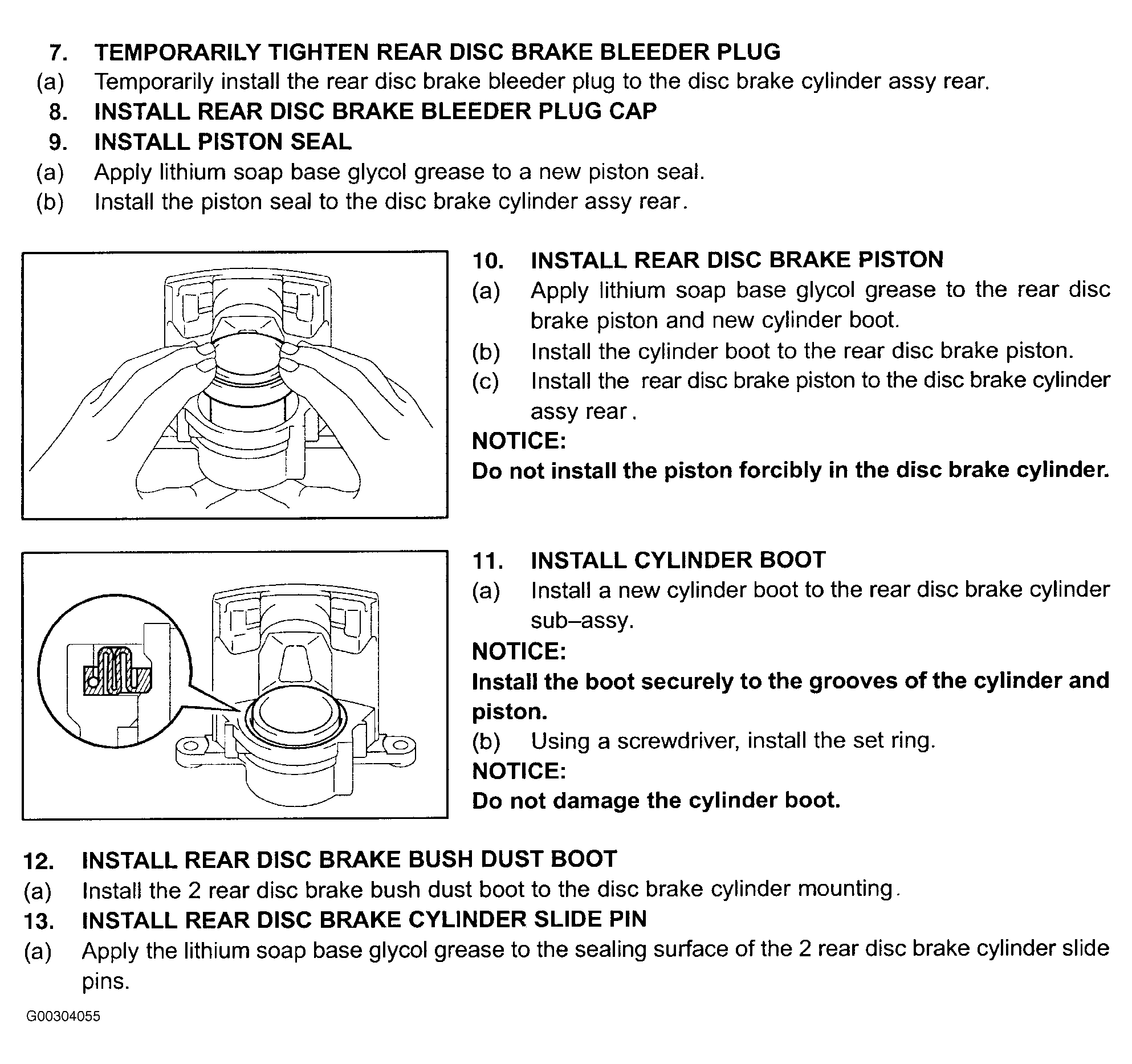

Fig 2: Rear Brake Caliper Overhaul Procedure (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
