Rear Brake Caliper

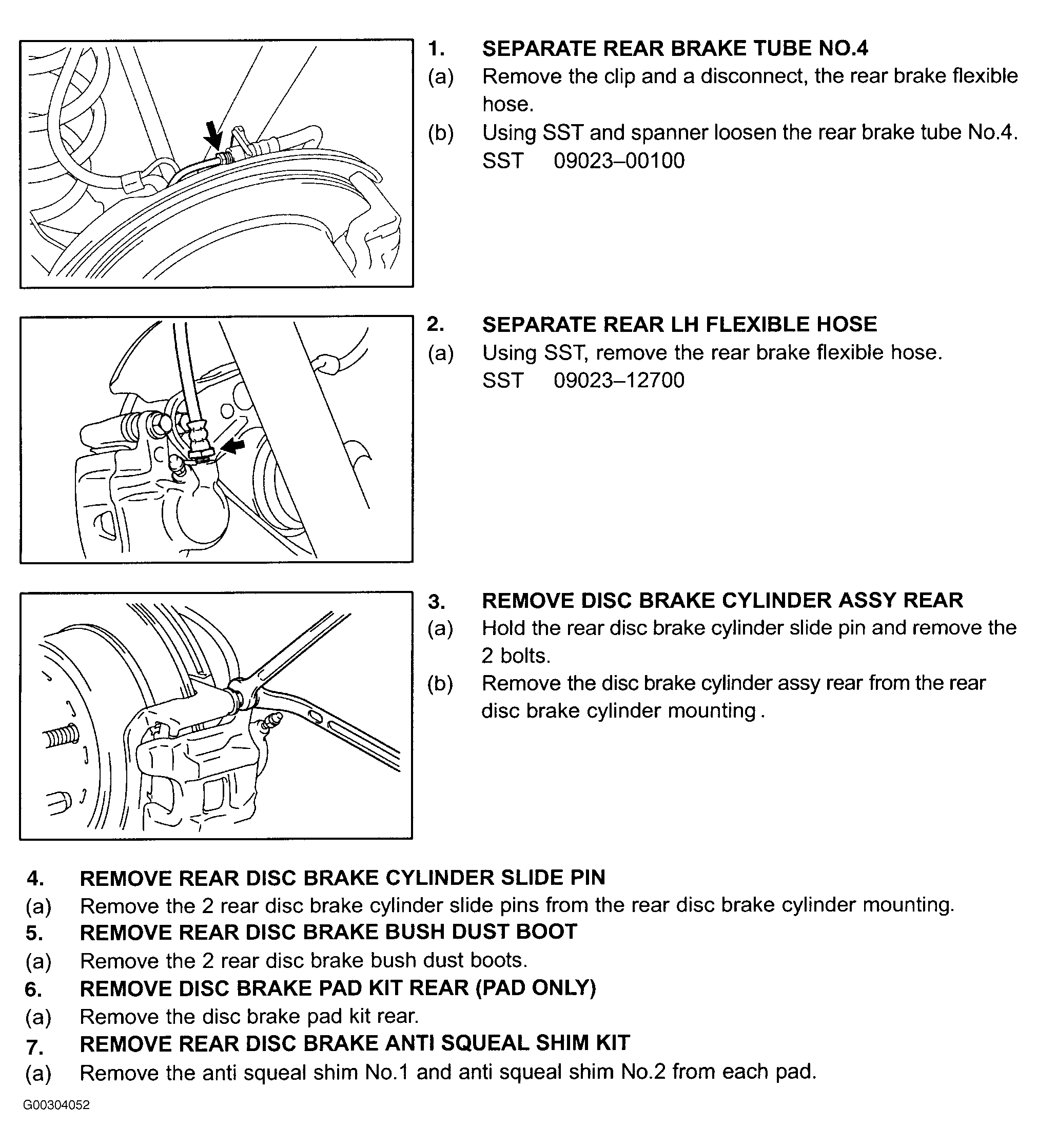

Raise and support vehicle. Remove rear wheel. For removal procedure, see Fig 1. To install, reverse removal procedure. Tighten bolts and nut to specifications. See TORQUE SPECIFICATIONS . Bleed system. See BLEEDING BRAKE SYSTEM .
Raise and support vehicle. Remove rear wheel. For removal procedure, see Fig 1. To install, reverse removal procedure. Tighten bolts and nut to specifications. See TORQUE SPECIFICATIONS . Bleed system. See BLEEDING BRAKE SYSTEM .
