Brake Stroke Simulator Cylinder Sub-Assembly
WARNING:
Read service precautions before proceeding with any service procedure. See SERVICE PRECAUTIONS .

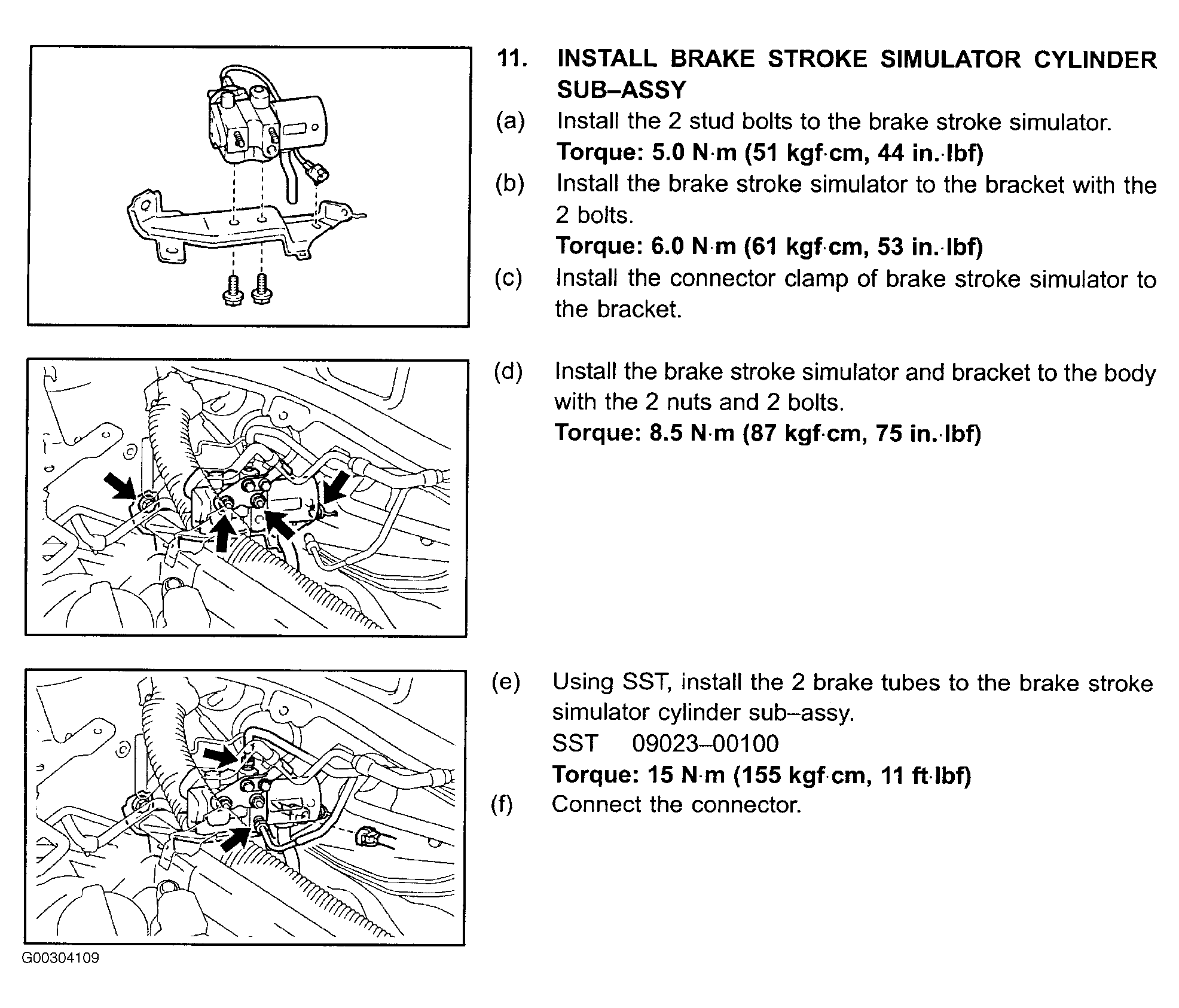

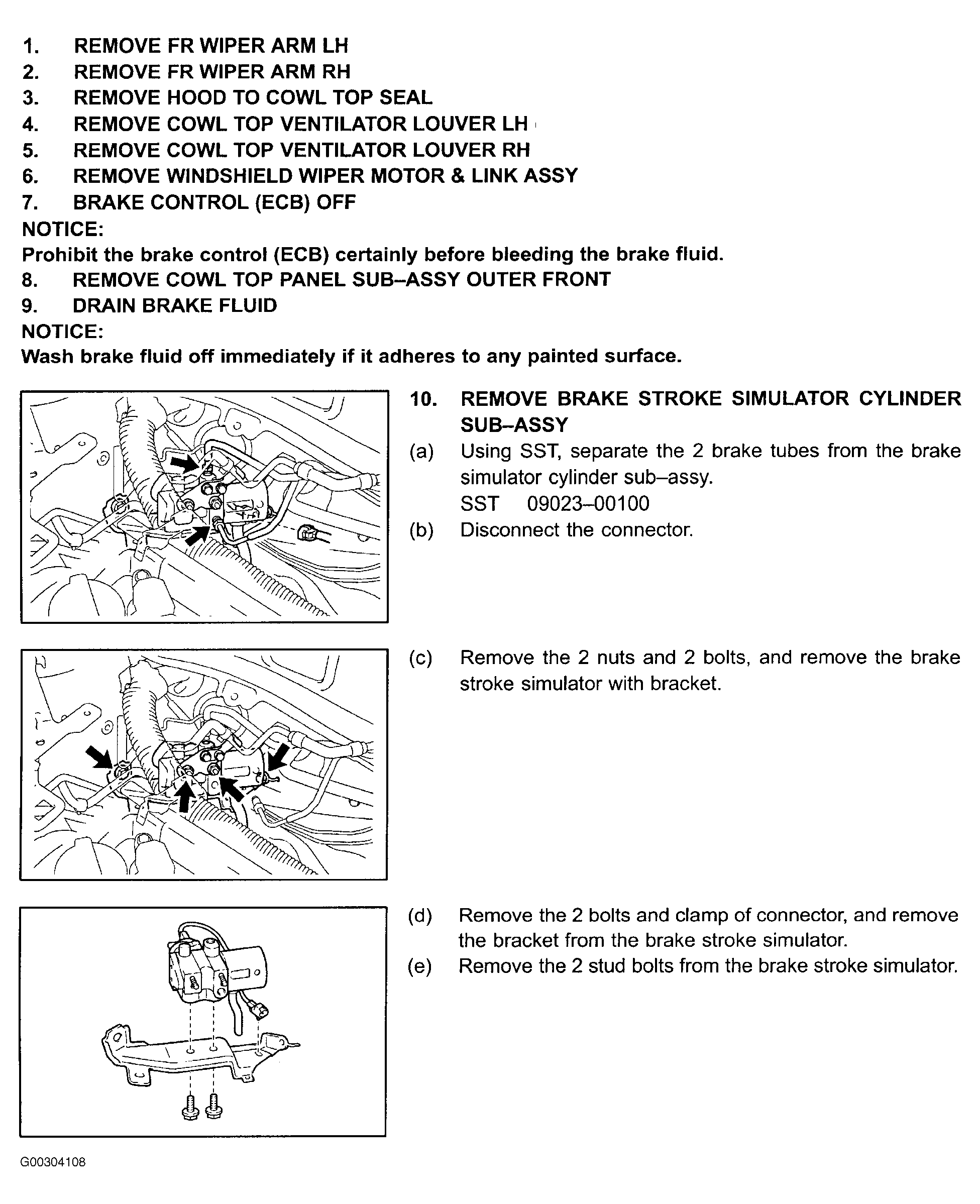

For removal and installation procedure, see Fig 1 and Fig 2 . For component view, see Figure. To complete installation, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Bleed brake system. See BLEEDING BRAKE SYSTEM . Check reservoir fluid level. Clear DTC. Perform calibration and initialization procedure, see ELECTRONICALLY CONTROLLED BRAKE SYSTEM CALIBRATION & INITIALIZATION .
