Timing Gear Case Or Timing Chain Case Oil Seal (2AZ-FE): Replacement

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT WHEEL RH
REMOVE FRONT FENDER SPLASH SHIELD FRONT RH
REMOVE FRONT FENDER APRON SEAL RH
REMOVE ENGINE COVER SUB-ASSY NO.1
REMOVE ENGINE MOUNTING STAY NO.2 RH
REMOVE ENGINE MOVING CONTROL ROD W/BRACKET (See REPLACEMENT )
REMOVE ENGINE MOUNTING STAY NO.2 RH
REMOVE ENGINE MOUNTING BRACKET NO.2 RH
REMOVE FAN AND GENERATOR V BELT (See FAN AND GENERATOR V BELT (2AZ-FE) )
REMOVE CRANKSHAFT PULLEY (See OVERHAUL )
REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
1. Using SST, remove the oil seal.
  1. SST 09308-10010, 09950-60010 (09951-00200)

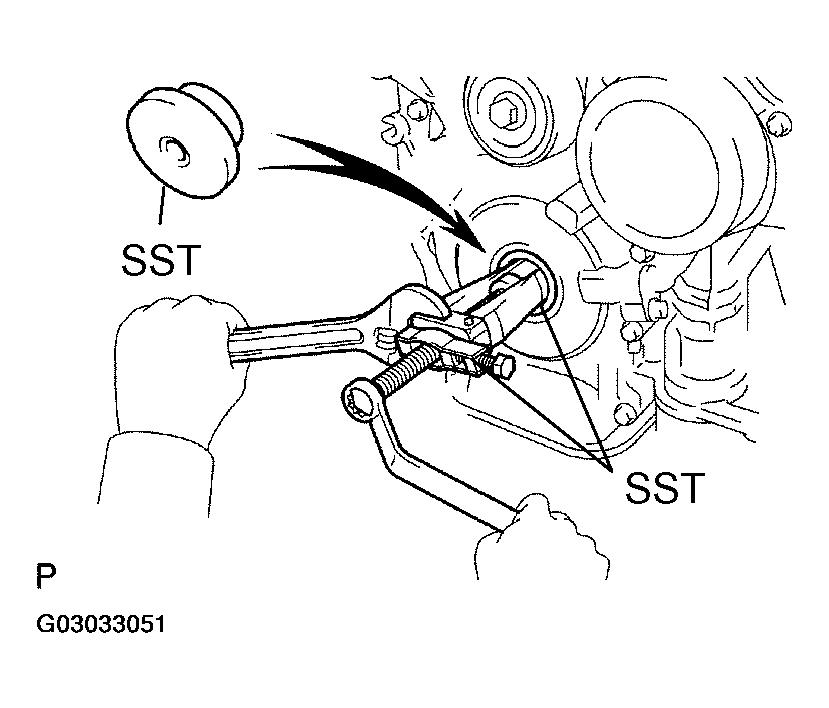

Fig 1: Removing Timing Chain Case Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
1. Apply MP grease to a new oil seal lip.
NOTE: Keep the lip free from a foreign matter.

Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
1. SST 09223-22010
NOTE: Wipe off extra grease from the crankshaft.

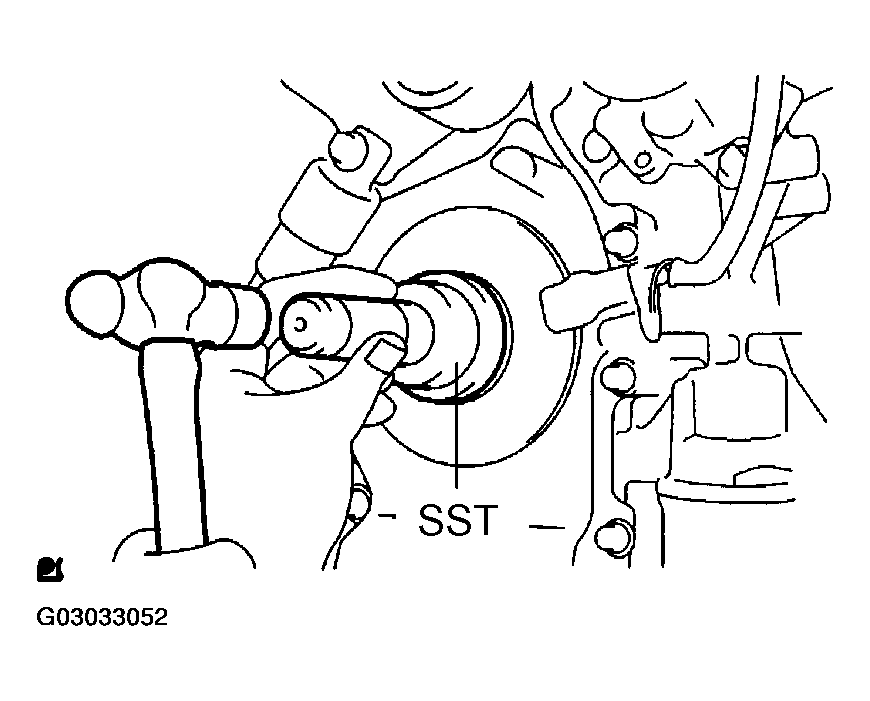

Fig 2: Installing Chain Case Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT PULLEY (See OVERHAUL )
INSTALL FAN AND GENERATOR V BELT (See FAN AND GENERATOR V BELT (2AZ-FE) )
1. Torque: 52 N.m (531 kgf.cm, 38 ft.lbf)
INSTALL ENGINE MOUNTING BRACKET NO.2 RH
1. Torque: 52 N.m (531 kgf.cm, 38 ft.lbf)
INSTALL ENGINE MOUNTING STAY NO.2 RH
1. Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)
INSTALL ENGINE MOVING CONTROL ROD W/BRACKET (See REPLACEMENT )
INSTALL FRONT WHEEL RH
CHECK FOR ENGINE OIL LEAKS
