Partial Engine Assembly, Intake Manifold, Exhaust Manifold (2AZ-FE): Replacement

WARNING: This page is about a different variant/trim than selected.

WORK FOR PREVENTING GASOLINE FROM SPILLING OUT
REMOVE FRONT WHEEL
REMOVE ENGINE UNDER COVER NO.1
REMOVE FRONT FENDER SPLASH SHIELD FRONT RH
REMOVE FRONT FENDER SPLASH SHIELD FRONT LH
REMOVE FRONT FENDER APRON SEAL RH
DRAIN COOLANT (See REPLACEMENT )
DRAIN AUTOMATIC TRANSAXLE FLUID
1. Using a 10 mm hexagon wrench, remove the drain plug and gasket. Drain automatic transaxle fluid.
2. Install a new gasket and the drain plug.
  1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
DRAIN TRANSFER OIL (4WD TYPE)
REMOVE BATTERY
REMOVE AIR CLEANER ASSY
DISCONNECT RADIATOR HOSE INLET
DISCONNECT RADIATOR HOSE OUTLET
DISCONNECT OIL COOLER INLET HOSE
DISCONNECT OIL COOLER OUTLET HOSE
REMOVE ENGINE MOUNTING STAY NO.2 RH
REMOVE ENGINE MOVING CONTROL ROD W/B RACKET
1. Remove the 3 bolts and engine moving control rod.

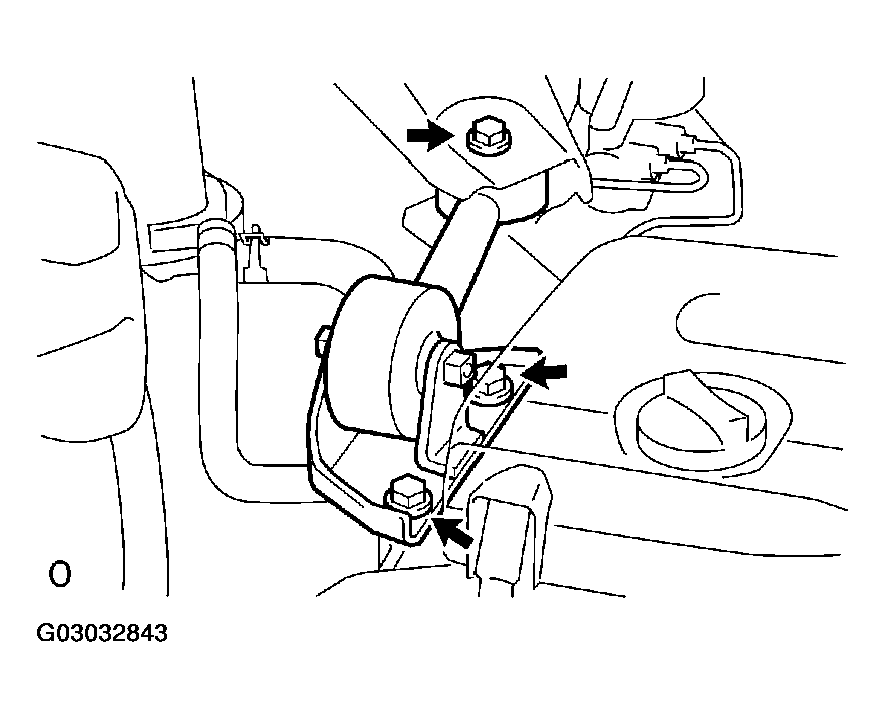

Fig 1: Removing Engine Moving Control Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE MOUNTING BRACKET NO.2 RH
REMOVE FAN AND GENERATOR V BELT (See FAN AND GENERATOR V BELT (2AZ-FE) )
DISCONNECT VANE PUMP OIL RESERVOIR ASSY
DISCONNECT RETURN TUBE SUB-ASSY
1. Remove the 2 bolts and disconnect the return tube.

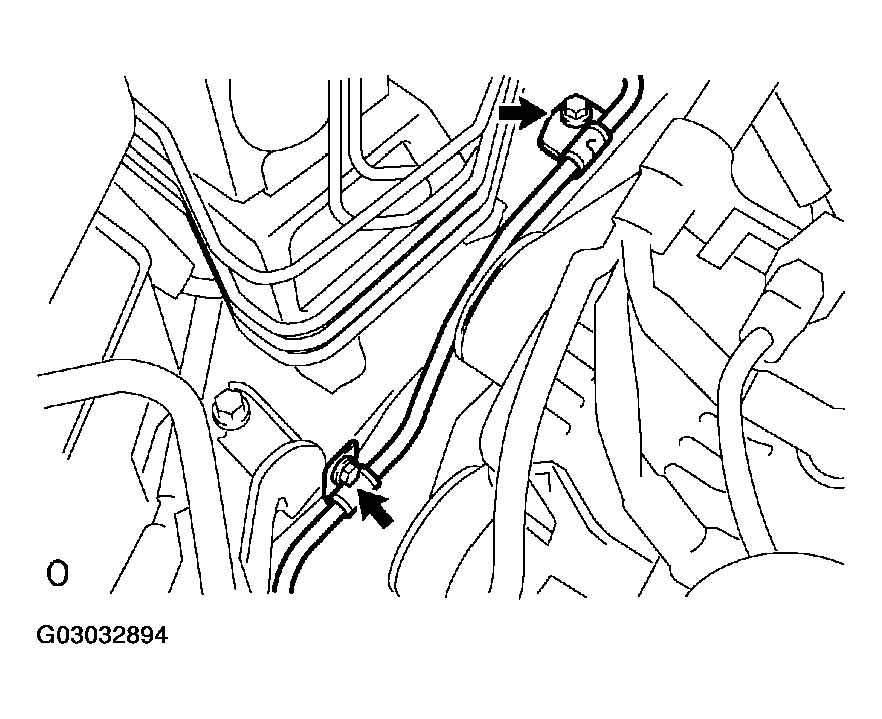

Fig 2: Disconnecting Return Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT UNION TO CHECK VALVE HOSE
DISCONNECT TRANSMISSION CONTROL CABLE ASSY (See REPLACEMENT )
DISCONNECT HEATER INLET WATER HOSE
DISCONNECT HEATER OUTLET WATER HOSE
DISCONNECT FUEL TUBE SUB-ASSY
DISCONNECT ENGINE ROOM MAIN WIRE
1. Disconnect the engine wire from the ECM and J/B.
2. Disconnect the engine wire from the engine room J/B.
  1. Remove the nut fixing the wire harness.
  2. Using a screwdriver, unlock the engine room J/B. Disconnect the engine wire by pulling it upward.
  3. Disconnect the connectors.
  4. Remove the body ground.

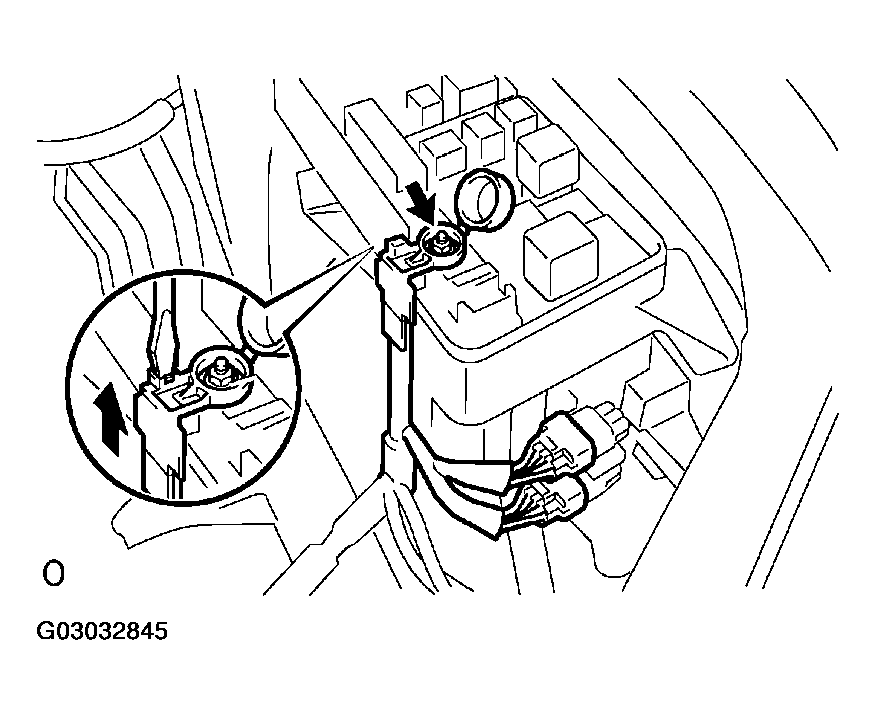

Fig 3: Disconnecting Engine Wire From Engine Room J/B
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EXHAUST PIPE ASSY FRONT (See REPLACEMENT )
REMOVE PROPELLER SHAFT (4WD TYPE)
1. Place the matchmarks on both of the flanges.
2. Remove the 4 nuts, 4 bolts and 4 washers.

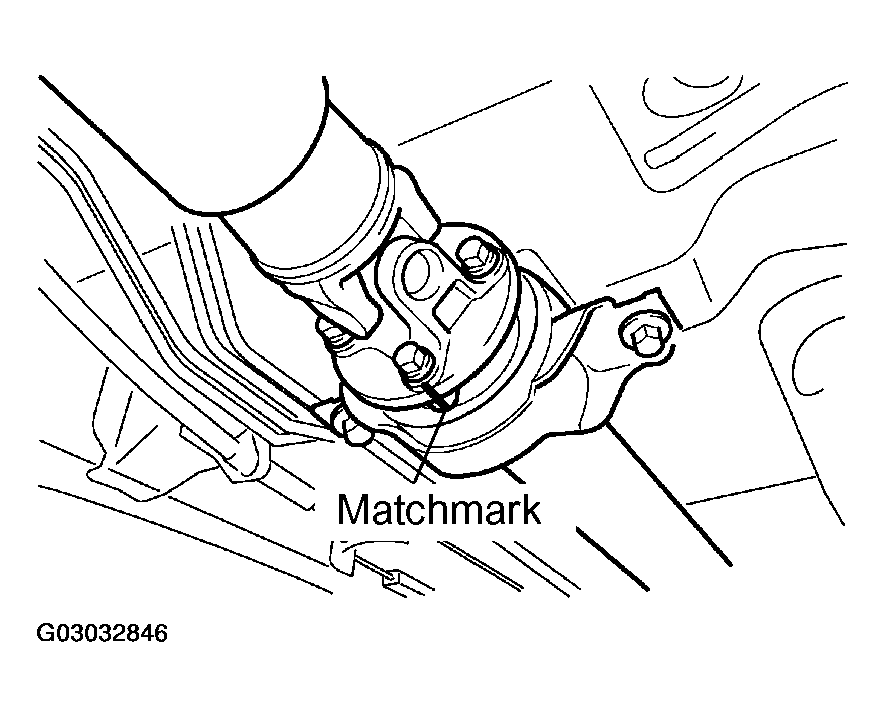

  Fig 4: Placing Matchmarks On Both Of Flanges
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Insert SST after removing the propeller shaft.
  1. SST 09325-20010

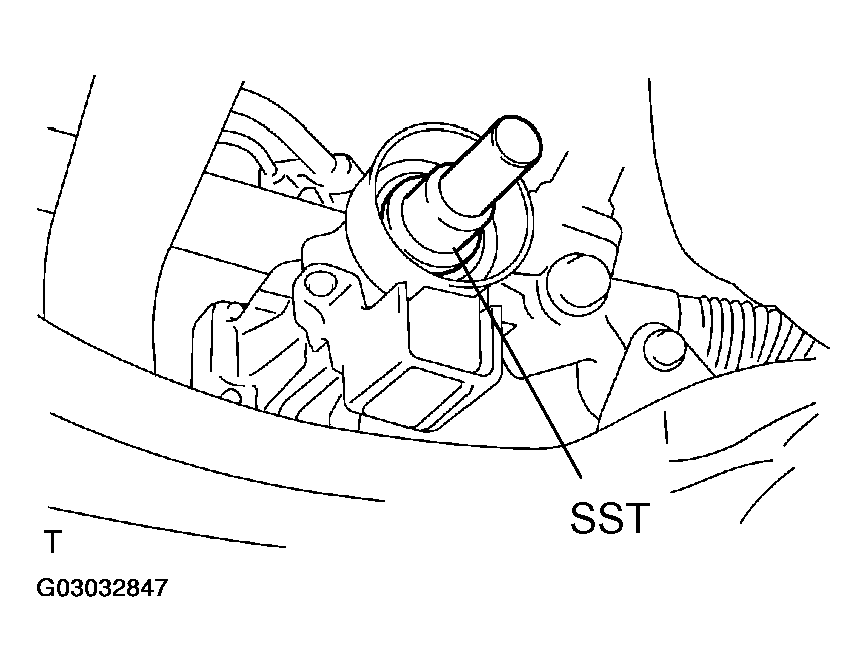

Fig 5: Removing Propeller Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT STABILIZER LINK ASSY LH
1. Using a 6 mm socket hexagon wrench, fix the stud bolt.
2. Remove the nut and disconnect the stabilizer link.
REMOVE FRONT STABILIZER LINK ASSY RH
HINT:

Use the same procedures described for the LH side.
REMOVE FRONT AXLE HUB RH NUT
1. Using SST and a hammer, strike the lock nut covering to remove it.
  1. SST 09930-00010
  NOTE:
  - Set the drive shaft's groove so that it faces up. Then use the SST and a hammer.
  - Remove the covering from the lock nut completely or the screw of the drive shaft may be damaged.
  - Do not sharpen the tip of the SST.
2. Using a 30 mm socket wrench, remove the lock nut.

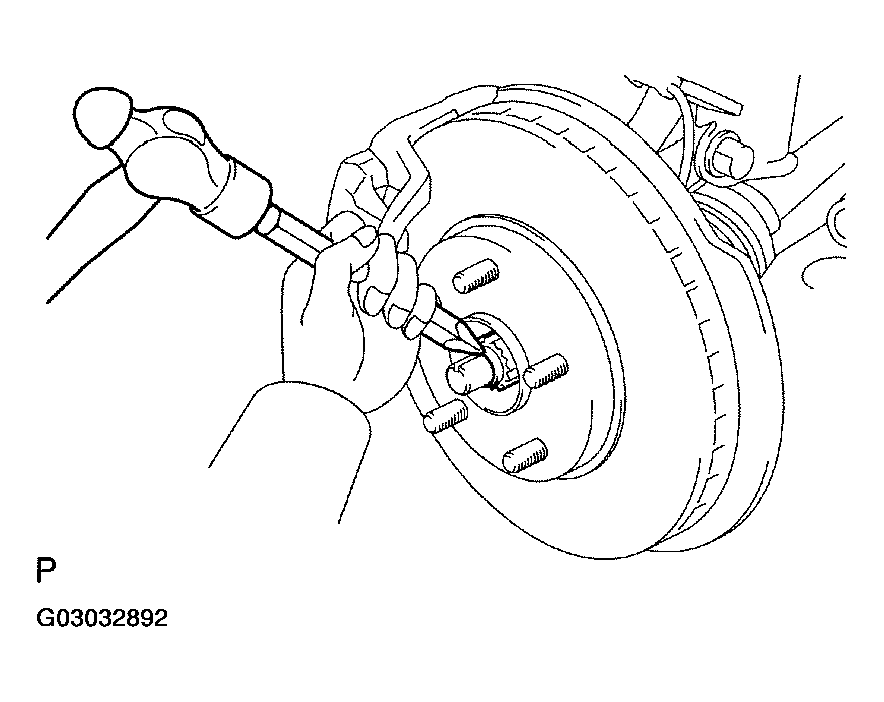

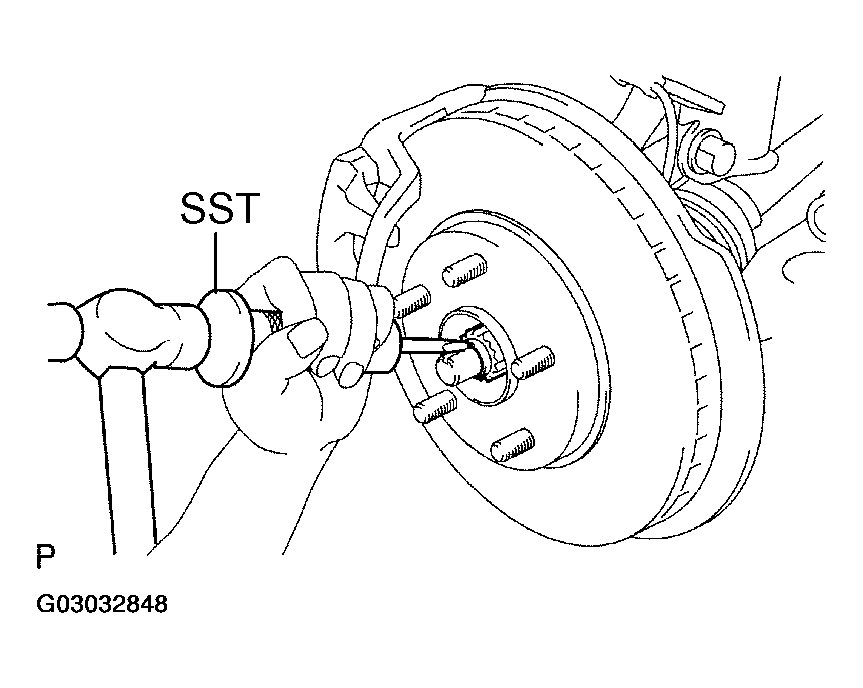

Fig 6: Removing Front Axle Hub RH Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT AXLE HUB LH NUT
HINT:

Use the same procedures described for the LH side.
DISCONNECT SPEED SENSOR FRONT LH
1. Remove the bolt and disconnect the speed sensor from the steering knuckle.
NOTE: Keep the speed sensor tip and connection free from a foreign matter.
DISCONNECT SPEED SENSOR FRONT RH
HINT:

Use the same procedures described for the LH side.
DISCONNECT TIE ROD ASSY LH
1. Remove the cotter pin and castle nut.
2. Using SST, disconnect the tie rod end from the steering knuckle.
  1. SST 09628-6201 1
NOTE: Be careful not to damage the cover of the ball joint.

Fig 7: Disconnecting Tie Rod End From Steering Knuckle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TIE ROD ASSY RH
HINT:

Use the same procedures described for the LH side.
DISCONNECT FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH
1. Fix the crankshaft and remove the 6 setting bolts.

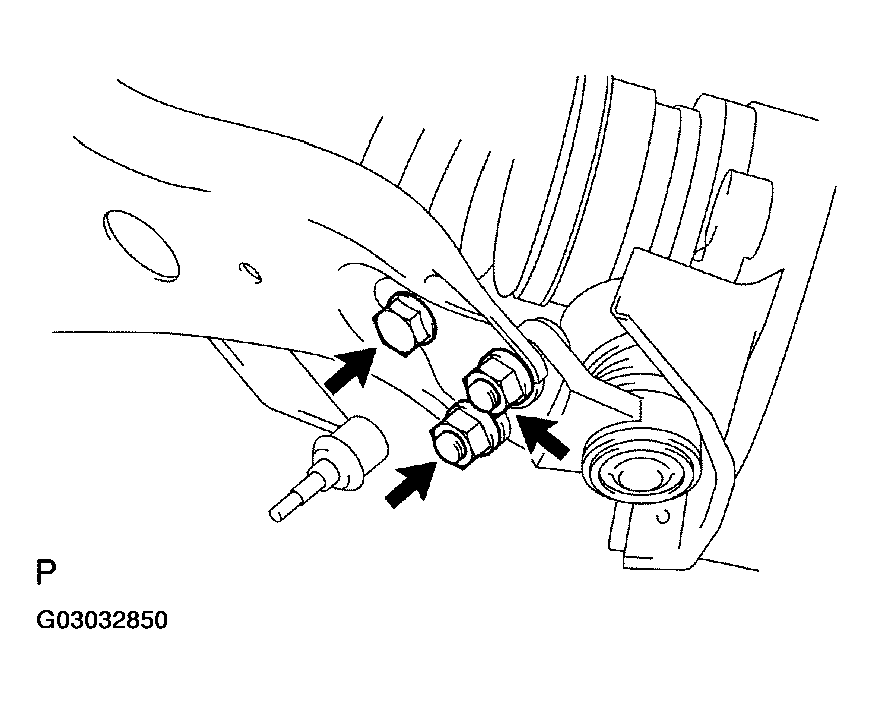

Fig 8: Removing Front Suspension Arm Sub-Assy LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 RH
HINT:

Use the same procedures described for the LH side.
REMOVE DRIVE PLATE & TORQUE CONVERTER CLUTCH SETTING BOLT
1. Fix the crankshaft and remove the 6 setting bolts.
Fig 9: Removing Torque Converter Clutch Setting Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT STEERING INTERMEDIATE SHAFT SUB-ASSY
1. Loosen the sliding yoke bolt.

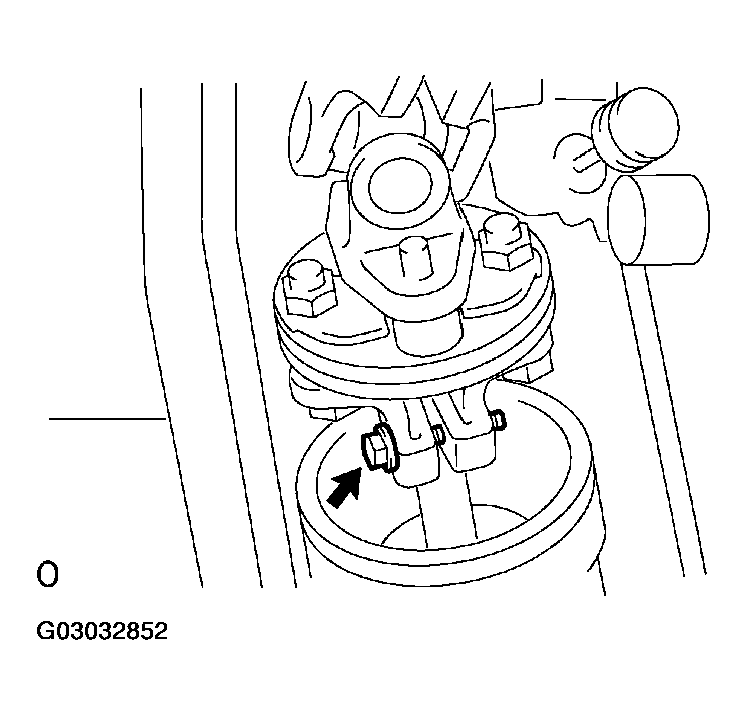

  Fig 10: Loosening Sliding Yoke Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

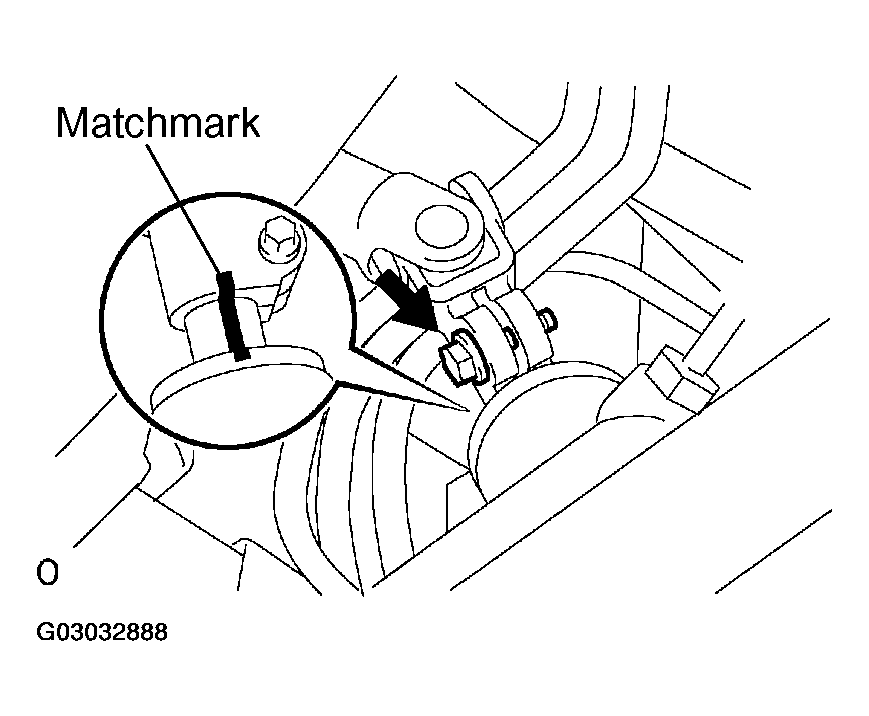

2. Place matchmarks on the intermediate shaft and control valve shaft.
3. Remove the bolt and the steering intermediate shaft.

  Fig 11: Placing Matchmarks On Intermediate Shaft And Control Valve Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. To prevent the steering wheel from rotating, fix the wheel with the seat belt.
NOTE: If the steering wheel is not fixed, the spiral cable will be damaged.

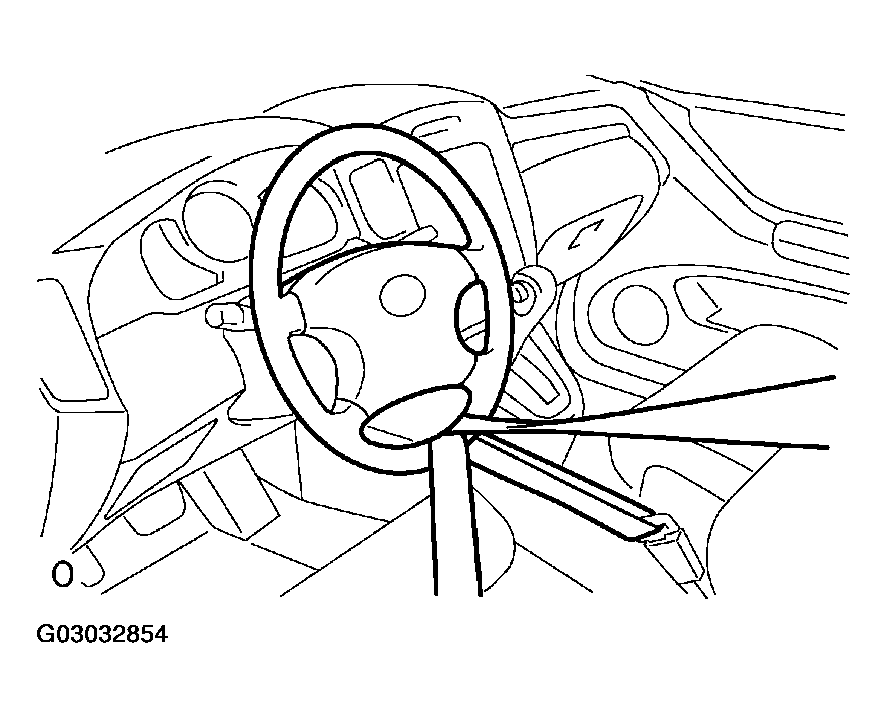

Fig 12: Fixing Steering Wheel With Seat Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT COMPRESSOR AND MAGNETIC CLUTCH
HINT:

Hung up the hoses instead of detaching.

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

Set the engine lifter.

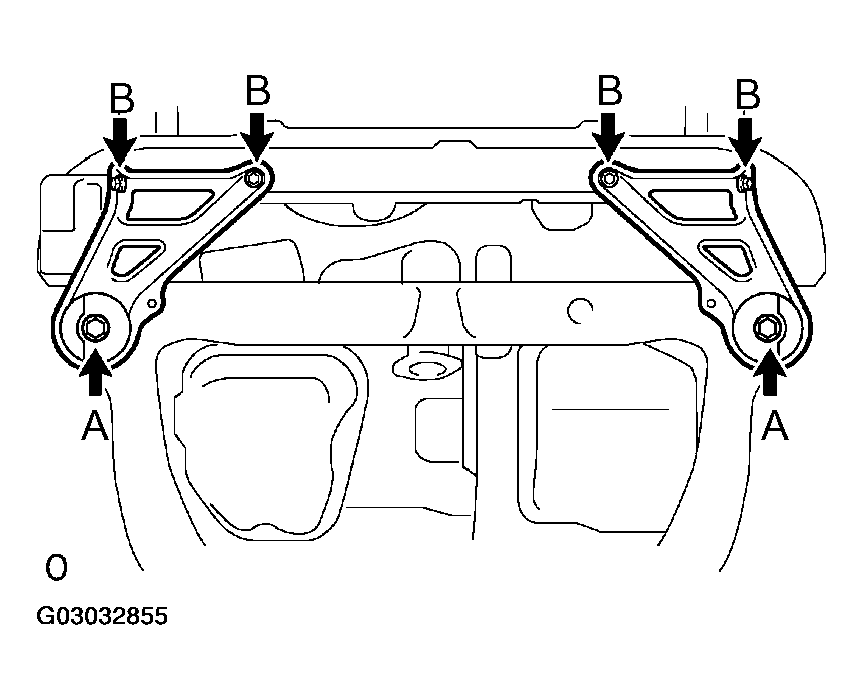

Remove the 6 bolts and frame side rail plate RH and LH.

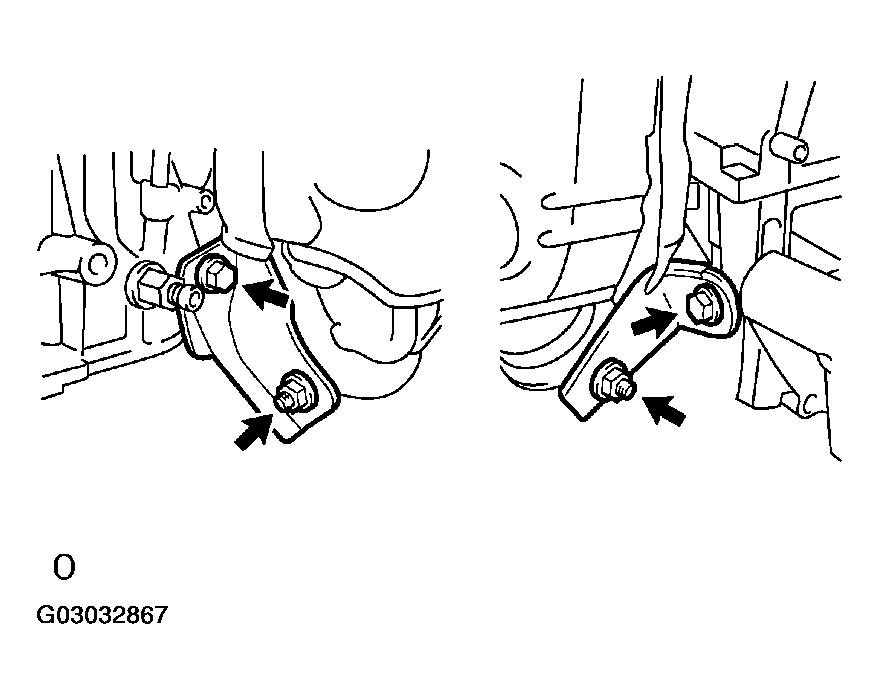

Fig 13: Removing Frame Side Rail Plate RH And LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 6 bolts and front suspension member brace rear RH and LH.
Carefully remove the engine assembly from the vehicle.

Fig 14: Removing Front Suspension Member Brace Rear RH And LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the 2 engine hangers as shown in the illustration.

Parts No.:

ENGINE HANGER NUMBER SPECIFICATION

Engine hanger No. 1	12281-28010
Engine hanger No. 2	12282-28010
Bolt	91512-61020

Torque: 38 N.m (387 kgf.cm, 28 ft.lbf)

Using a chain block and an engine sling device, hang the engine assembly.

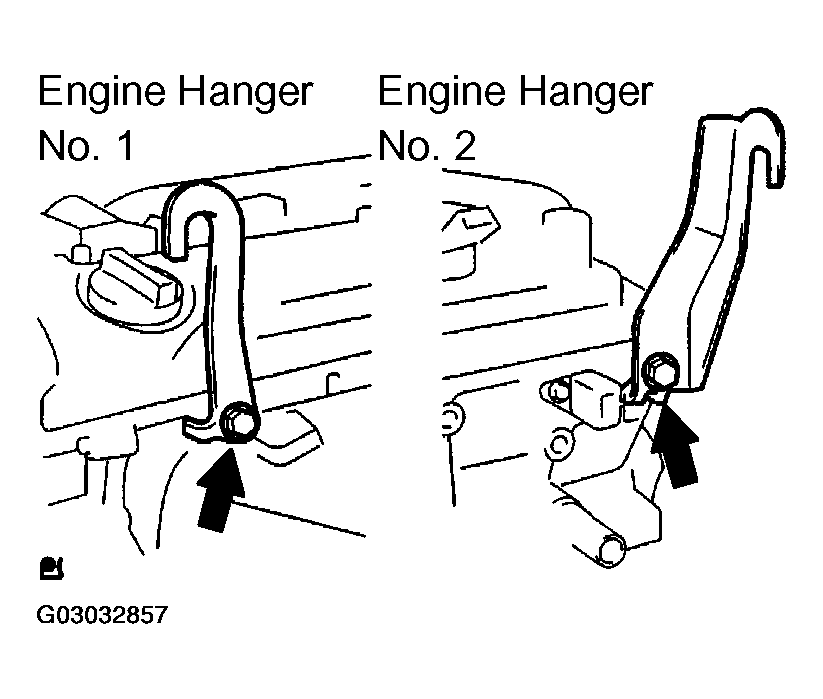

Fig 15: Installing Engine Hangers

REMOVE VANE PUMP ASSY
1. Disconnect the PS oil pressure switch connector.
2. Remove the 2 bolts and vane pump from the engine.

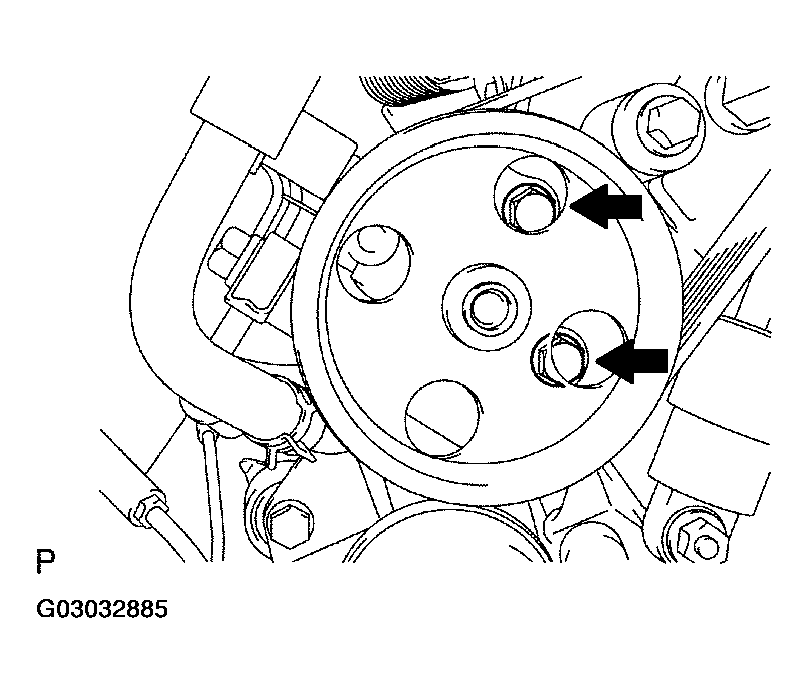

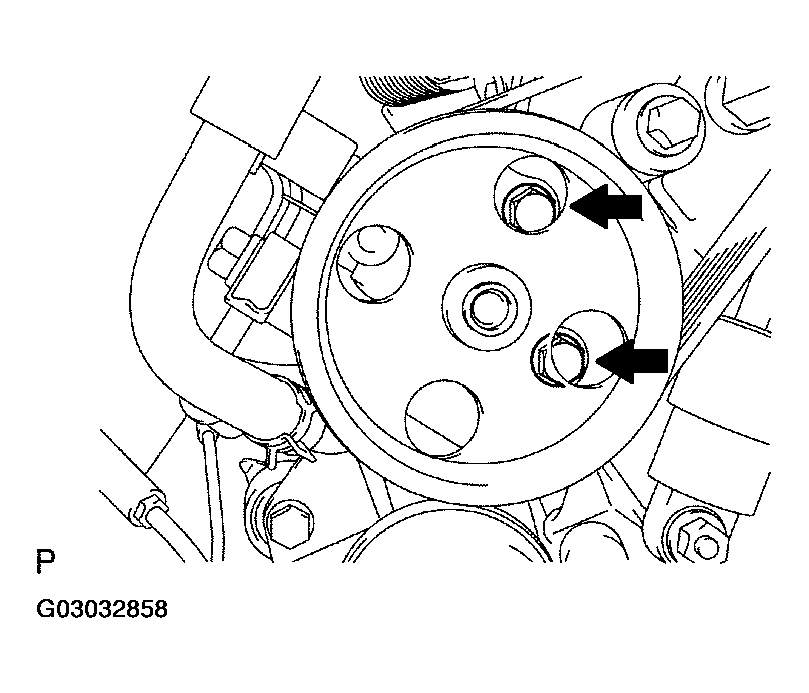

Fig 16: Removing Vane Pump From Engine
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STABILIZER BAR FRONT (4WD TYPE)
REMOVE RACK & PINION POWER STEERING GEAR ASSY (4WD TYPE)
REMOVE FRONT FRAME ASSY

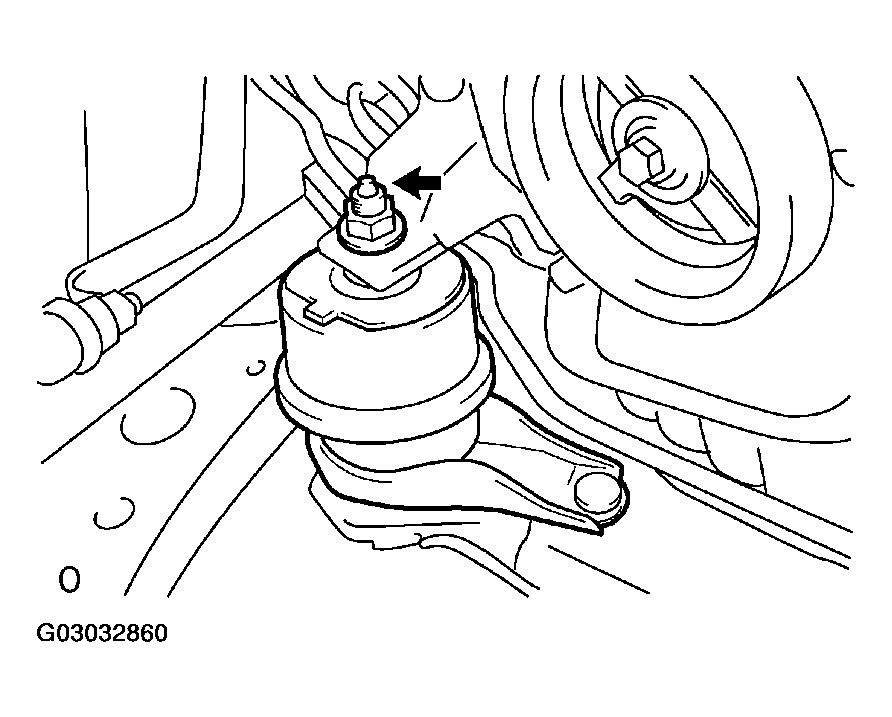

1. Remove the nut installing the engine mounting insulator LH.

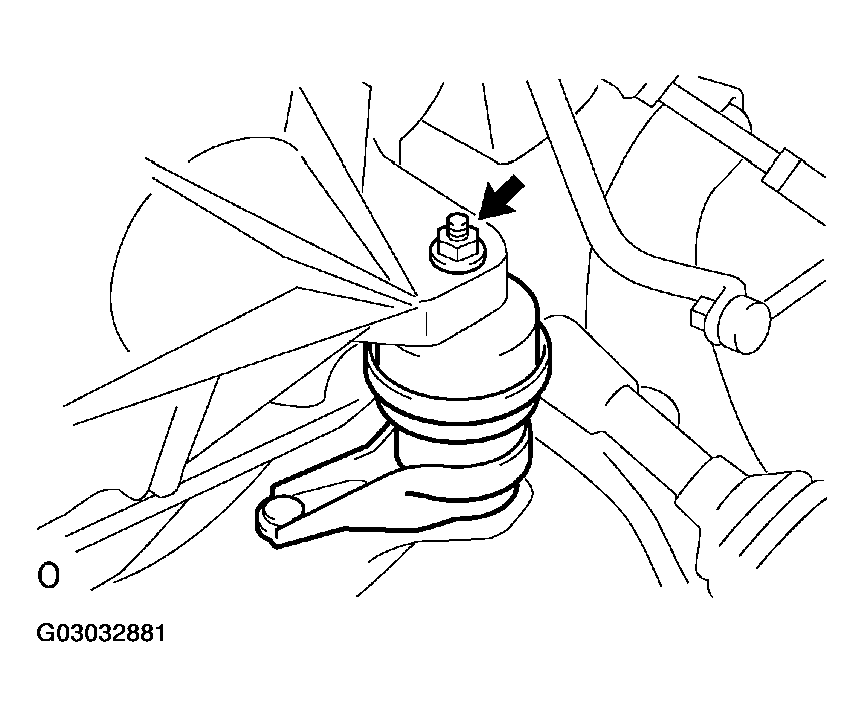

  Fig 17: Removing Engine Mounting Insulator LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut installing the engine mounting insulator RH.

  Fig 18: Removing Engine Mounting Insulator RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the nut installing the engine mounting insulator FR.

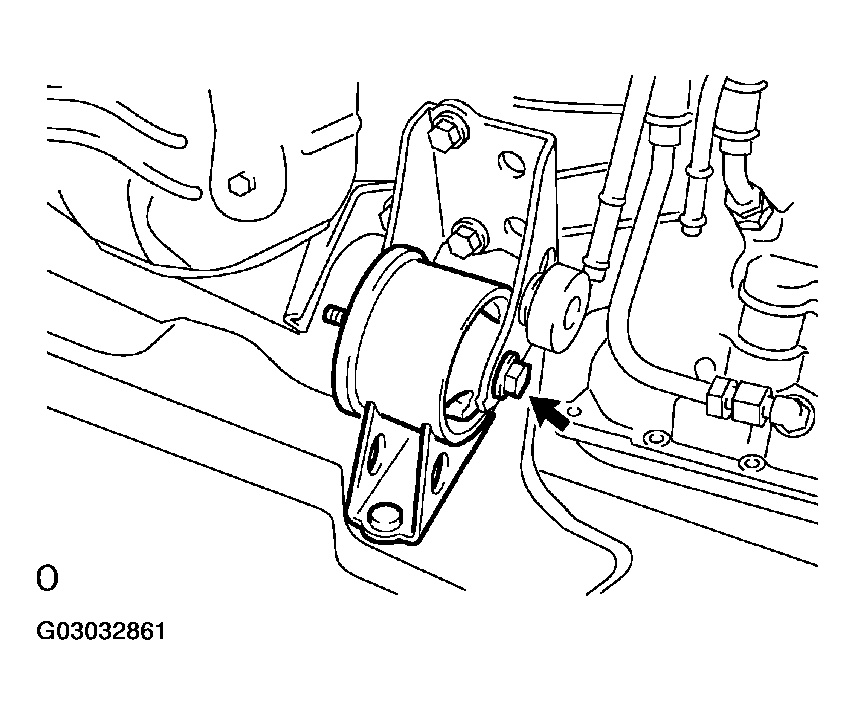

Fig 19: Removing Engine Mounting Insulator FR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DRIVE SHAFT ASSY RH (4WD TYPE) (See REMOVAL & INSTALLATION )
REMOVE ENGINE MOUNTING BRACKET RR (4WD TYPE)

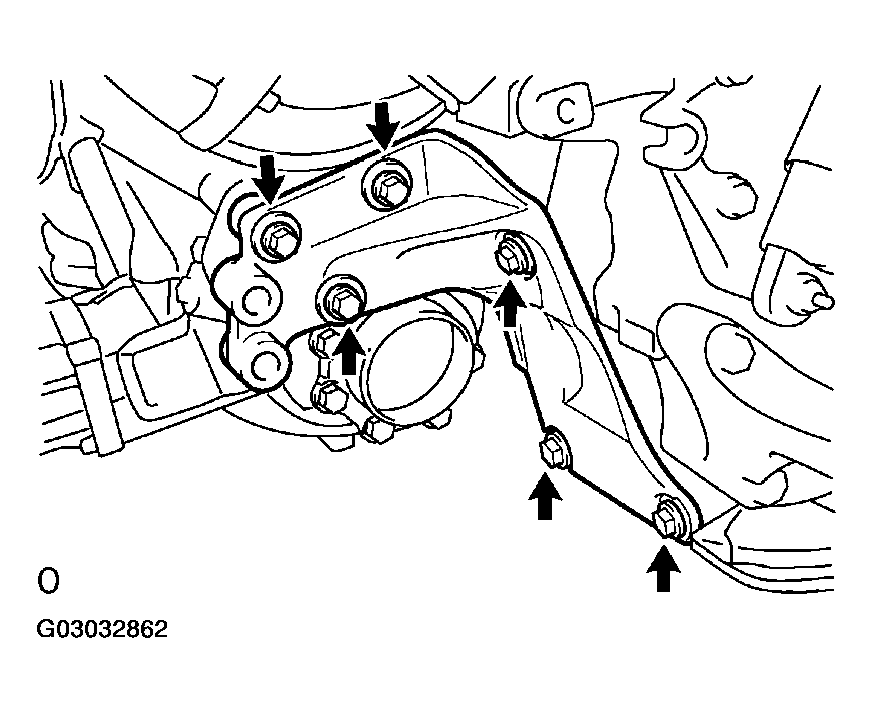

1. Remove the 6 bolts and engine mounting bracket RR.

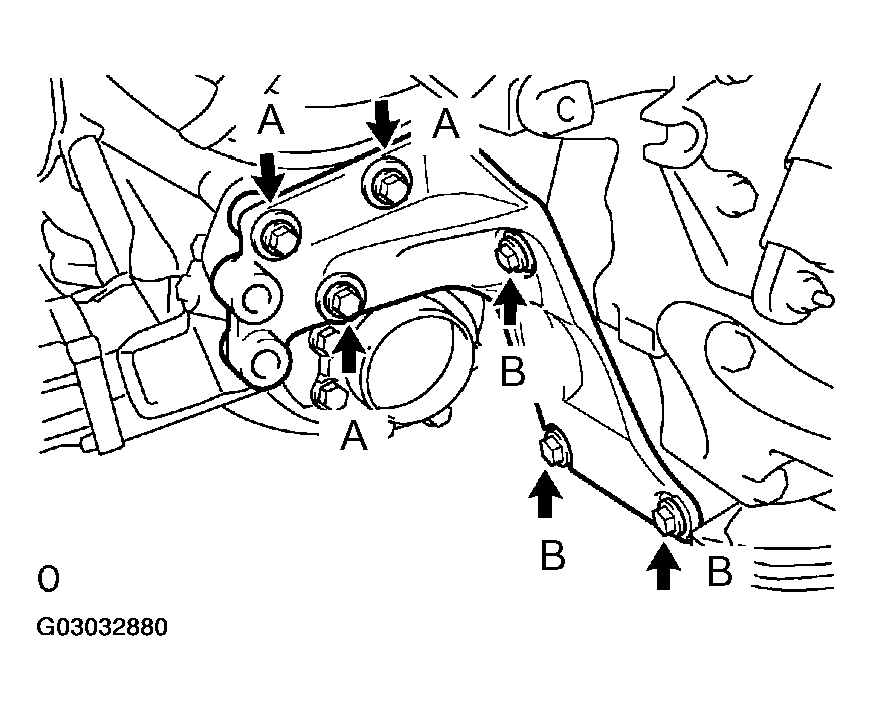

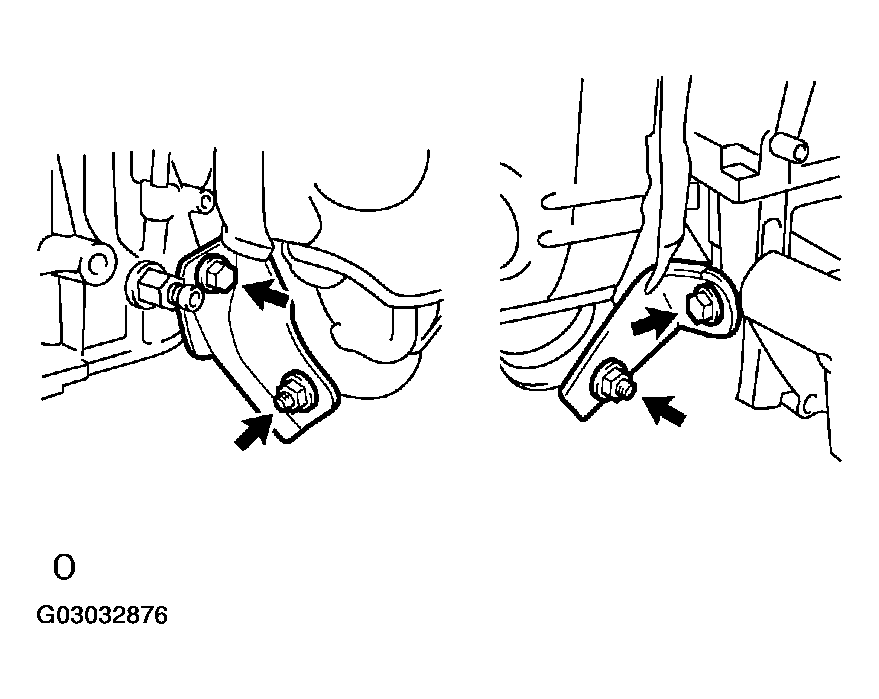

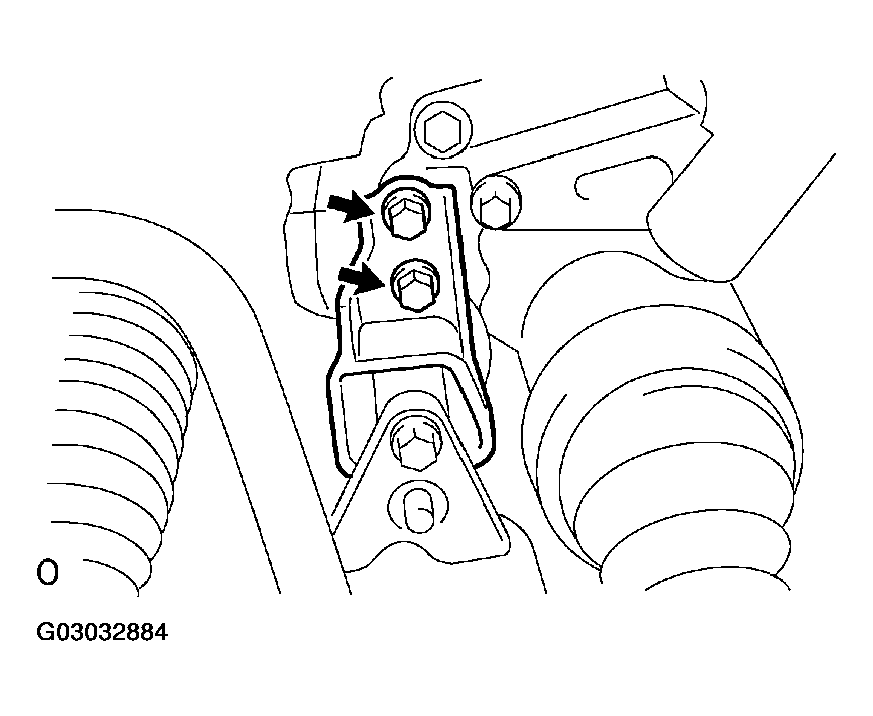

Fig 20: Removing Engine Mounting Bracket RR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSFER ASSY (4WD TYPE) (See OVERHAUL )
REMOVE FRONT DRIVE SHAFT ASSY LH (See REMOVAL & INSTALLATION )
REMOVE FRONT DRIVE SHAFT ASSY RH (2WD TYPE) (See REMOVAL & INSTALLATION )
REMOVE STARTER ASSY (See OVERHAUL )
REMOVE AUTOMATIC TRANSAXLE ASSY (See REPLACEMENT )
REMOVE DRIVE PLATE & RING GEAR SUB-ASSY

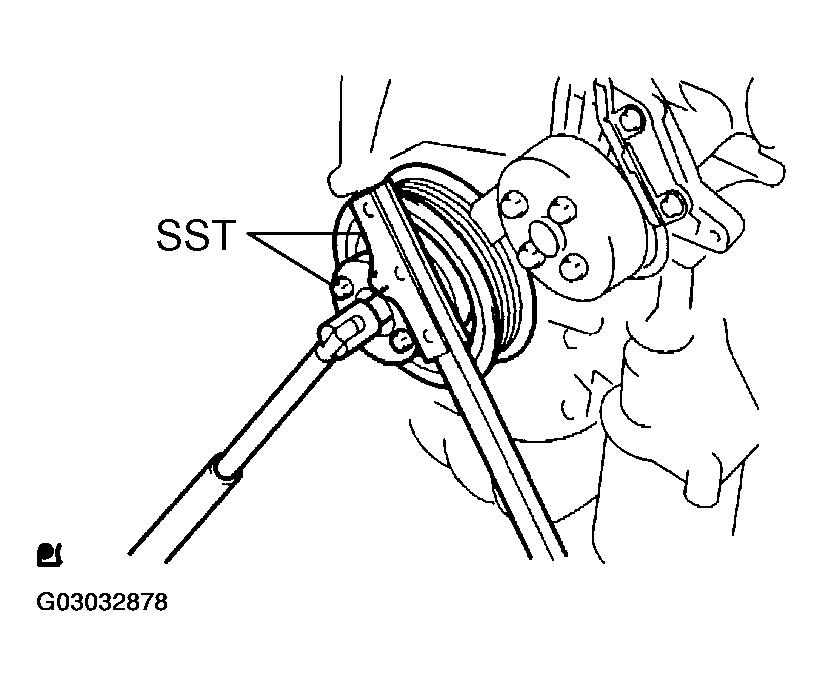

1. Using SST, fix the crankshaft.
  1. SST 09213-54015 (91651-60855), 09330-00021

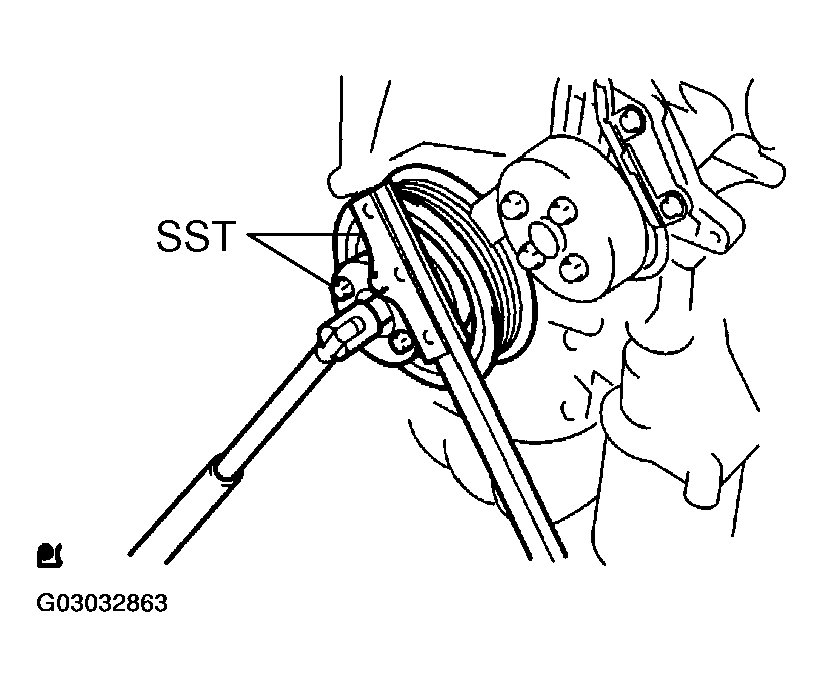

  Fig 21: Fixing Crankshaft Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 8 bolts, rear spacer, drive plate and front spacer.

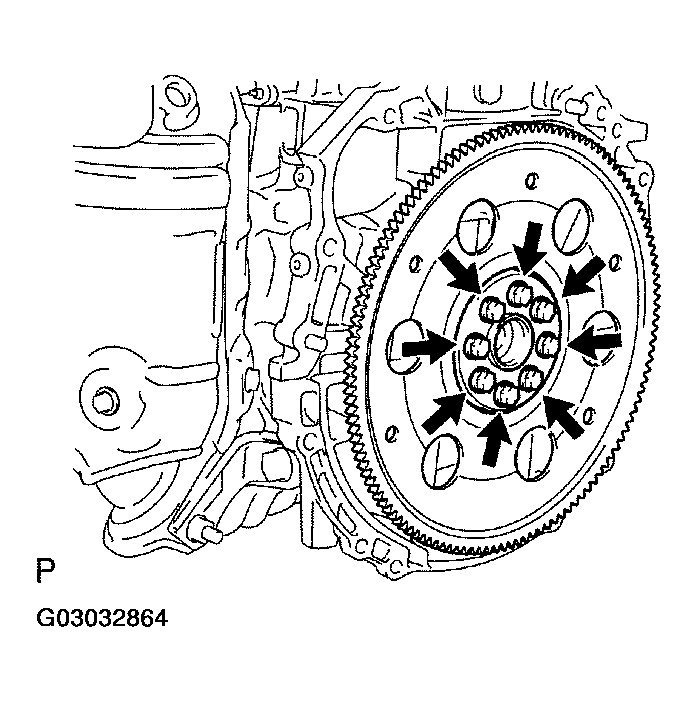

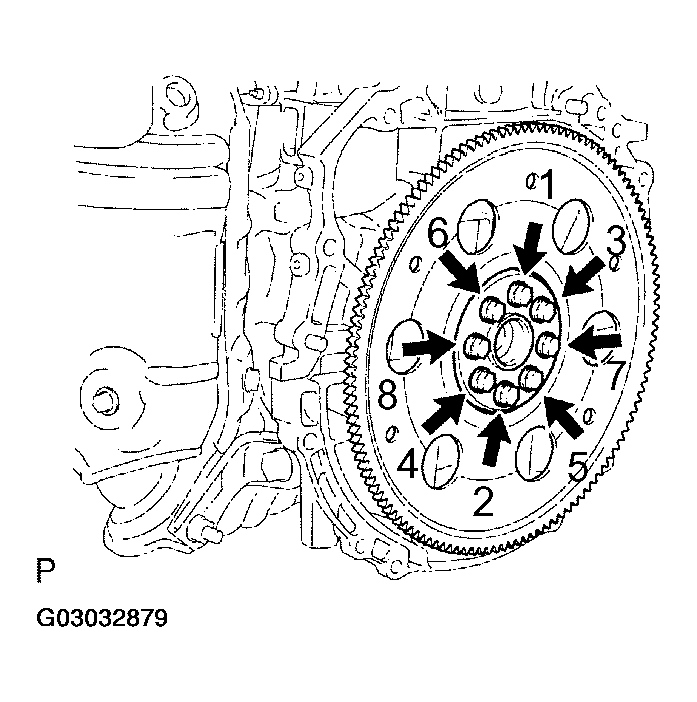

Fig 22: Removing Drive Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE STAND
REMOVE ENGINE COVER SUB-ASSY NO.1
REMOVE INTAKE MANIFOLD
1. Remove the 5 bolts, 2 nuts, intake manifold and gasket.

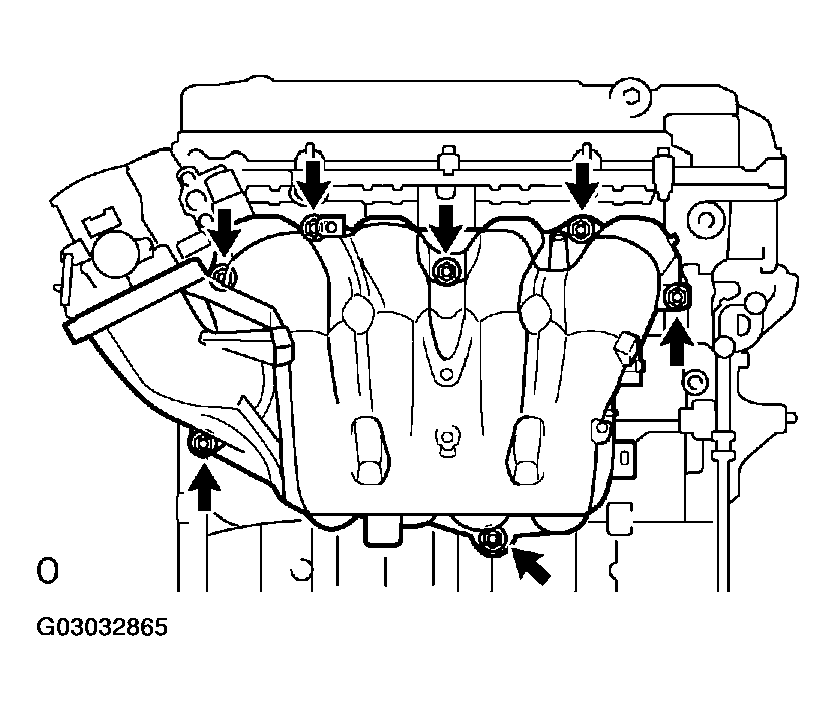

Fig 23: Removing Intake Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT INTAKE MANIFOLD
1. Using a precision straight edge and feeler gauge, measure the surface contacting the cylinder head for warpage.
  1. Maximum warpage: 2.0 mm (0.079 in.)
If the warpage is greater than the maximum, replace the manifold.

Fig 24: Inspecting Intake Manifold For Warpage
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VENTILATION HOSE No.1
REMOVE VENTILATION HOSE NO.2
REMOVE ENGINE WIRE
REMOVE INTAKE MANIFOLD INSULATOR NO.1
REMOVE GENERATOR ASSY
REMOVE OIL LEVEL GAGE SUB-ASSY
REMOVE OIL LEVEL GAGE GUIDE
REMOVE MANIFOLD CONVERTER INSULATOR NO.1
REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSY

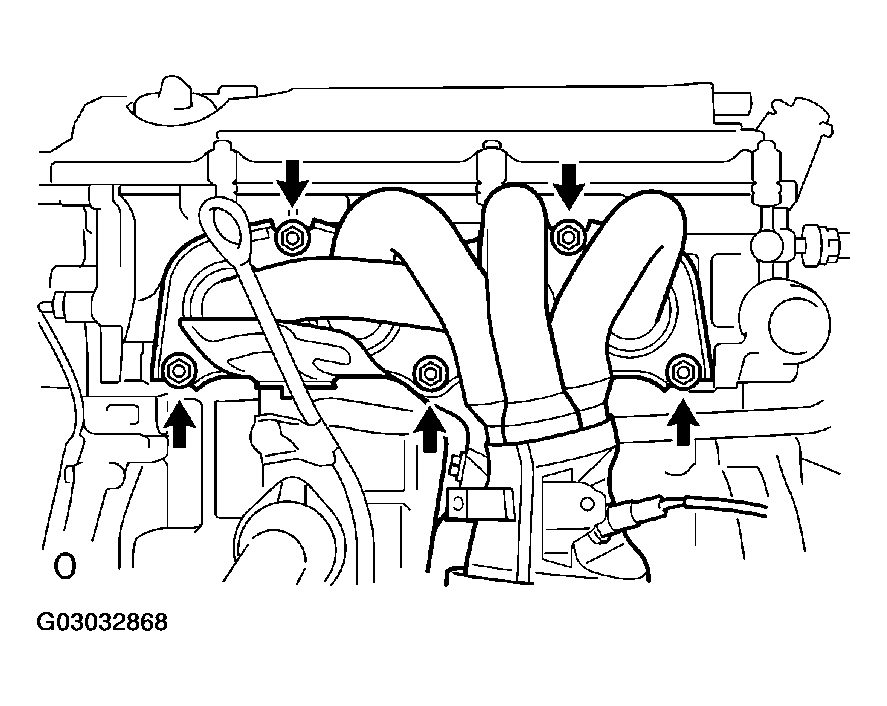

1. Remove the 3 bolts, 2 nuts, and the No. 1 and No. 2 exhaust manifold stays.

  Fig 25: Removing Exhaust Manifold Stays
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

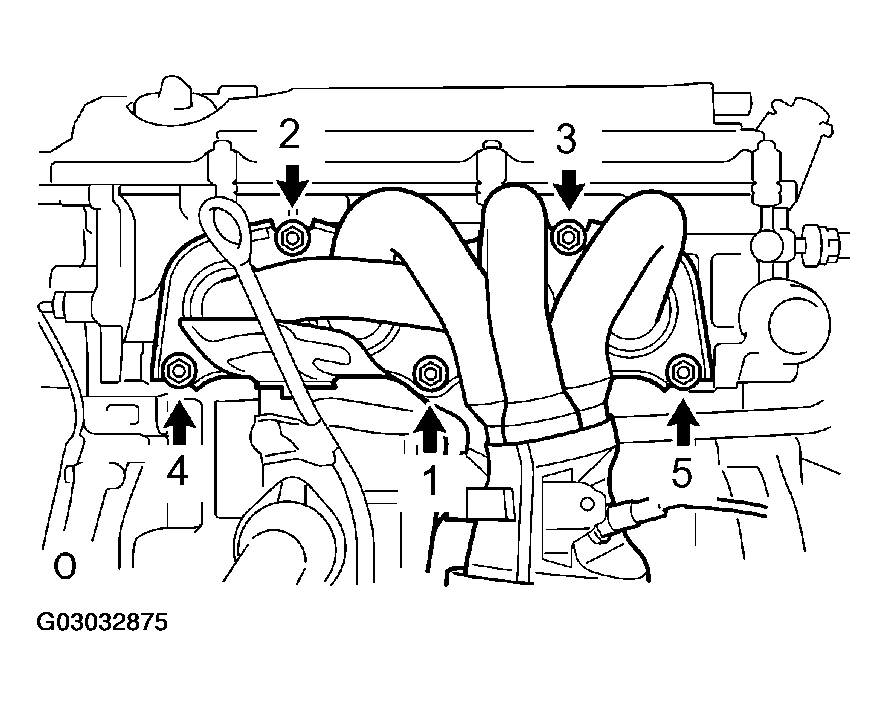

2. Remove the 5 nuts, exhaust manifold converter and gasket.
Fig 26: Removing Exhaust Manifold Converter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT EXHAUST MANIFOLD CONVERTER SUB-ASSY
1. Using a precision straight edge and feeler gauge, measure the surface contacting the cylinder head for war-page.
  1. Maximum warpage: 0.70 mm (0.0276 in.)
If the warpage is greater than the maximum, replace the manifold.

Fig 27: Inspecting Exhaust Manifold Converter For War-Page
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WATER INLET
REMOVE THERMOSTAT
REMOVE IGNITION COIL ASSY
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSY
REMOVE V-RIBBED BELT TENSIONER ASSY
1. Remove the bolt, nut and belt tensioner.
Fig 28: Removing V-Ribbed Belt Tensioner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DRIVE SHAFT BEARING BRACKET (2WD TYPE)
REMOVE ENGINE MOUNTING BRACKET RH
REMOVE FUEL DELIVERY PIPE W/INJECTOR (See REPLACEMENT )
REMOVE WATER BY-PASS PIPE NO.1
REMOVE OIL COOLER PIPE (W/ OIL COOLER)
REMOVE OIL COOLER HOSE (W/ OIL COOLER)
REMOVE ENGINE OIL PRESSURE SWITCH ASSY

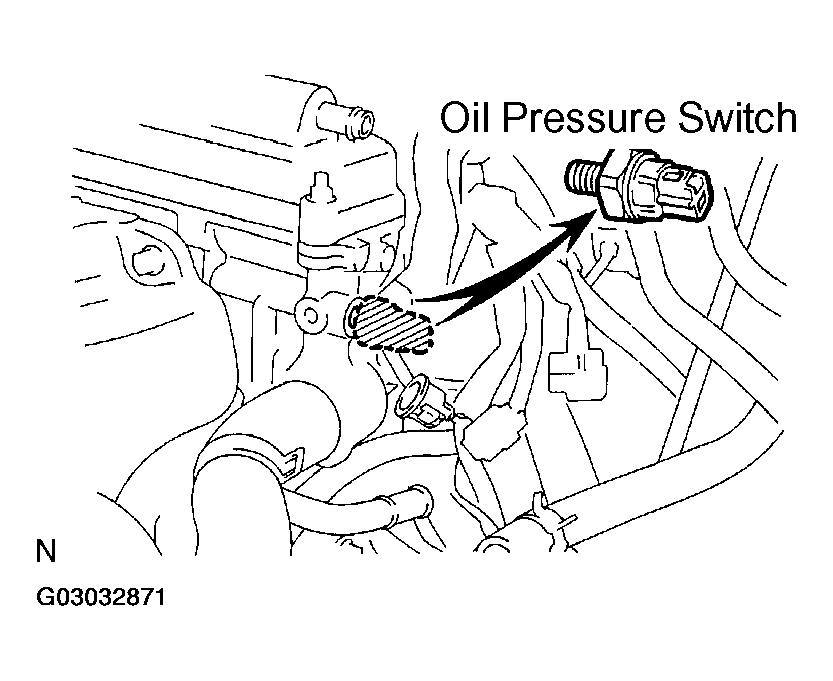

1. Remove the oil pressure switch.
Fig 29: Removing Oil Pressure Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE KNOCK SENSOR
1. Remove the nut and the sensor.

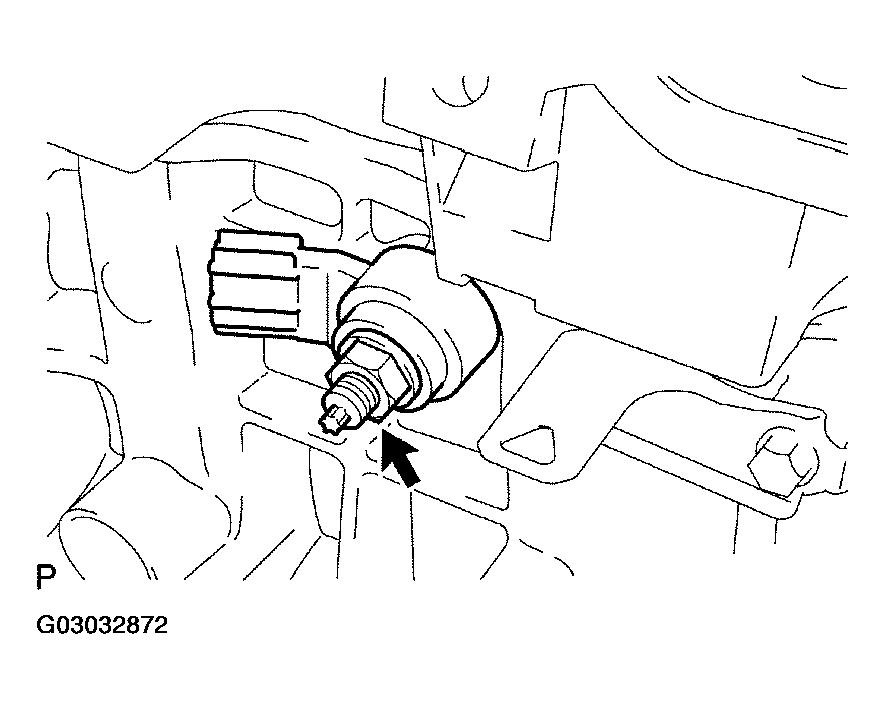

Fig 30: Removing Knock Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE COOLANT TEMPERATURE SENSOR
REPLACE PARTIAL ENGINE ASSY
INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket to the sensor.
2. Install the sensor.
  1. Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
INSTALL KNOCK SENSOR
1. Install the sensor with the nut.
  1. Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
HINT:

Angling the knock sensor below the horizontal (below 0°) is recommended.

Fig 31: Identifying Knock Sensor Installation Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE OIL PRESSURE SWITCH ASSY
1. Clean the threads of the oil pressure switch. Apply adhesive to 2 or 3 threads of the oil pressure switch.
  1. Adhesive: Part No. 08833-00080 THREE BOND 1344 or equivalent
2. Install the oil pressure switch.
  1. Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)
INSTALL OIL COOLER PIPE (W/ OIL COOLER)
1. Install a new gasket and the oil cooler pipe with the bolt and 2 nuts.
  1. Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
INSTALL WATER BY-PASS PIPE NO.1
1. Install a new gasket and the by-pass pipe with the bolt and 2 nuts.
  1. Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
INSTALL FUEL DELIVERY PIPE W/INJECTOR (See REPLACEMENT )
INSTALL ENGINE MOUNTING BRACKET RH
1. Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)
INSTALL DRIVE SHAFT BEARING BRACKET (2WD TYPE)
1. Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)
INSTALL V-RIBBED BELT TENSIONER ASSY
1. Install the belt tensioner with the bolt and nut.
  1. Torque: 60 N.m (612 kgf.cm, 44 ft.lbf)
Fig 32: Installing V-Ribbed Belt Tensioner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSY
1. Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
INSTALL IGNITION COIL ASSY
1. Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
INSTALL THERMOSTAT (See REPLACEMENT )
INSTALL WATER INLET
1. Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSY
1. Install a new gasket and the exhaust manifold converter. Uniformly tighten the 5 nuts in the sequence shown in the illustration.
  1. Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)
  Fig 33: Installing Exhaust Manifold Converter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 and No. 2 exhaust manifold stays with the 2 bolts and 2 nuts.
  1. Torque: 44 N.m (449 kgf.cm, 32 ft.lbf)
Fig 34: Installing Exhaust Manifold Stays
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MANIFOLD CONVERTER INSULATOR NO.1
INSTALL OIL LEVEL GAGE GUIDE
1. Apply a light coat of the engine oil to the O-ring and install it to the guide.
2. Install the oil level gage and guide with the bolt.
  1. Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)
INSTALL GENERATOR ASSY (See GENERATOR )
INSTALL INTAKE MANIFOLD
1. Install a new gasket and the intake manifold with the 5 bolts and 2 nuts. Uniformly tighten the bolts in several passes.
  1. Torque: 30 N.m (306 kgf.cm, 22 ft.lbf)
Fig 35: Installing Intake Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DRIVE PLATE & RING GEAR SUB-ASSY
1. Using SST, fix the crankshaft.
  1. SST 09213-54015 (91651-60855), 09330-00021
2. Apply adhesive to 2 or 3 threads of the bolt end.
  1. Adhesive: Part No. 08833-00070, THREE BOND or equivalent.
  Fig 36: Fixing Crankshaft Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the front spacer, drive plate and rear spacer with 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.
  1. Torque: 98 N.m (1,000 kgf.cm, 72 ft.lbf)
Fig 37: Installing Drive Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSAXLE ASSY (See REPLACEMENT )
INSTALL STARTER ASSY (See OVERHAUL )
1. Torque: 39 N.m (398 kgf.cm, 29 ft.lbf)
INSTALL FRONT DRIVE SHAFT ASSY RH (2WD TYPE) (See REMOVAL & INSTALLATION )
INSTALL FRONT DRIVE SHAFT ASSY LH (See REMOVAL & INSTALLATION )
INSTALL TRANSFER ASSY (4WD TYPE) (See OVERHAUL )
INSTALL ENGINE MOUNTING BRACKET RR (4WD TYPE)
1. Install the mounting bracket with the 6 bolts.
  1. Torque:
  2. 34 N.m (347 kgf.cm, 25 ft.lbf) for bolt A
  3. 64 N.m (653 kgf.cm, 47 ft.lbf) for bolt B
Fig 38: Installing Engine Mounting Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DRIVE SHAFT ASSY RH (4WD TYPE) (See REMOVAL & INSTALLATION )
INSTALL FRONT FRAME ASSY
1. Install the engine mounting insulator LH with the nut.
  1. Torque: 95 N.m (969 kgf.cm, 70 ft.lbf)
  Fig 39: Installing Engine Mounting Insulator LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the engine mounting insulator RH with the nut.
  1. Torque: 95 N.m (969 kgf.cm, 70 ft.lbf)
  Fig 40: Installing Engine Mounting Insulator RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the engine mounting insulator FR with the nut.
  1. Torque: 87 N.m (887 kgf.cm, 64 ft.lbf)
  Fig 41: Installing Engine Mounting Insulator FR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. 4WD type:
  1. Install the engine mounting insulator RR with 2 nuts.
  2. Torque: 75 N.m (765 kgf.cm, 55 ft.lbf)
Fig 42: Installing Engine Mounting Insulator RR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RACK & PINION POWER STEERING GEAR ASSY (4WD TYPE)
1. Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)
INSTALL STABILIZER BAR FRONT (4WD TYPE)
1. Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)
INSTALL VANE PUMP ASSY
1. Install the vane pump to the engine with the 2 bolts.
2. Connect the PS oil pressure switch connector.
  1. Torque: 43 N.m (438 kgf.cm, 31 ft.lbf)
Fig 43: Installing Vane Pump To Engine
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
1. Set the engine assembly with transaxle on the engine line.
2. Install the engine assembly to the vehicle.
3. Install the frame side plate LH and RH with the 6 bolts.
  1. Torque:
  2. 86 N.m (877 kgf.cm, 63 ft.lbf) for bolt A
  3. 32 N.m (326 kgf.cm, 24 ft.lbf) for bolt B and nut
  Fig 44: Installing Frame Side Plate LH And RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

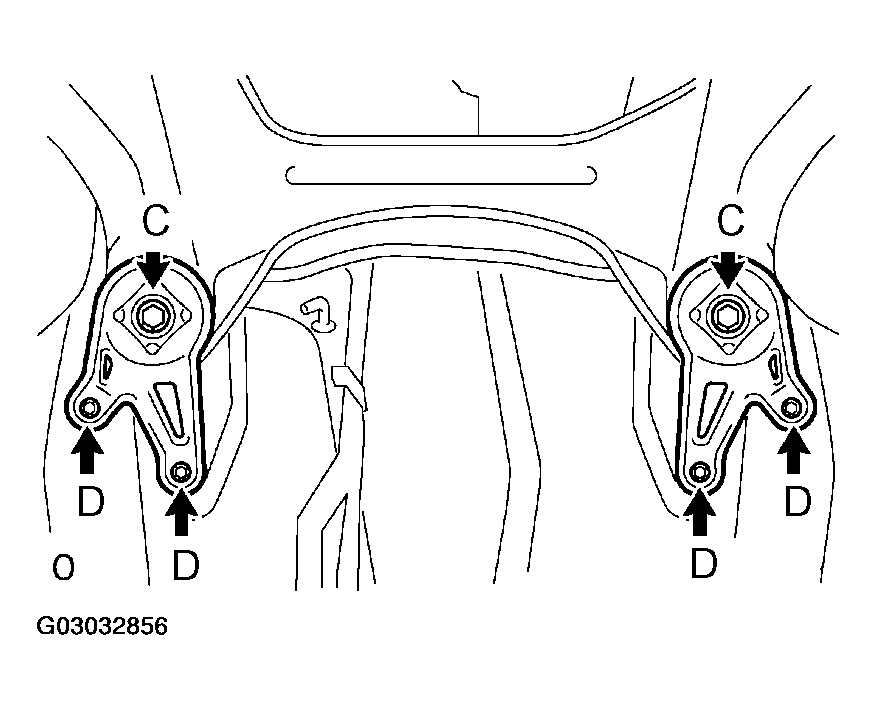

4. Install the front suspension member brace rear RH and LH with the 6 bolts.
  1. Torque:
  2. 86 N.m (877 kgf.cm, 63 ft.lbf) for bolt C
  3. 32 N.m (326 kgf.cm, 24 ft.lbf) for bolt D and nut
Fig 45: Installing Front Suspension Member Brace Rear RH And LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMPRESSOR AND MAGNETIC CLUTCH (See REPLACEMENT )
INSTALL STEERING INTERMEDIATE SHAFT SUB-ASSY
1. Align the matchmarks on the intermediate shaft and control valve shaft.
  1. Torque: 35 N.m (357 kgf.cm, 26 ft.lbf)
  Fig 46: Aligning Matchmarks On Intermediate Shaft And Control Valve Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the bolt.
  1. Torque: 35 N.m (357 kgf.cm, 26 ft.lbf)
Fig 47: Tightening Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BOLT, W/WASHER
1. Fix the crankshaft, and install the 6 setting bolts.
  1. Torque: 41 N.m (418 kgf.cm, 30 ft.lbf)
Fig 48: Installing Setting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH
1. Install the drive shaft to the steering knuckle.
2. Install the suspension lower arm with the bolt and the 2 nuts.
  1. Torque: 127 N.m (1,295 kgf.cm, 94 ft.lbf)
Fig 49: Installing Front Suspension Lower Arm
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 RH
HINT:

Use the same procedures described for the LH side.
INSTALL TIE ROD ASSY LH
1. Connect the tie rod end to the steering knuckle and install a new castle nut.
  1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
  NOTE:
  - Prevent any lubricant from contacting the thread and the taper portions.
  - After tightening the castle nut, tighten it to the additional direction within 60° to put into a cotter pin.
2. Insert a new cotter pin.
INSTALL TIE ROD ASSY RH
HINT:

Use the same procedures described for the LH side.
INSTALL SPEED SENSOR FRONT LH
1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
INSTALL SPEED SENSOR FRONT RH
1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
INSTALL FRONT AXLE HUB LH NUT
1. Using a 30 mm socket wrench, install a new hub nut.
  1. Torque: 294 N.m (3,000 kgf.cm, 217 ft.lbf)
2. Using a chisel and hammer, tapped the front axle hub LH nut.
Fig 50: Installing Front Axle Hub LH Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB RH NUT
HINT:

Use the same procedures described for the LH side.
INSTALL FRONT STABILIZER LINK ASSY LH
1. Using a 5 mm socket hexagon wrench, fix the stud bolt and install the nut.
  1. Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
INSTALL FRONT STABILIZER LINK ASSY RH
HINT:

Use the same procedures described for the LH side.
INSTALL PROPELLER SHAFT (4WD TYPE)
1. Align the matchmarks on both the flanges of the front propeller shaft and intermediate shaft, then install and tighten the 4 bolts, 4 washers and 4 nuts.
  1. Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
Fig 51: Aligning Matchmarks On Both Flanges Of Front Propeller Shaft And Intermediate Shaft And Installing Propeller Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL EXHAUST PIPE ASSY FRONT (See REPLACEMENT )
CONNECT FUEL TUBE SUB-ASSY
INSTALL RETURN TUBE SUB-ASSY
1. Install the return tube with 2 bolts.
  1. Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
Fig 52: Installing Return Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FAN AND GENERATOR V BELT (See FAN AND GENERATOR V BELT (2AZ-FE) )
INSTALL ENGINE MOUNTING BRACKET NO.2 RH
1. Torque: 52 N.m (530 kgf.cm, 38 ft.lbf)
INSTALL ENGINE MOVING CONTROL ROD W/B RACKET
1. Install the engine mounting control rod with the 3 bolts.
  1. Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)
HINT:

First, loosely install bolts (1) and (2) with your hand. Then use a wench to install bolt (3). Finally, tighten bolt (2) and (1), in that order.

Fig 53: Installing Engine Moving Control Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE MOUNTING STAY NO.2 RH
1. Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)
INSTALL AIR CLEANER ASSY
1. Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)
ADD TRANSFER OIL
1. Install a new gasket and the filler plug.
  1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
ADD AUTOMATIC TRANSAXLE FLUID
ADD ENGINE OIL
ADD COOLANT (See REPLACEMENT )
CHECK FOR ENGINE OIL LEAKS
CHECK FOR ENGINE COOLANT LEAKS (See REPLACEMENT )
INSPECT FOR FUEL LEAKS
INSTALL FRONT WHEEL
ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT )
CHECK IDLE SPEED AND IGNITION TIMING (See ENGINE (2AZ-FE) )
INSPECT CO/HC (See ENGINE (2AZ-FE) )
CHECK ABS SPEED SENSOR SIGNAL (See PRE-CHECK )
