Section 11 (Thermostat (2AZ-FE)): Replacement

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
  2. REMOVE FAN AND GENERATOR V BELT (See  REPLACEMENT  )
  3. REMOVE GENERATOR ASSY (See  GENERATOR  )
  4. DISCONNECT RADIATOR HOSE INLET
  5. REMOVE WATER INLET
    1. Remove the 2 nuts and disconnect the water inlet from the cylinder block.

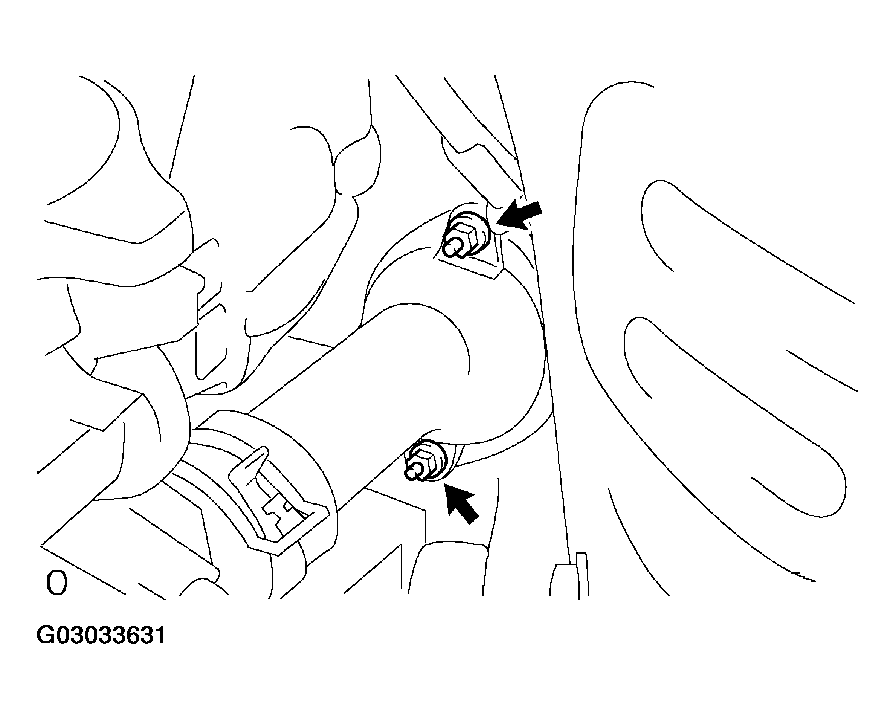

    Fig 1: Disconnecting Water Inlet From Cylinder Block
    G03033631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE THERMOSTAT
    1. Install a new gasket to the thermostat.
    2. Install the thermostat with the jiggle valve facing up.

    HINT:

    The jiggle valve may be set within 10° on either side of the prescribed position.

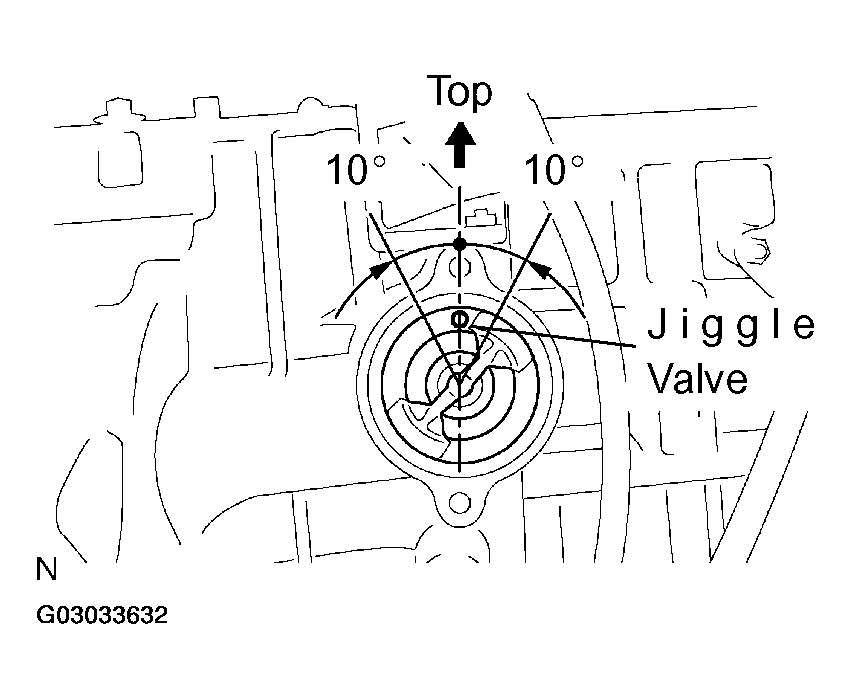

    Fig 2: Installing Thermostat With Jiggle Valve Facing Up
    G03033632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL WATER INLET
    1. Install the water inlet with the 2 nuts, as shown in the illustration.

      Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)

    Fig 3: Installing Water Inlet With Nuts
    G03033633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL RADIATOR HOSE INLET
  9. INSTALL GENERATOR ASSY (See  GENERATOR  )
  10. INSTALL fan and generator v belt (See  REPLACEMENT  )
  11. ADD ENGINE COOLANT (See  REPLACEMENT  )
  12. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
