Fan And Generator V Belt (2AZ-FE): Replacement

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT FENDER SPLASH SHIELD FRONT RH
  3. REMOVE FRONT FENDER APRON SEAL RH
  4. REMOVE ENGINE MOUNTING STAY NO.2 RH
  5. REMOVE ENGINE COVER SUB-ASSY NO.1
  6. REMOVE ENGINE MOVING CONTROL ROD W/BRACKET (See  REPLACEMENT  )
  7. REMOVE ENGINE MOUNTING BRACKET NO.2 RH
  8. REMOVE FAN AND GENERATOR V BELT
    1. Slowly turn the belt tensioner clockwise for more than 3 seconds, and remove the drive belt by using SST.
      • SST 09843-18030

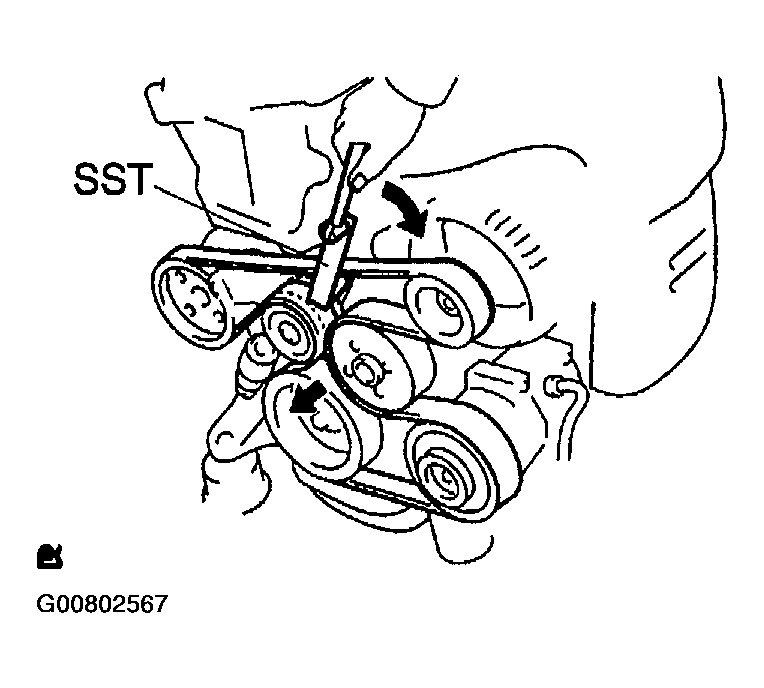

      Fig 1: Removing Drive Belt Using SST
      G00802567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FAN AND GENERATOR V BELT
    1. Slowly turn the belt tensioner clockwise for more than 3 seconds, and install the drive belt by using SST.
      • SST 09249-63010

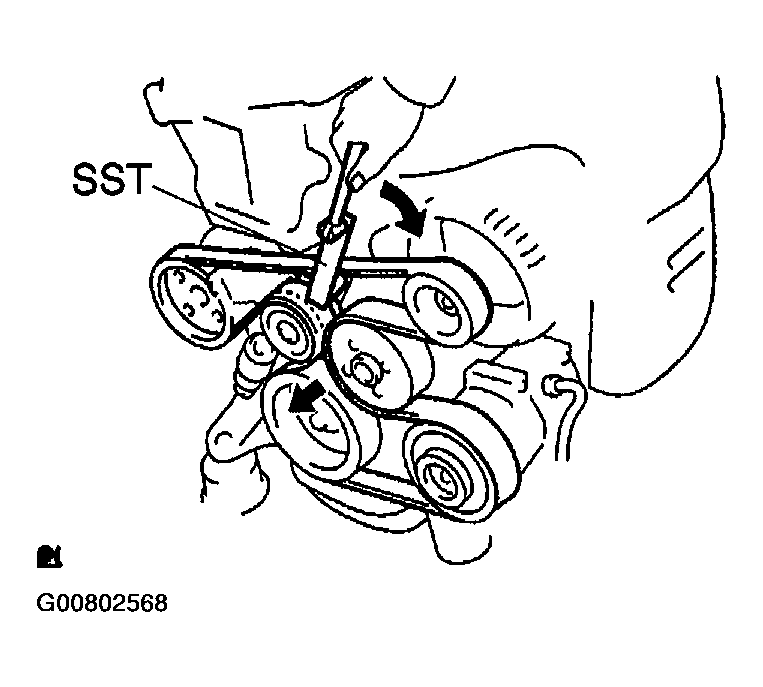

      Fig 2: Installing Drive Belt Using SST
      G00802568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ENGINE MOUNTING BRACKET NO.2 RH
    • Torque: 52 N.m (531 kgf.cm, 38 ft.lbf)
  11. INSTALL ENGINE MOVING CONTROL ROD W/BRACKET (See  REPLACEMENT  )
  12. INSTALL ENGINE MOUNTING STAY NO.2 RH
    • Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)
  13. INSTALL FRONT WHEEL RH
