Transfer Case Oil Seal (4WD): Replacement

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (3MZ-FE ENGINE TYPE) (See REPLACEMENT )
REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (2AZ-FE ENGINE TYPE) (See REPLACEMENT )
REMOVE TRANSVERSE ENGINE MOUNTING BRACKET (2AZ-FE ENGINE TYPE) (See OVERHAUL )
REMOVE TRANSFER STIFFENER PLATE RH (2AZ-FE ENGINE TYPE) (See OVERHAUL )
REMOVE AUTOMATIC TRANSMISSION W/TRANSFER (3MZ-FE ENGINE TYPE) (See REPLACEMENT )
REMOVE TRANSFER ASSY (See OVERHAUL )
REMOVE CTR DIFFERENTIAL LOCK SLEEVE (See OVERHAUL )
SST 09308-00010
REMOVE TRANSFER CASE OIL SEAL
1. Using SST, remove the oil seal from the case.
SST 09308-00010

NOTE: Do not damage the oil-seal-fitted surface of the case.

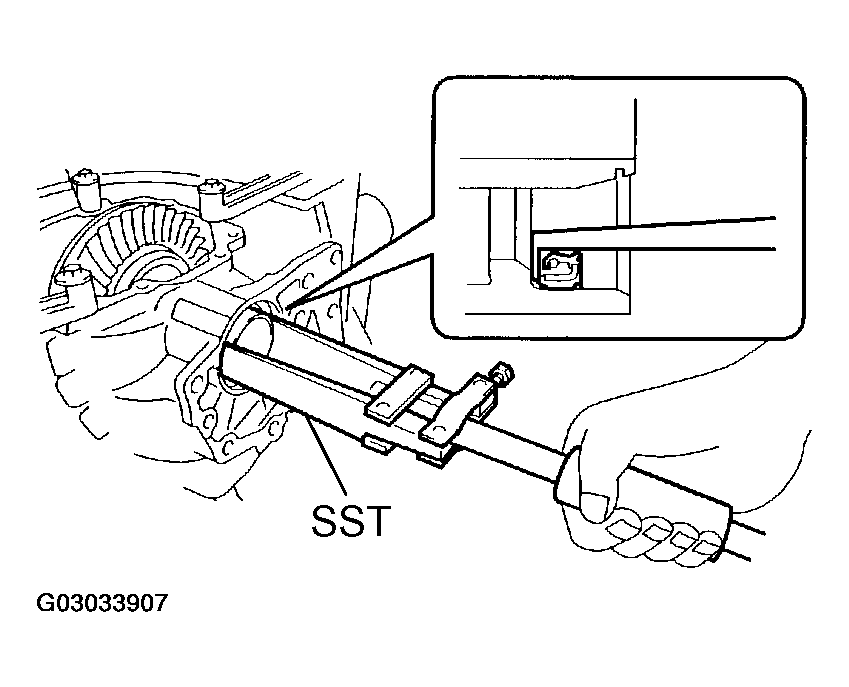

Fig 1: Removing Transfer Case Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSFER CASE OIL SEAL
1. Using SST, drive a new oil seal into the case of the position shown in the illustration.
  SST 09387-00010, 09950-70010 (09951-07150)

  NOTE: Do not install it obliquely.
2. Apply small amount of MP grease to the oil seal lip.

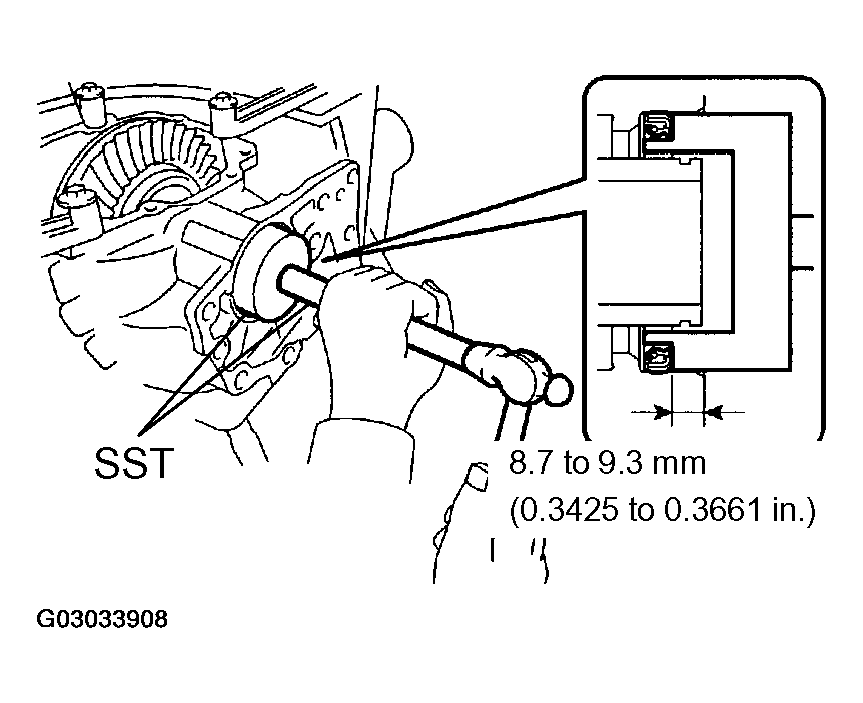

Fig 2: Installing Transfer Case Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CTR DIFFERENTIAL LOCK SLEEVE (See OVERHAUL )
SST 09950-60010 (09951-00610), 09950-70010 (09951-07150)
INSTALL TRANSFER ASSY (See OVERHAUL )
INSTALL TRANSFER STIFFENER PLATE RH (2AZ-FE ENGINE TYPE) (See OVERHAUL )
INSTALL TRANSVERSE ENGINE MOUNTING BRACKET (2AZ-FE ENGINE TYPE) (See OVERHAUL )
INSTALL AUTOMATIC TRANSMISSION W/TRANSFER (3MZ-FE ENGINE TYPE) (See REPLACEMENT )
INSTALL ENGINE ASSEMBLY WITH TRANSAXLE (3MZ-FE ENGINE TYPE) (See REPLACEMENT )
INSTALL ENGINE ASSEMBLY WITH TRANSAXLE (2AZ-FE ENGINE TYPE) See REPLACEMENT )
