Terminals Of ECM

WARNING: This page is about a different variant/trim than selected.

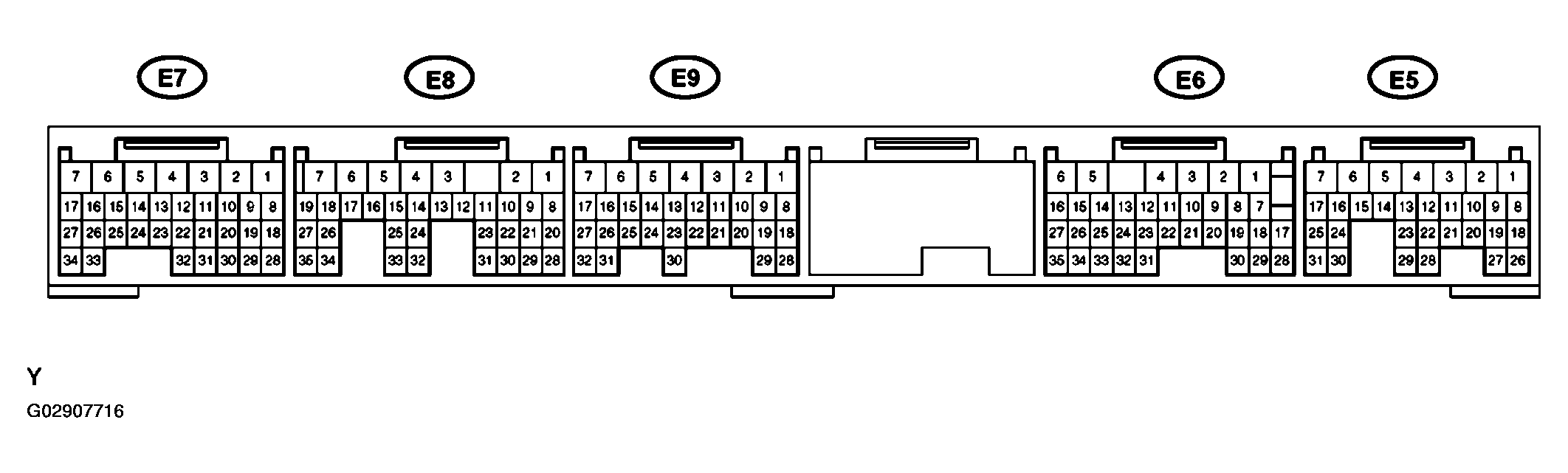

Fig 1: View Of ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in the table below.

In the table, first follow the information under "Condition". Next look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specific Condition".

Use the illustration above as a reference for the ECM terminals.

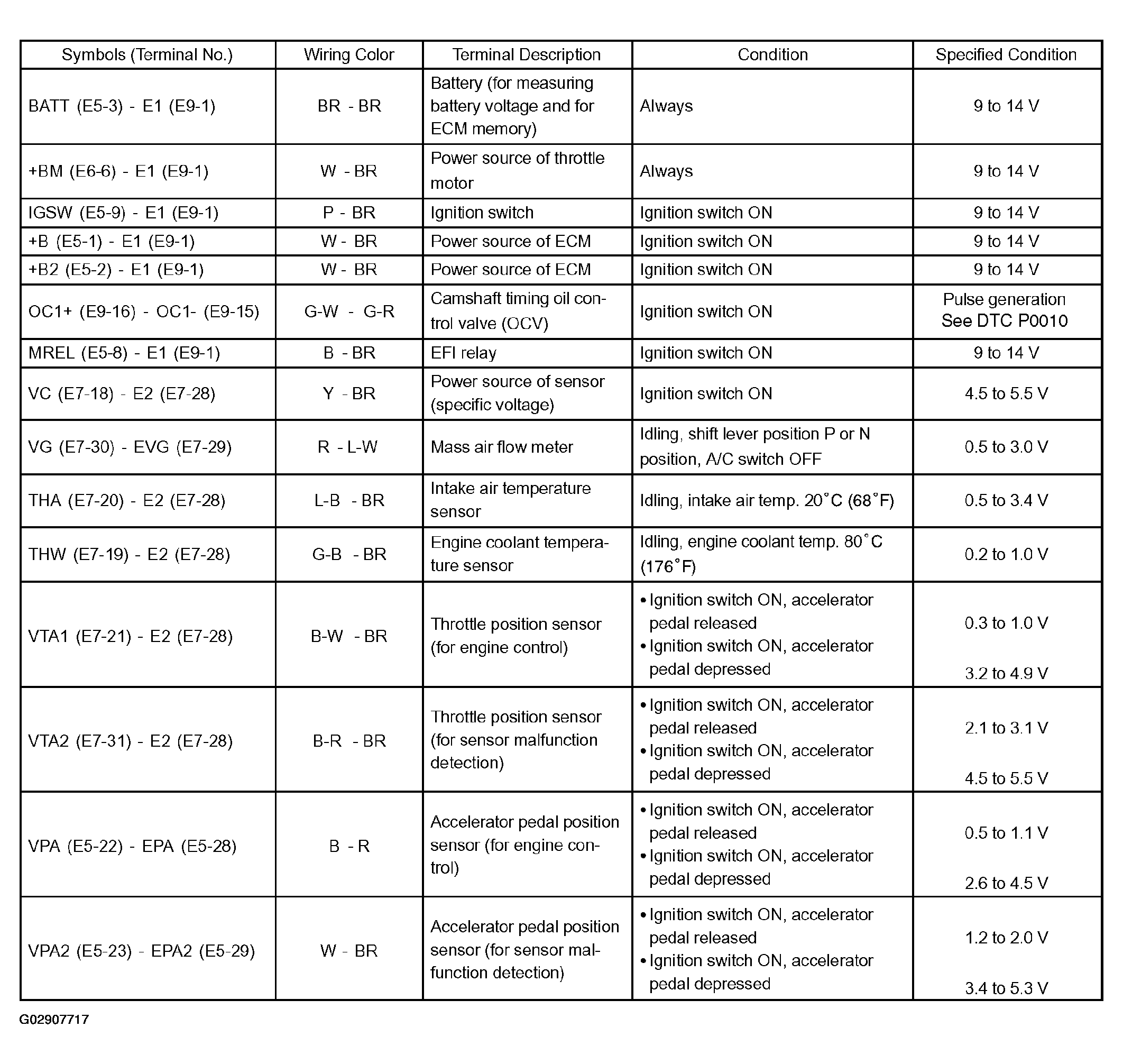

Fig 2: ECM Terminals Voltage Specifications (1 Of 2)

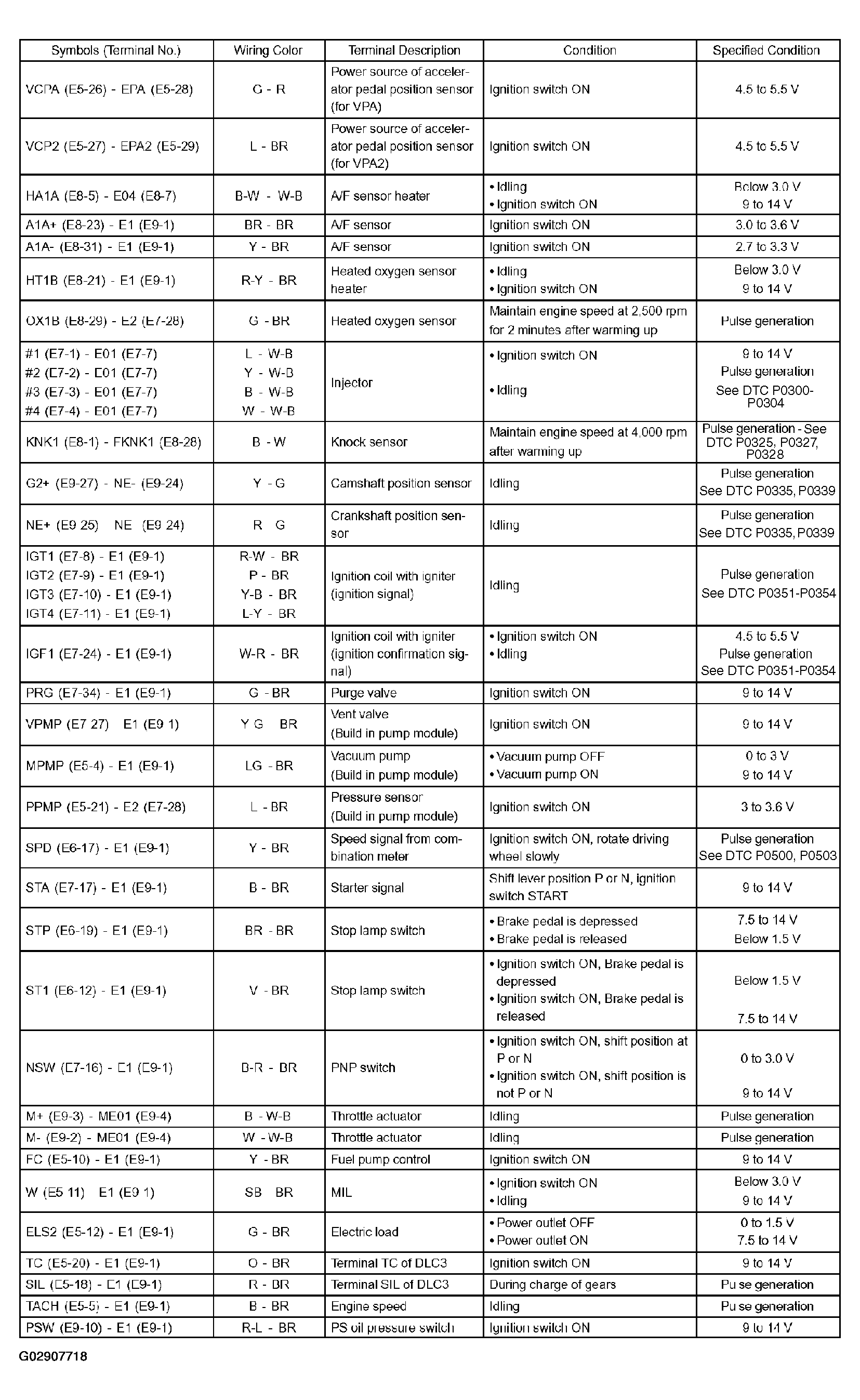

Fig 3: ECM Terminals Voltage Specifications (2 Of 2)
