Section 1 (Engine Control System (SFI) - Diagnostics (2AZ-FE)): Location

WARNING: This page is about a different variant/trim than selected.

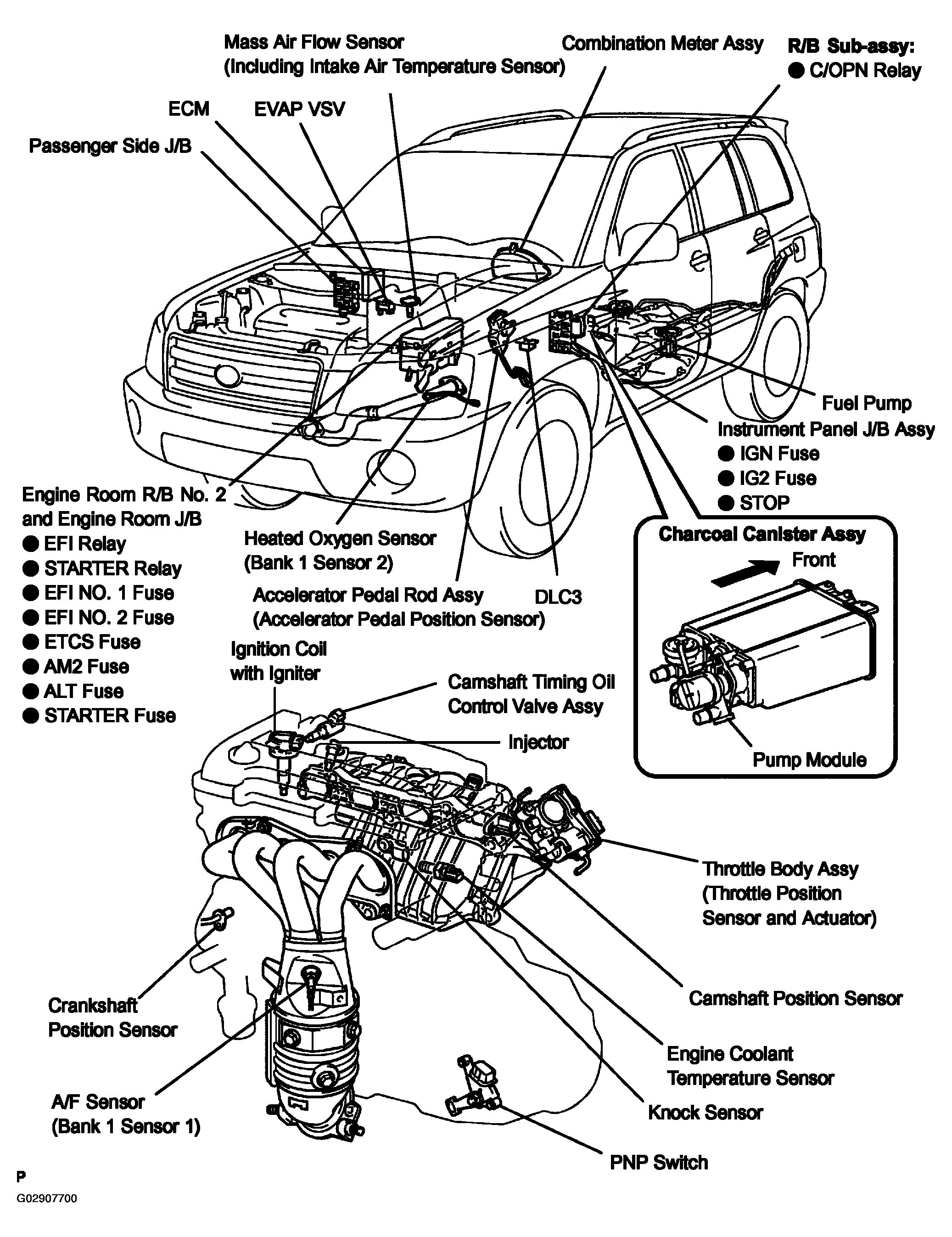

Fig 1: Locating SFI System Components (2AZ-FE)
G02907700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
