List Of Disable A Monitor

WARNING: This page is about a different variant/trim than selected.

HINT:

The following tables show the ECM monitoring status for the components listed in the top of the table when the DTCs on the left of the table are set.

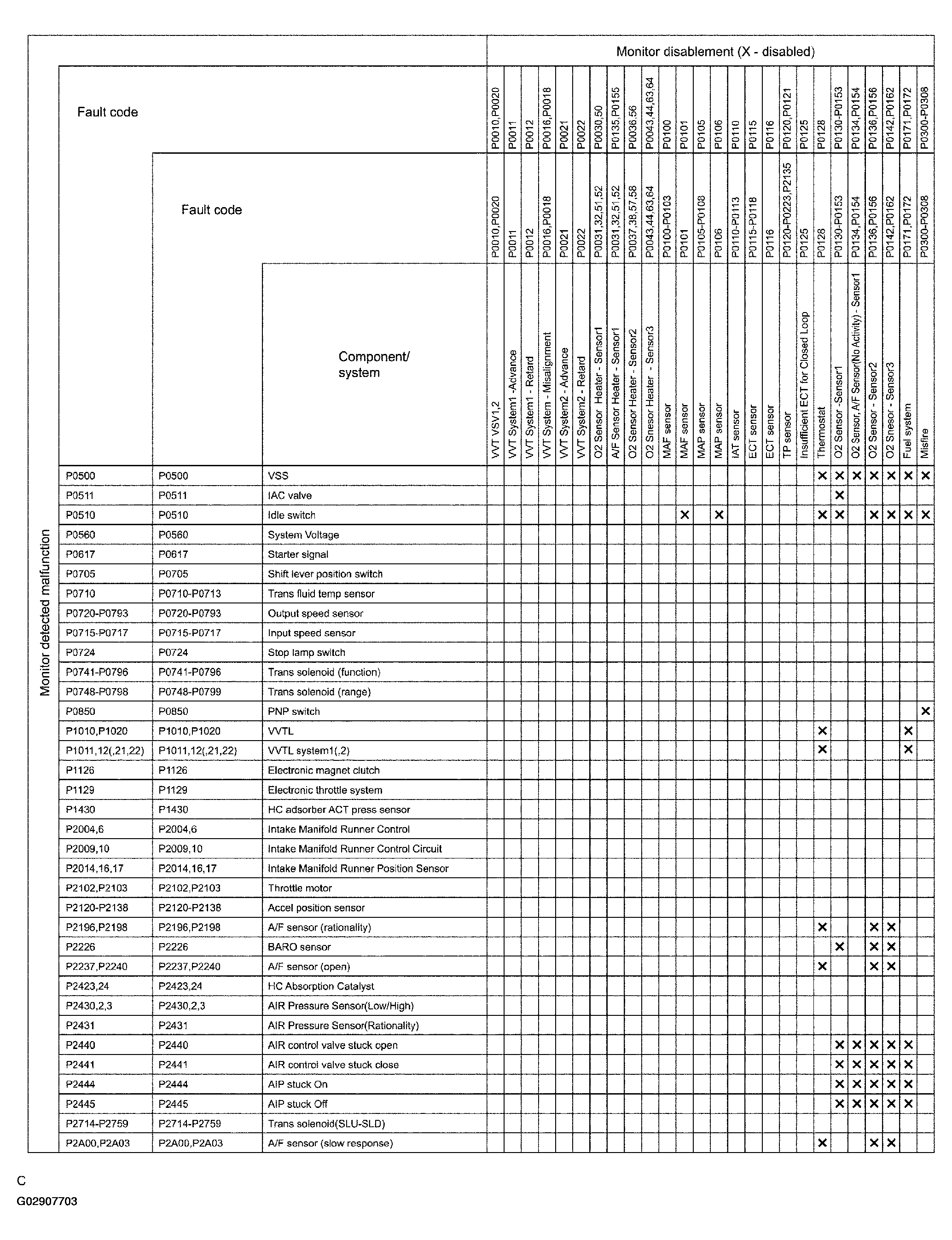

Fig 1: Disabled Monitor Chart (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

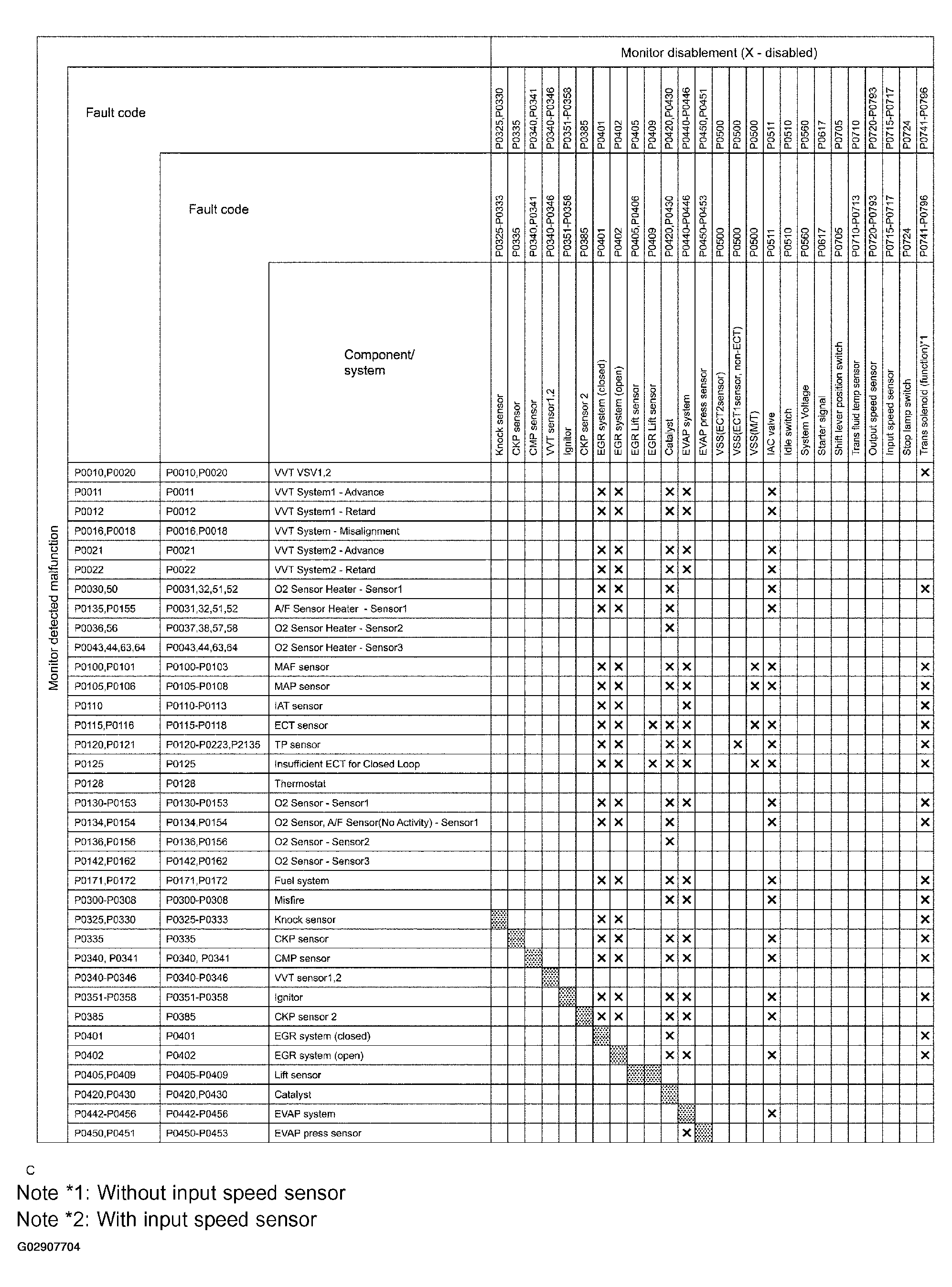

Fig 2: Disabled Monitor Chart (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

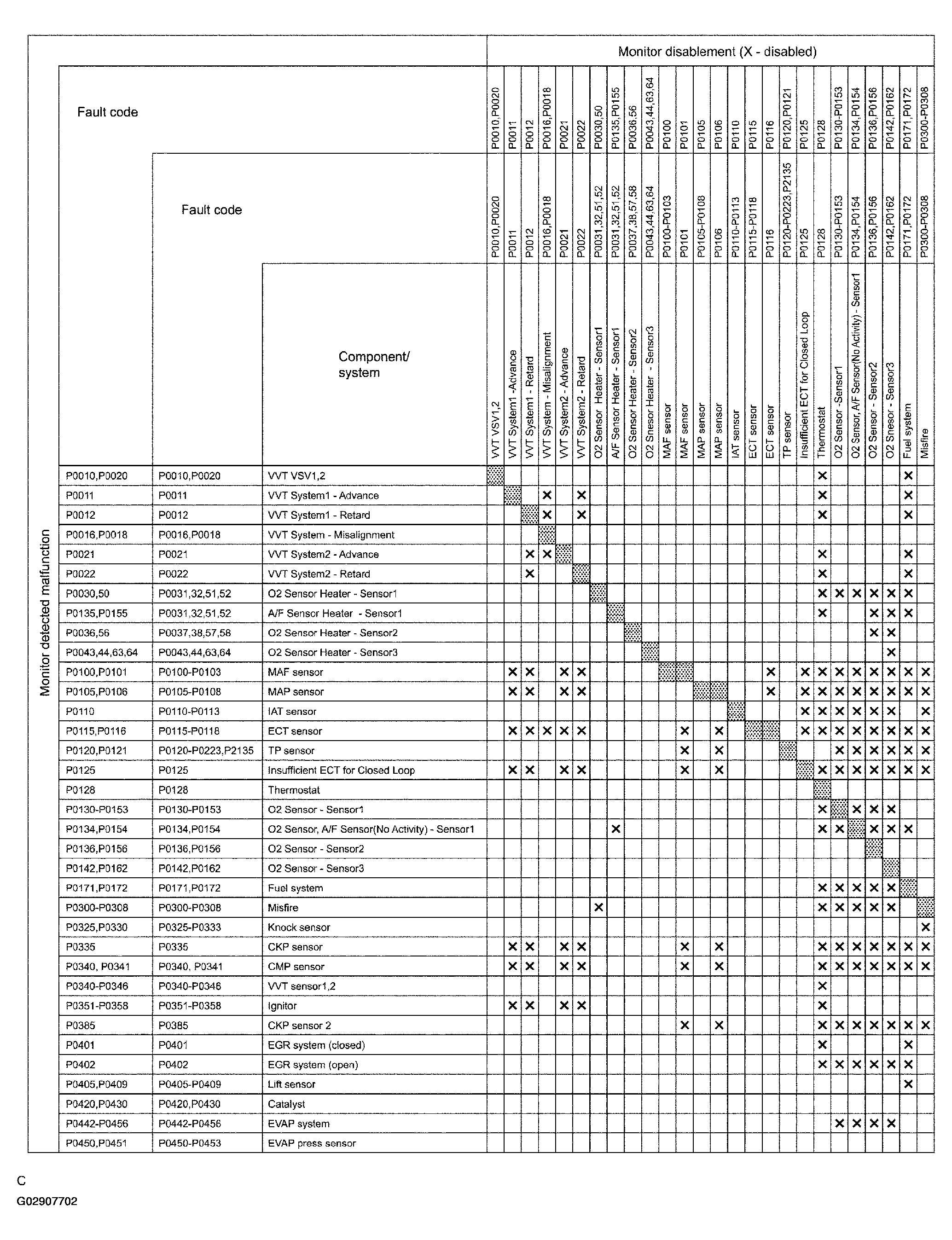

Fig 3: Disabled Monitor Chart (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

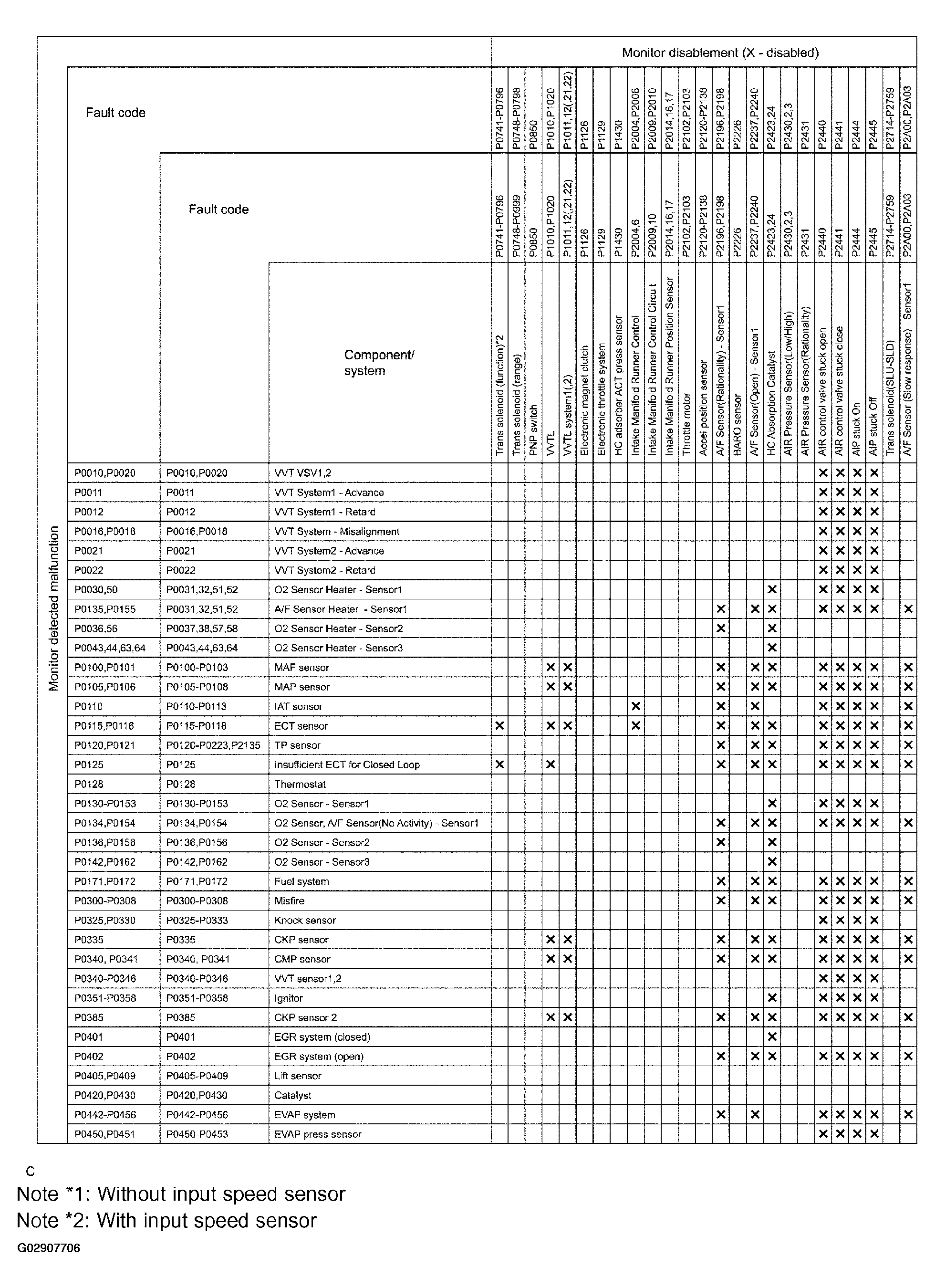

Fig 4: Disabled Monitor Chart (4 Of 6)

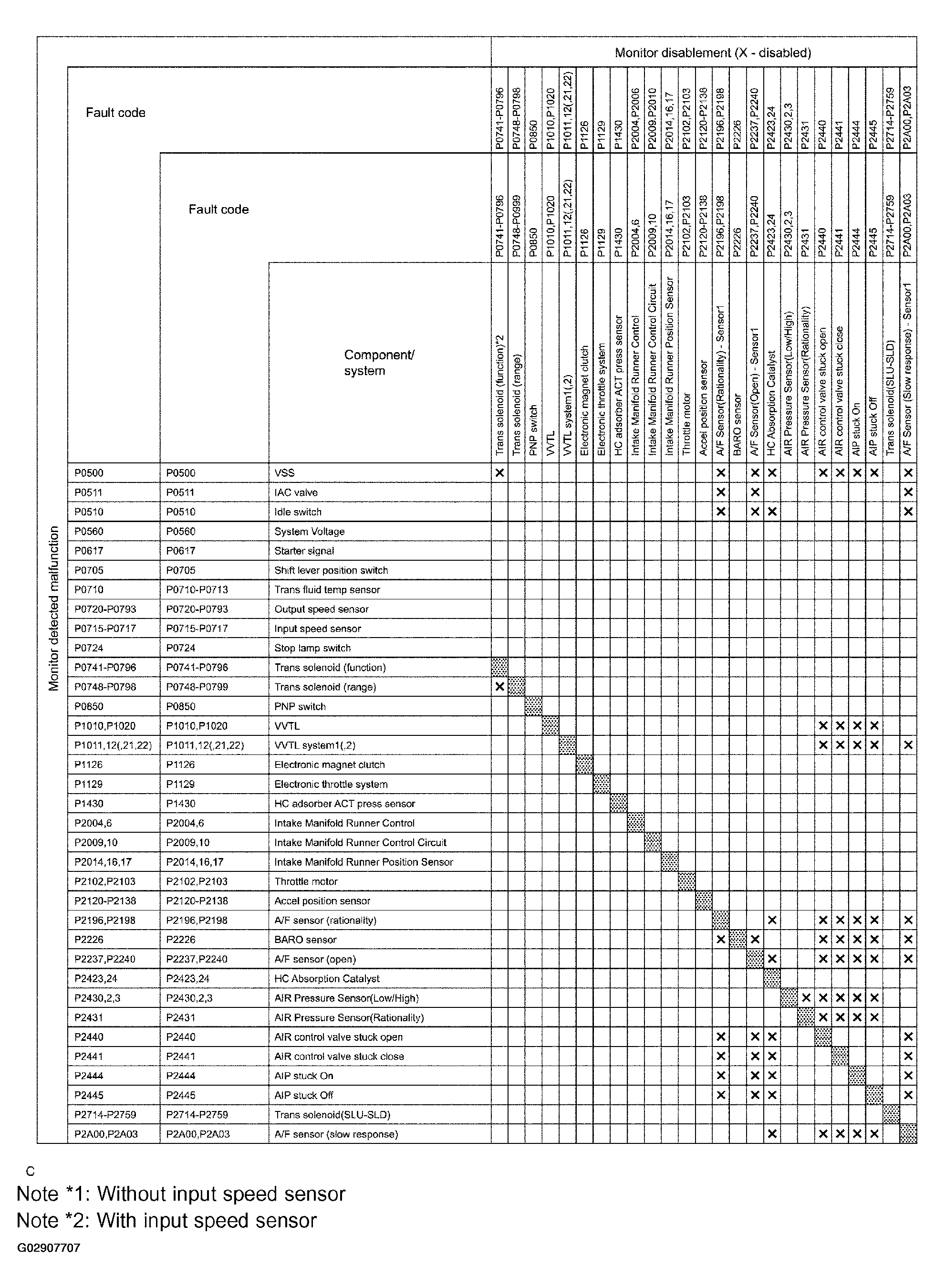

Fig 5: Disabled Monitor Chart (5 Of 6)

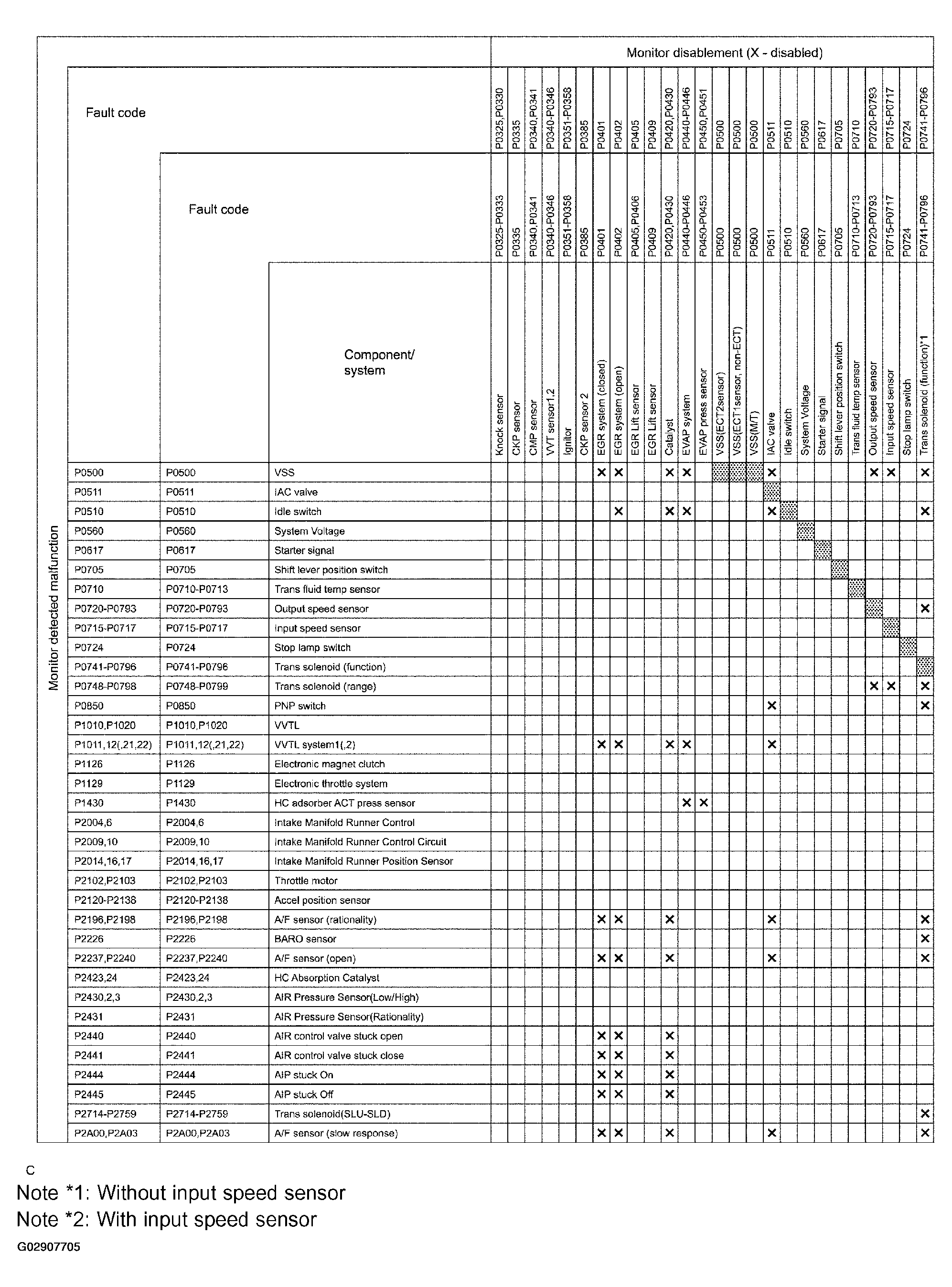

Fig 6: Disabled Monitor Chart (6 Of 6)
