Fail-Safe Chart

WARNING: This page is about a different variant/trim than selected.

If any of the following codes are recorded, the ECM enters fail-safe mode.

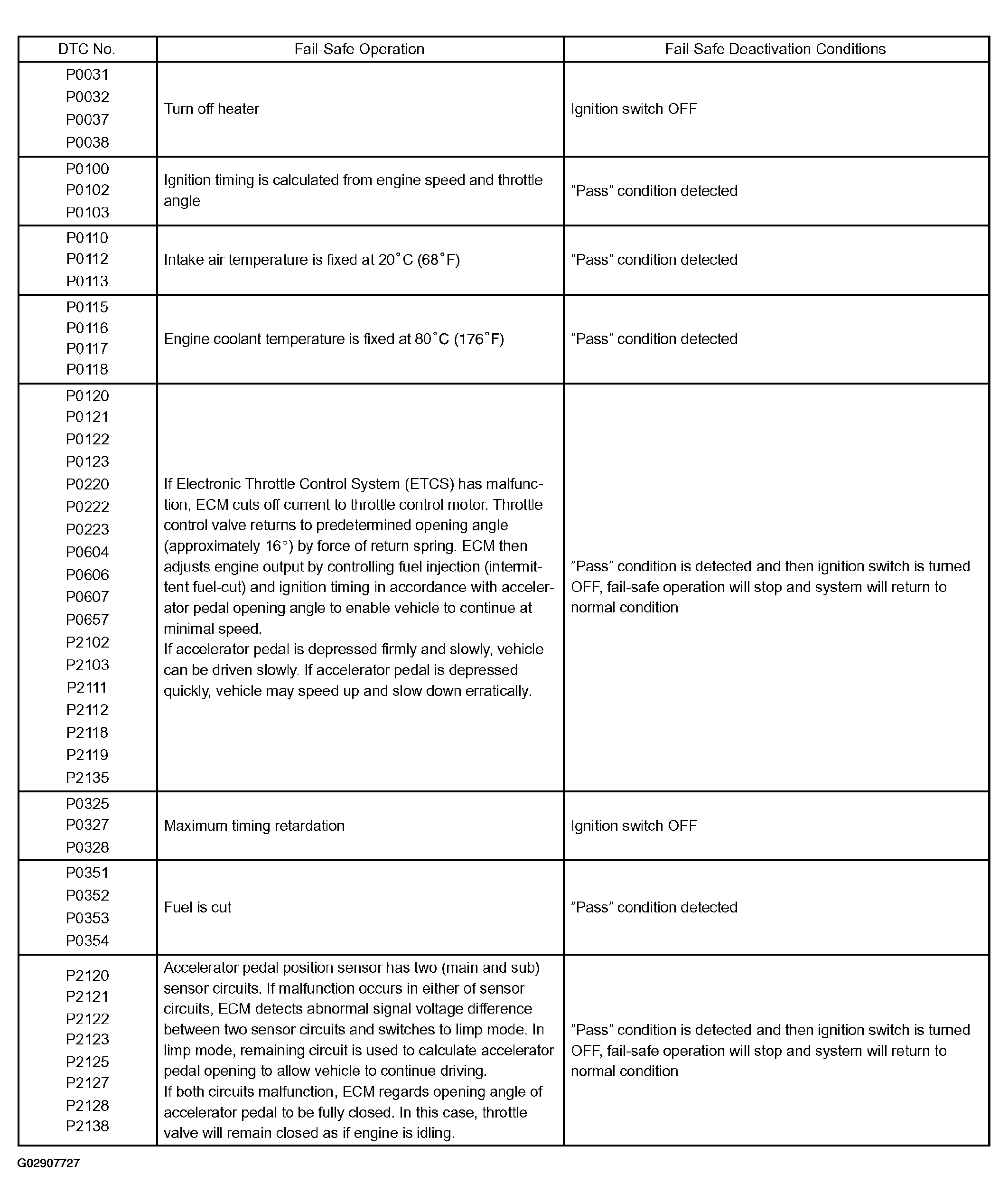

Fig 1: ECM Fail-Safe Mode Chart
G02907727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
