Section 1 (Engine Control System (SFI) - Diagnostics (2AZ-FE))
>>
EVAP Inspection Procedure
>>
Wiring Diagram
EVAP Inspection Procedure: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

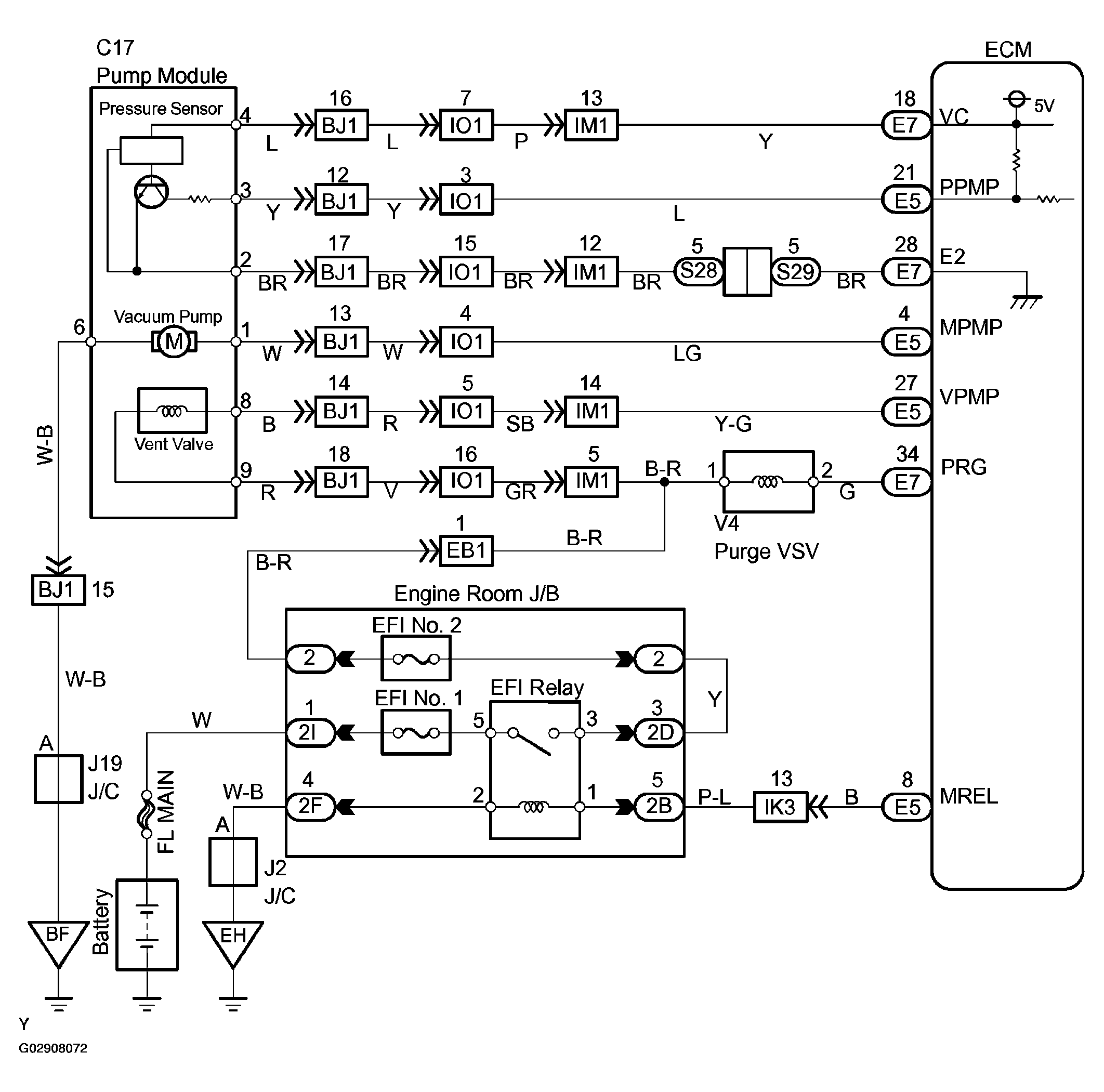

Fig 1: Pump Module ECM wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
