Related DTC Of EVAP

WARNING: This page is about a different variant/trim than selected.

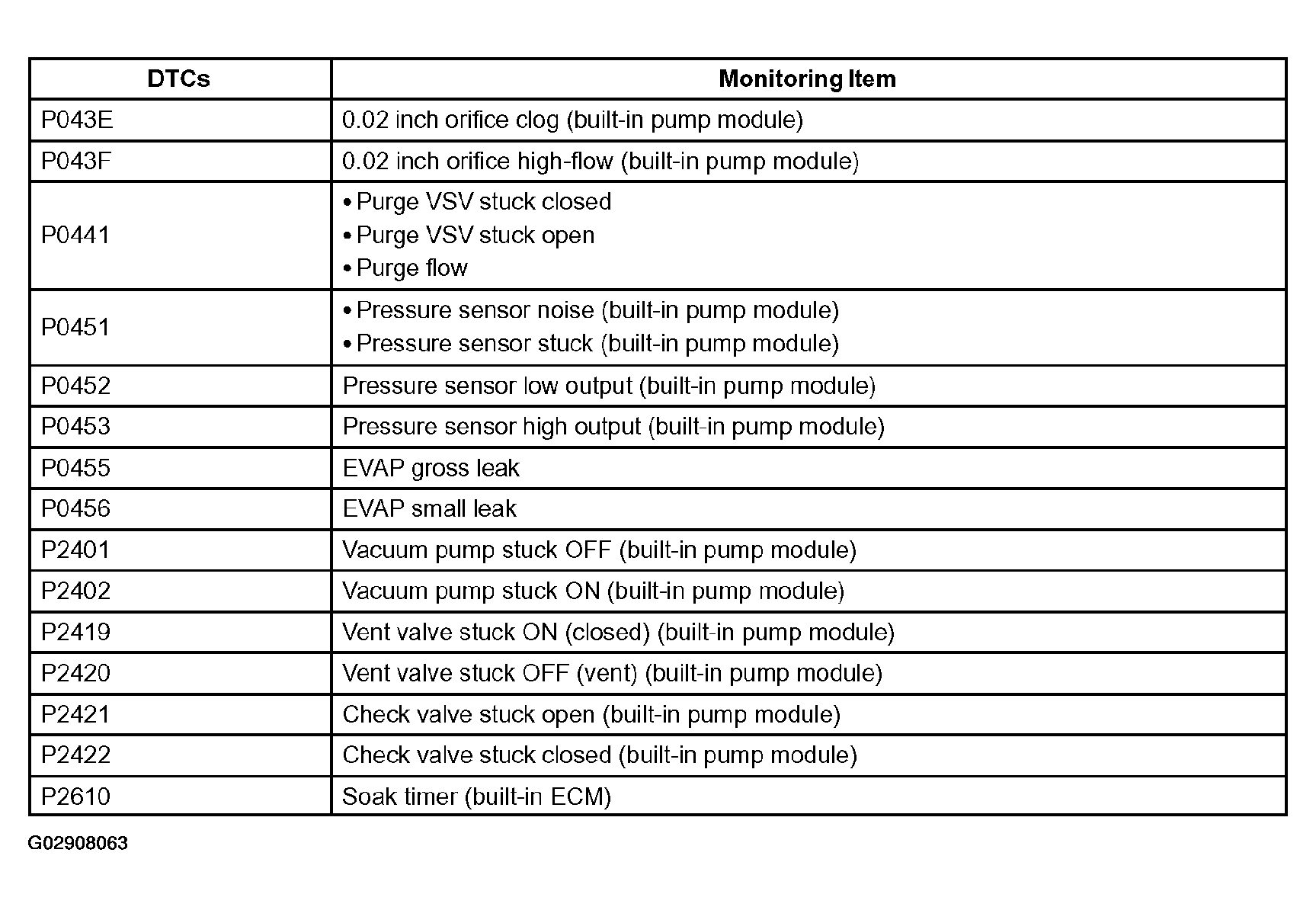

Fig 1: EVAP Related DTC And Monitoring Item Description Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the EVAP system's DTCs are set, the malfunctioning area can be determined with EVAP DTC'S MALFUNCTIONING AREA DETERMINING CHART.

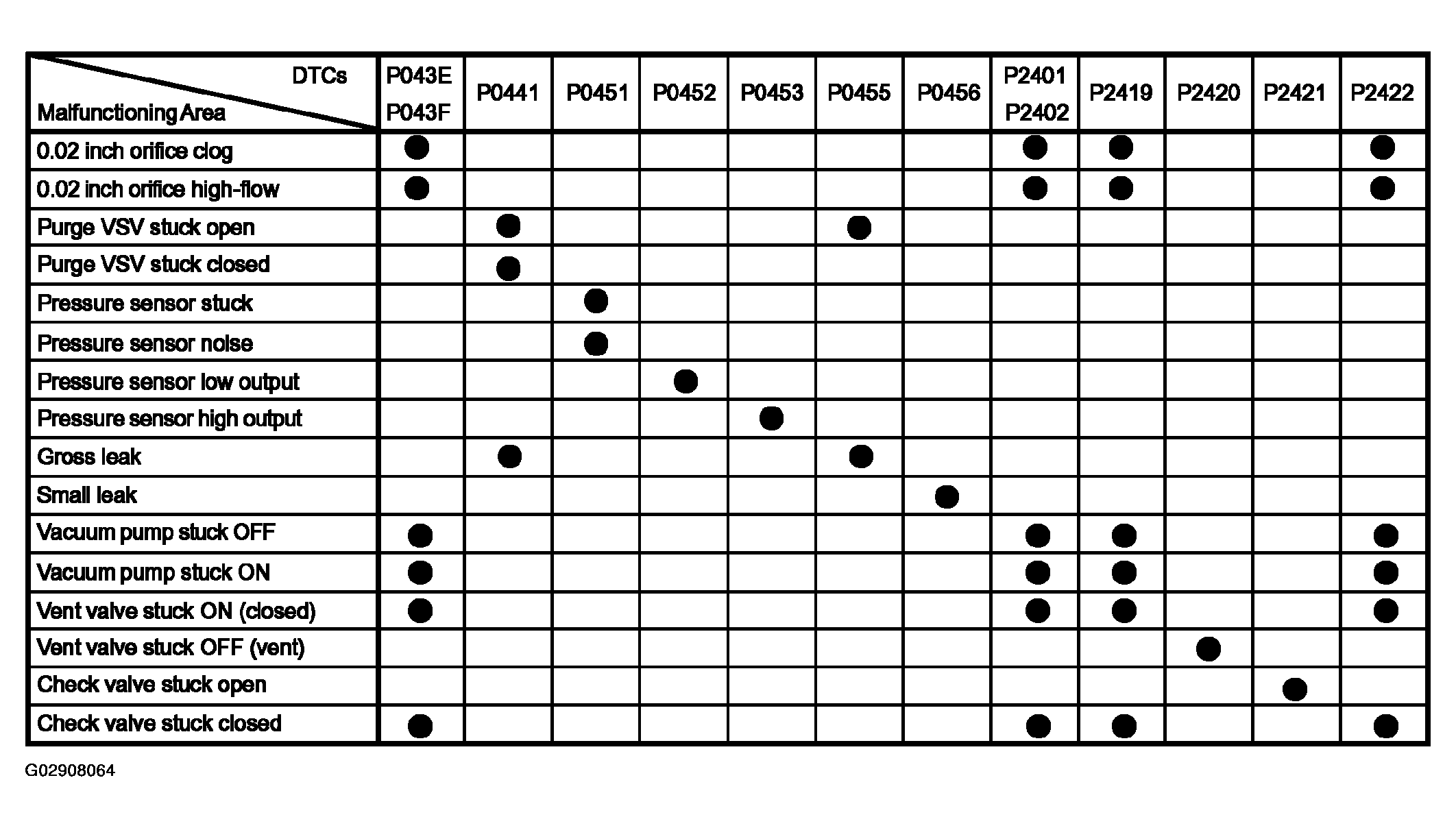

Fig 2: EVAP DTC'S Malfunctioning Area Determining Chart
