Section 1 (Engine Control System (SFI) - Diagnostics (2AZ-FE))
>>
EVAP Inspection Procedure
>>
Monitor Status
>>
TID $02: EVAP - Key-off Monitor (2004 Highlander, 2AZ-FE Engine)
TID $02: EVAP - Key-off Monitor (2004 Highlander, 2AZ-FE Engine)
WARNING:
This page is about a different variant/trim than selected.

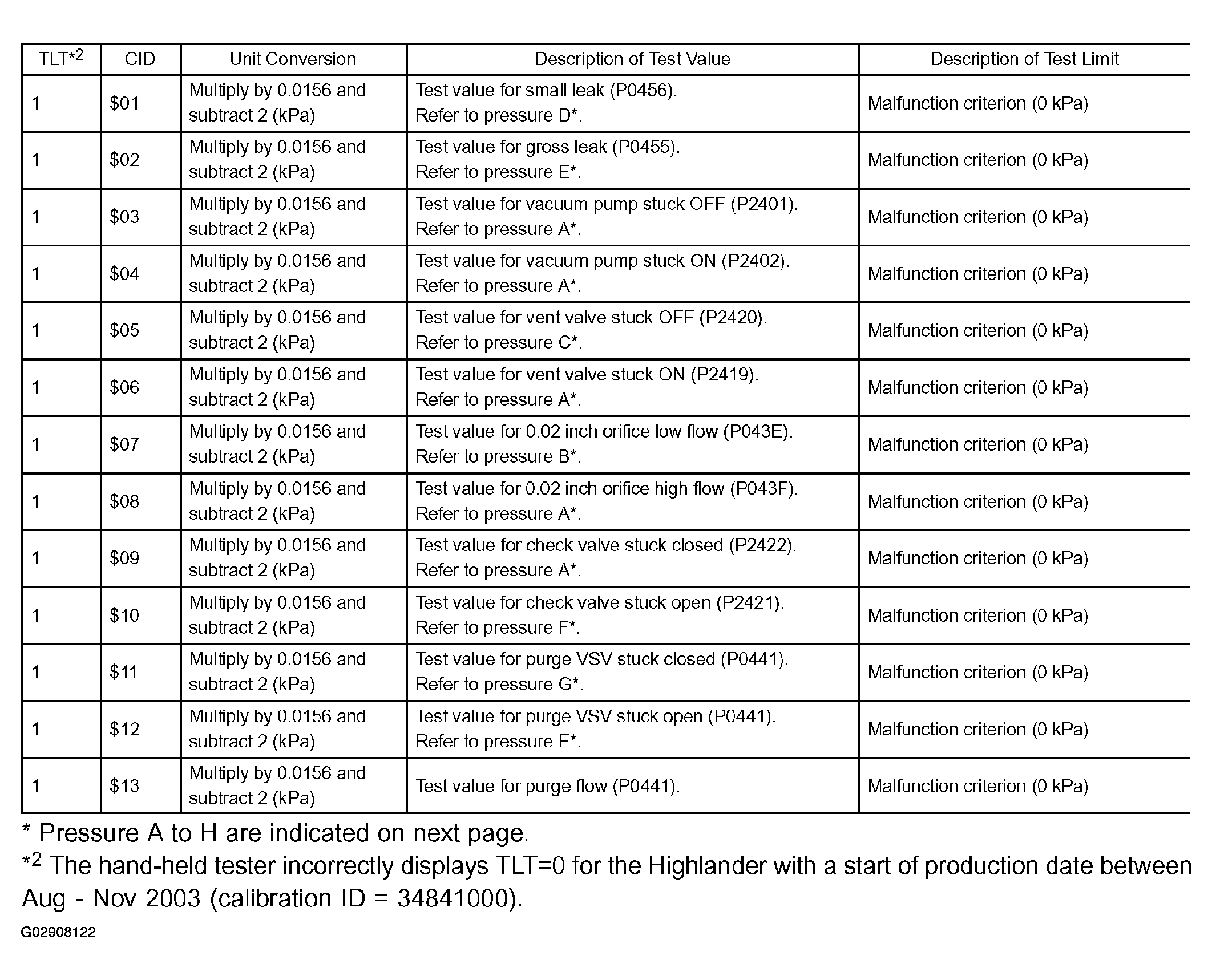

Fig 1: Test Identification Data Chart (EVAP - Key-Off Monitor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

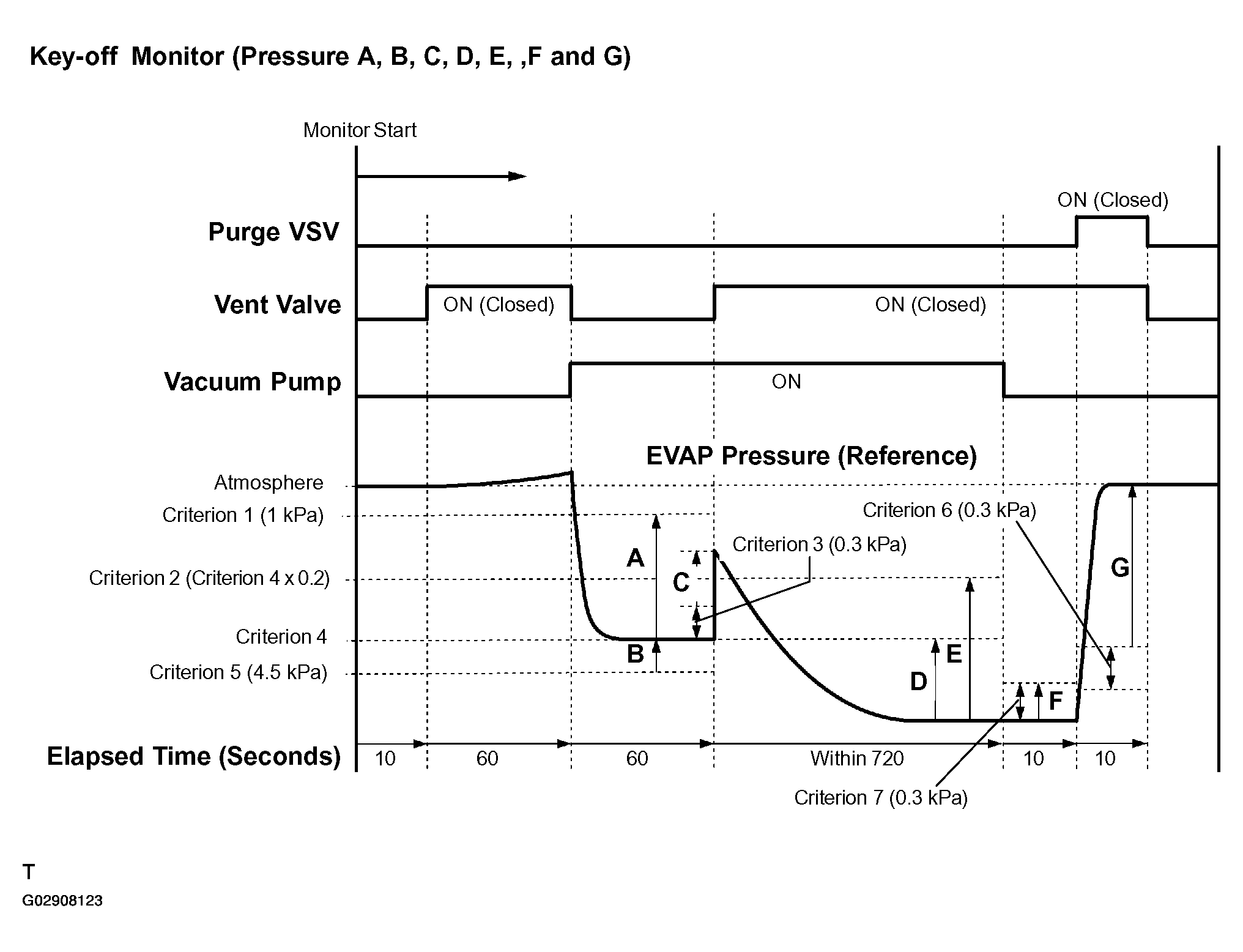

Fig 2: EVAP - Key-Off Monitor Pressure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

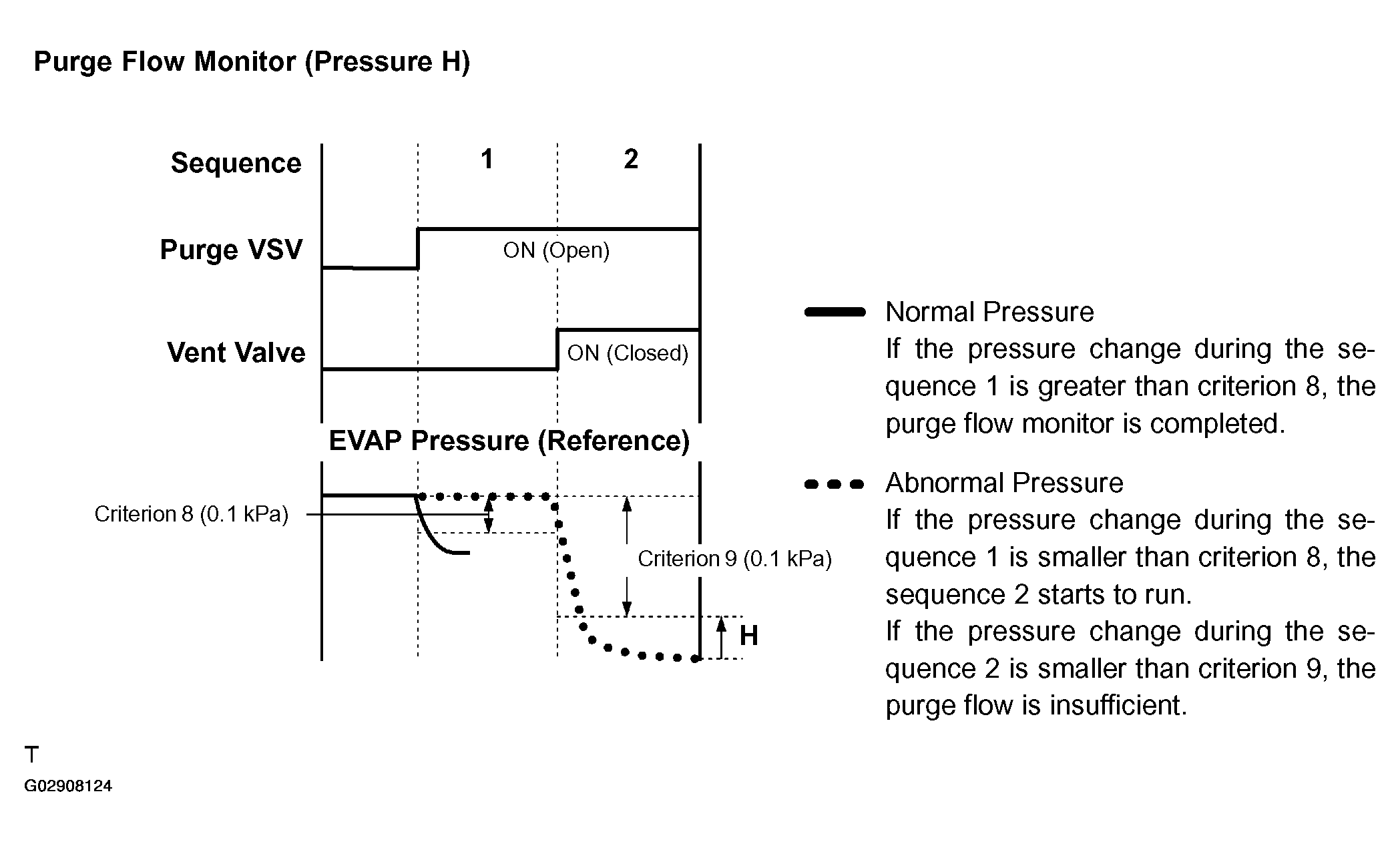

Fig 3: EVAP - Purge Flow Monitor Pressure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
