Purge flow monitor

If EVAP system pressure change is less than 7.5 mmHg (1 kPa) when the engine is running and the purge VSV is turned ON (closed), the ECM determines that the purge flow is insufficient.

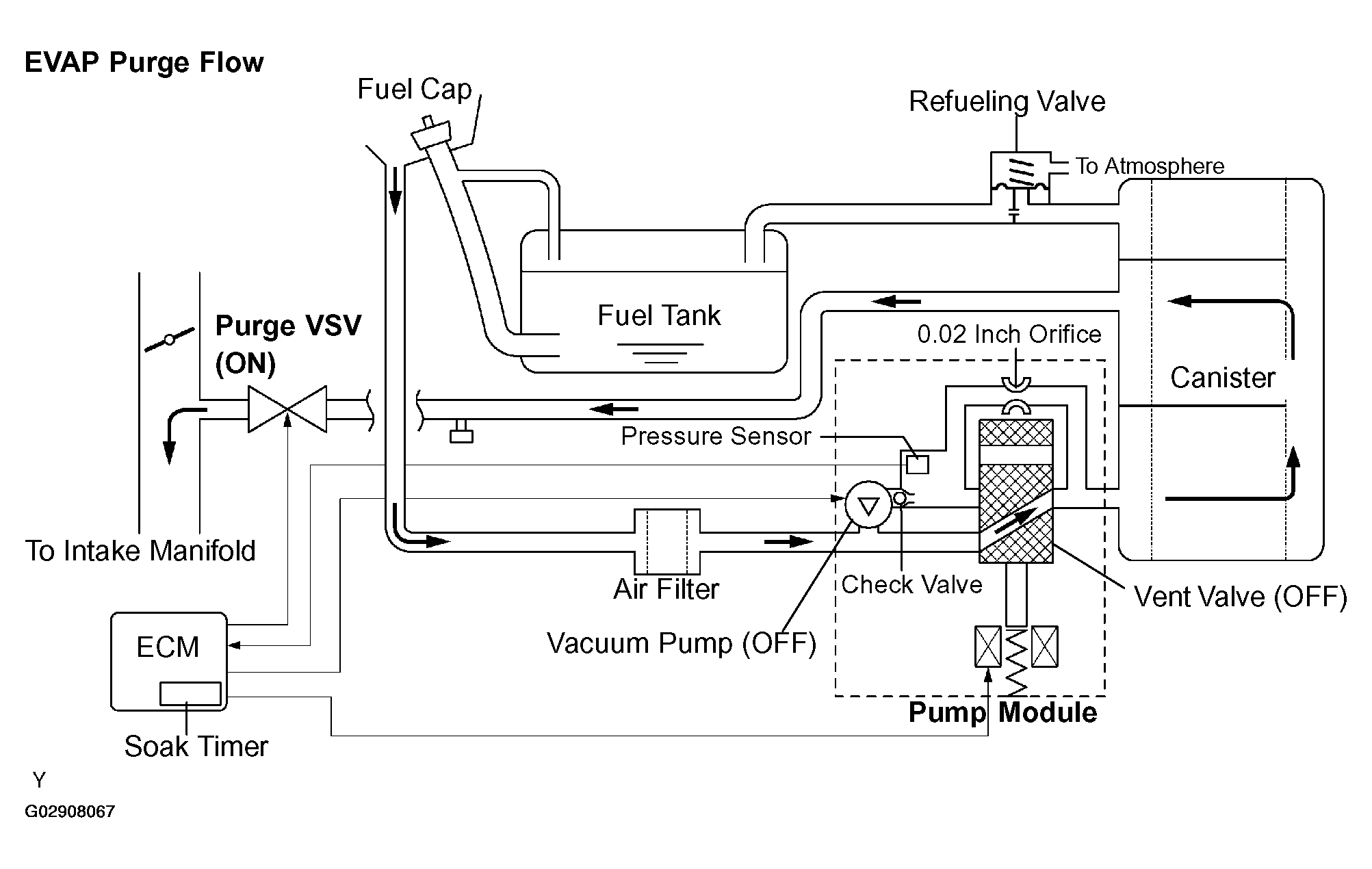

Fig 1: EVAP Purge Flow Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

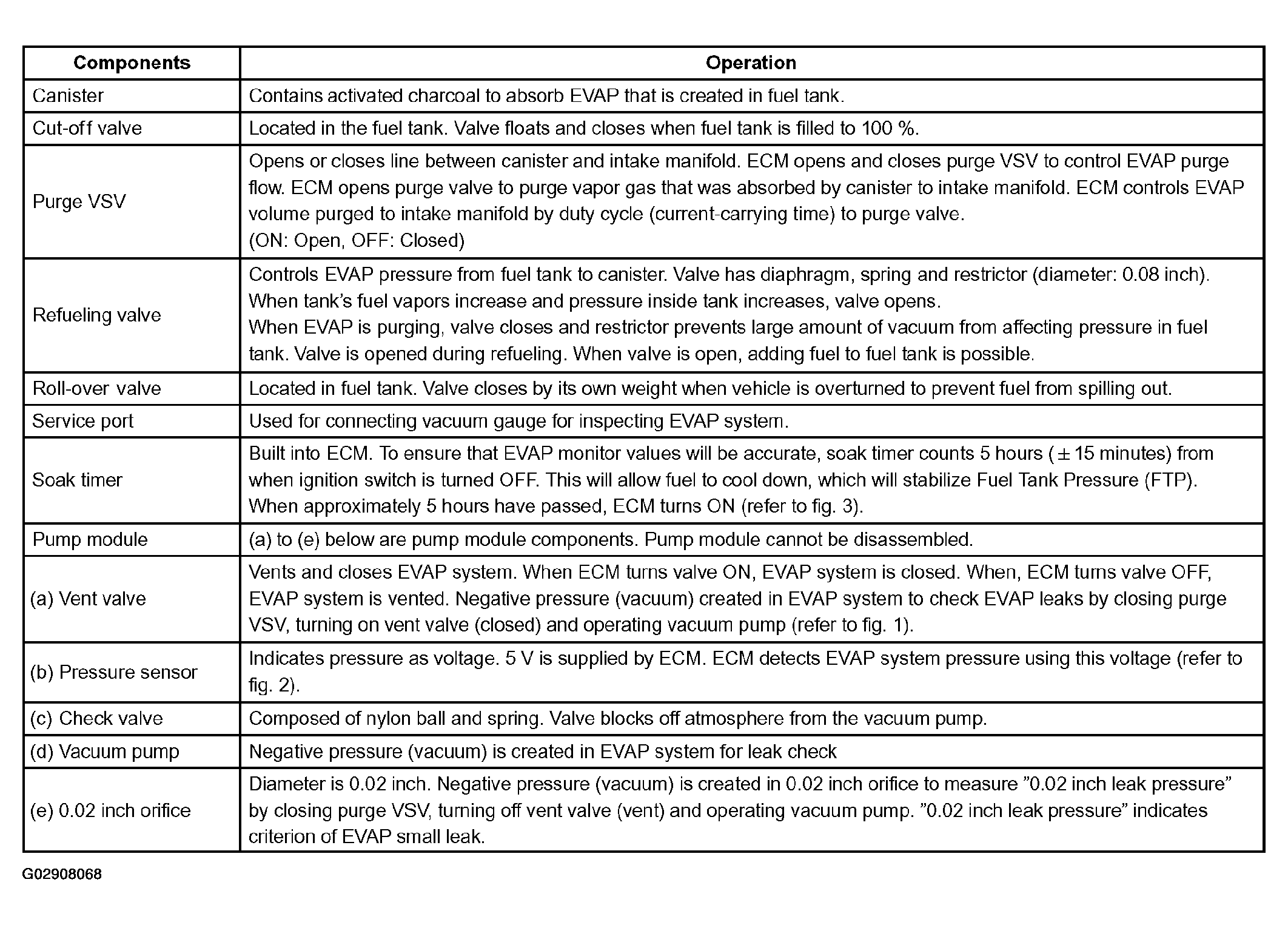

Fig 2: Purge Flow Monitor Components Operation Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

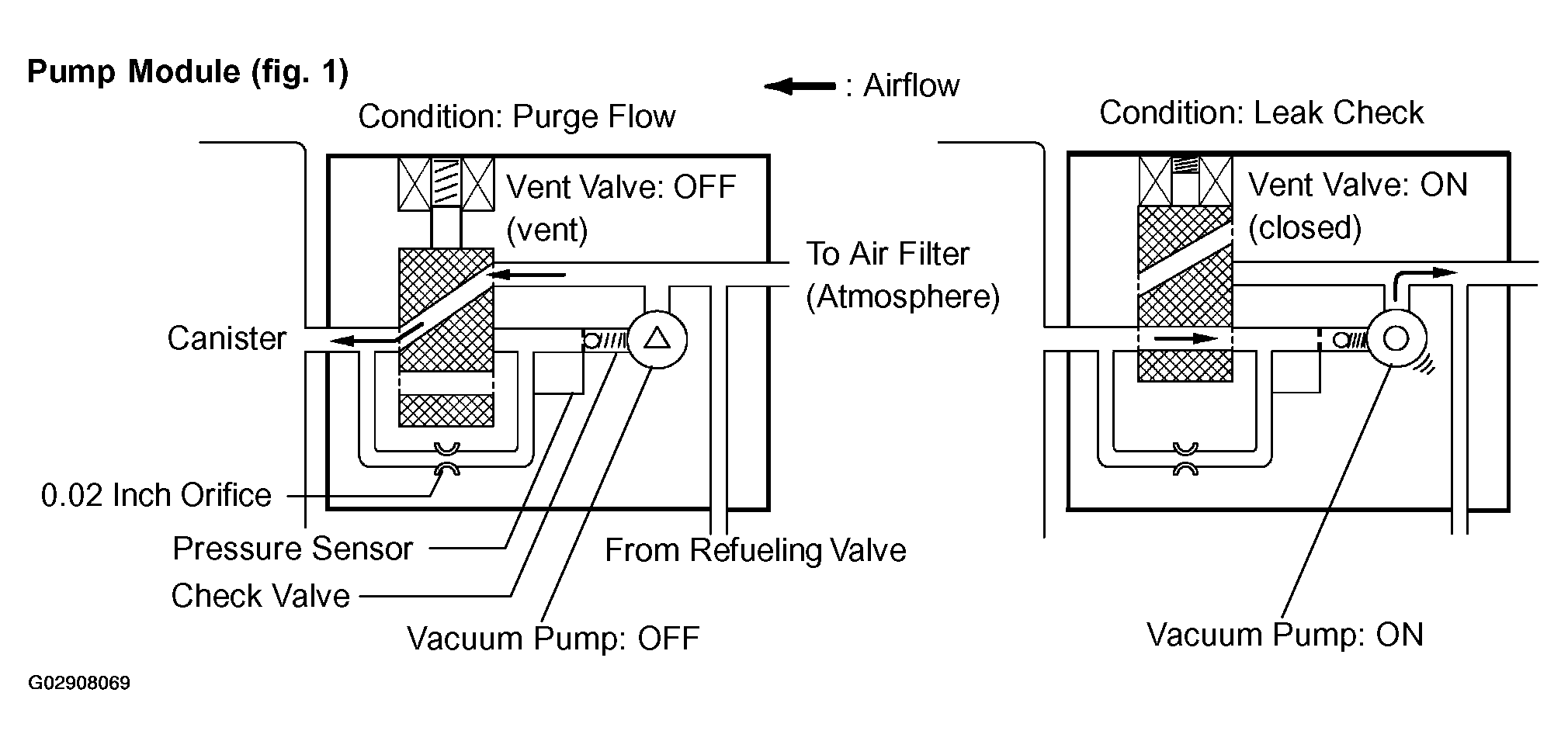

Fig 3: Pump Module On/Off Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

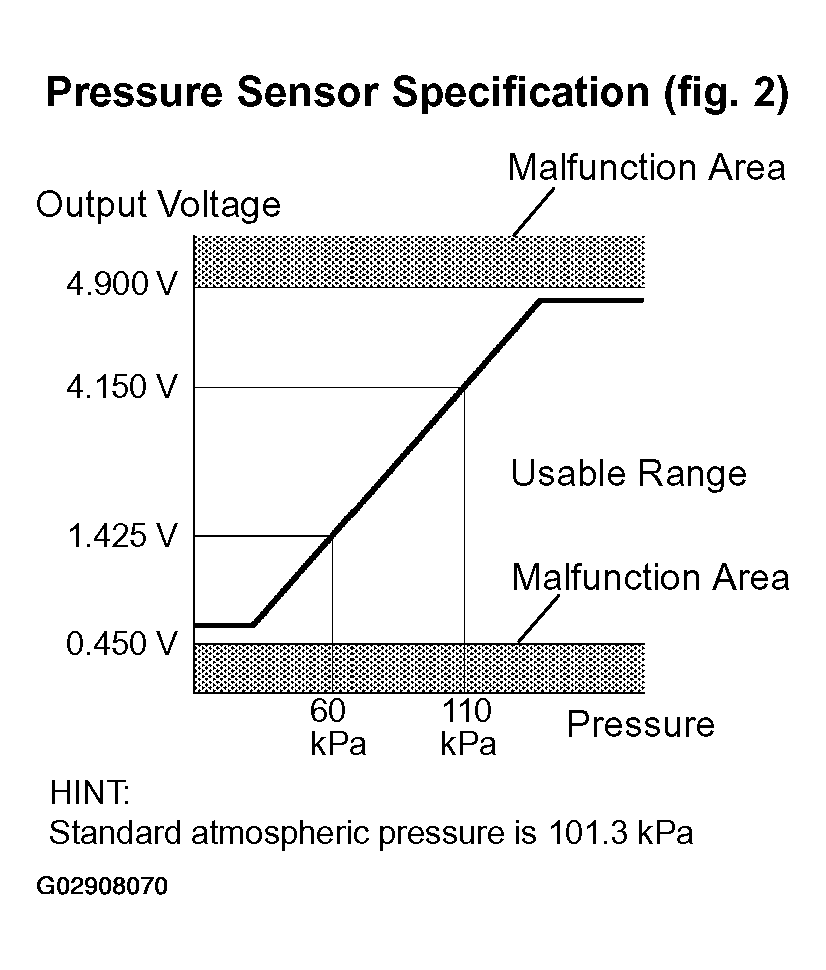

Fig 4: Pressure Sensor Output Voltage Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

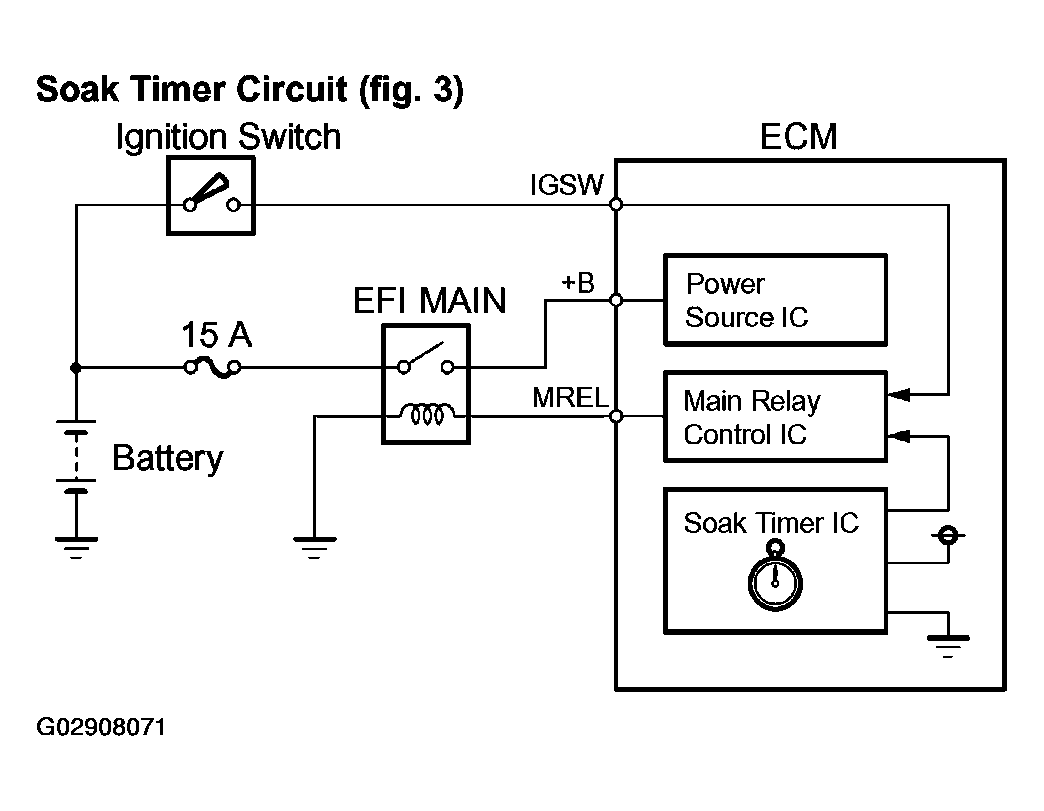

Fig 5: Soak Timer Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
