Data List/Active Test/System Check

WARNING: This page is about a different variant/trim than selected.

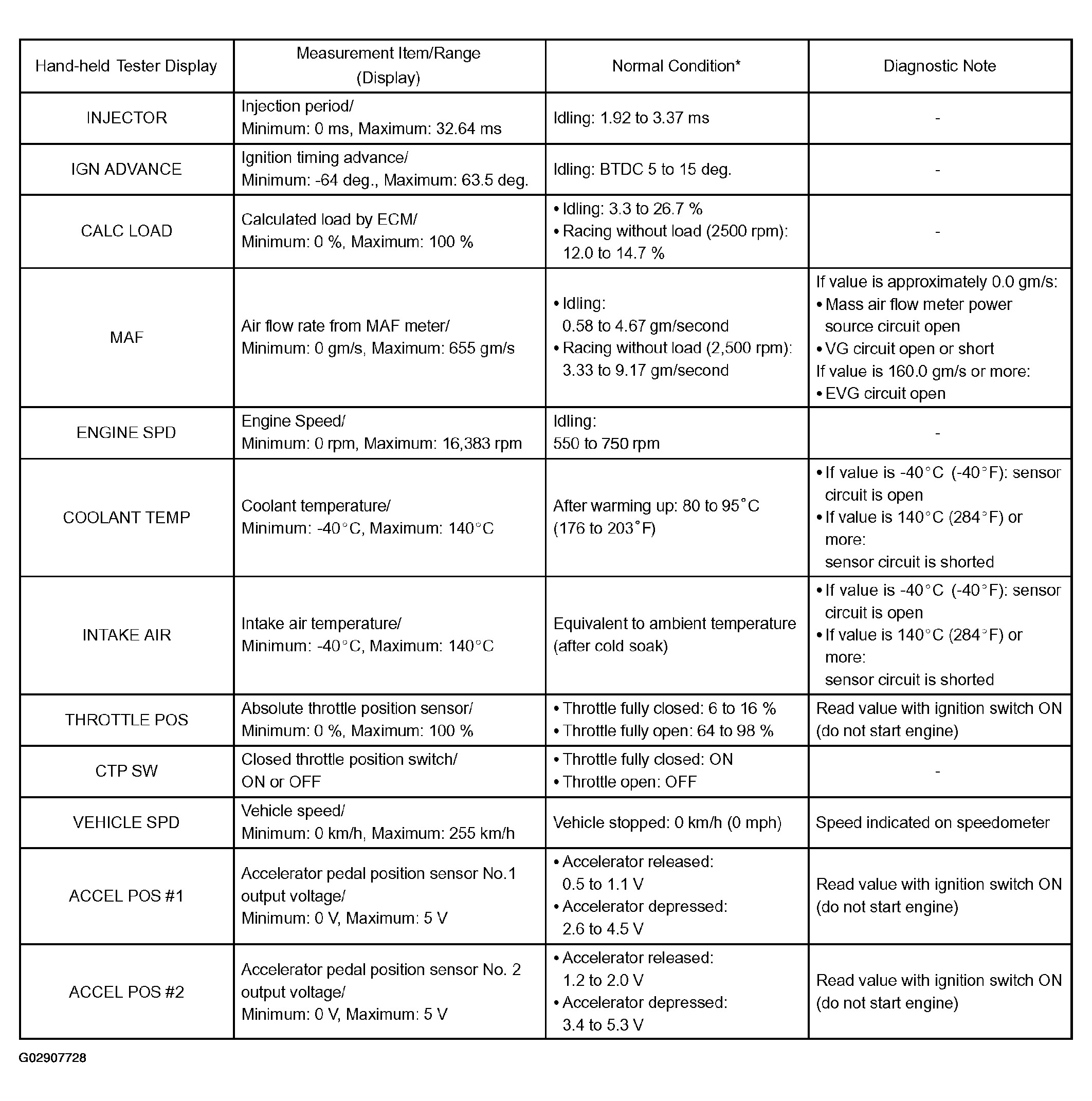

DATA LIST
HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

NOTE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on the these reference values when deciding whether a part is faulty or not.
1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester or the OBD II scan tool to the DLC3.
4. Turn the ignition switch ON.
5. Turn ON the hand-held tester or the OBD II scan tool.
6. Enter the following menus: DIAGNOSIS/ENHANCED OBD II/DATA LIST.
7. According to the display on tester, read the "DATA LIST".

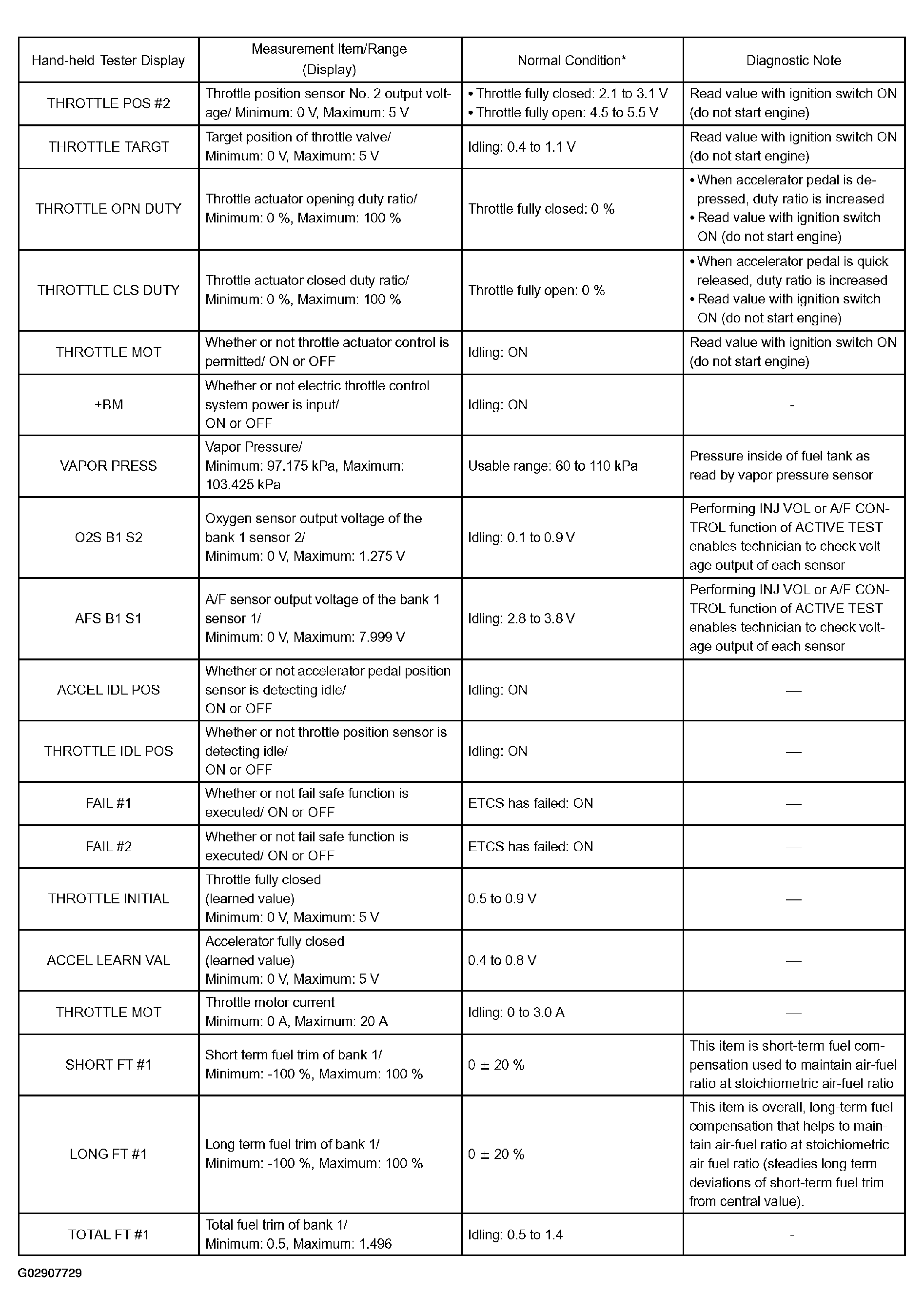

Fig 2: Hand Held Tester Data List (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

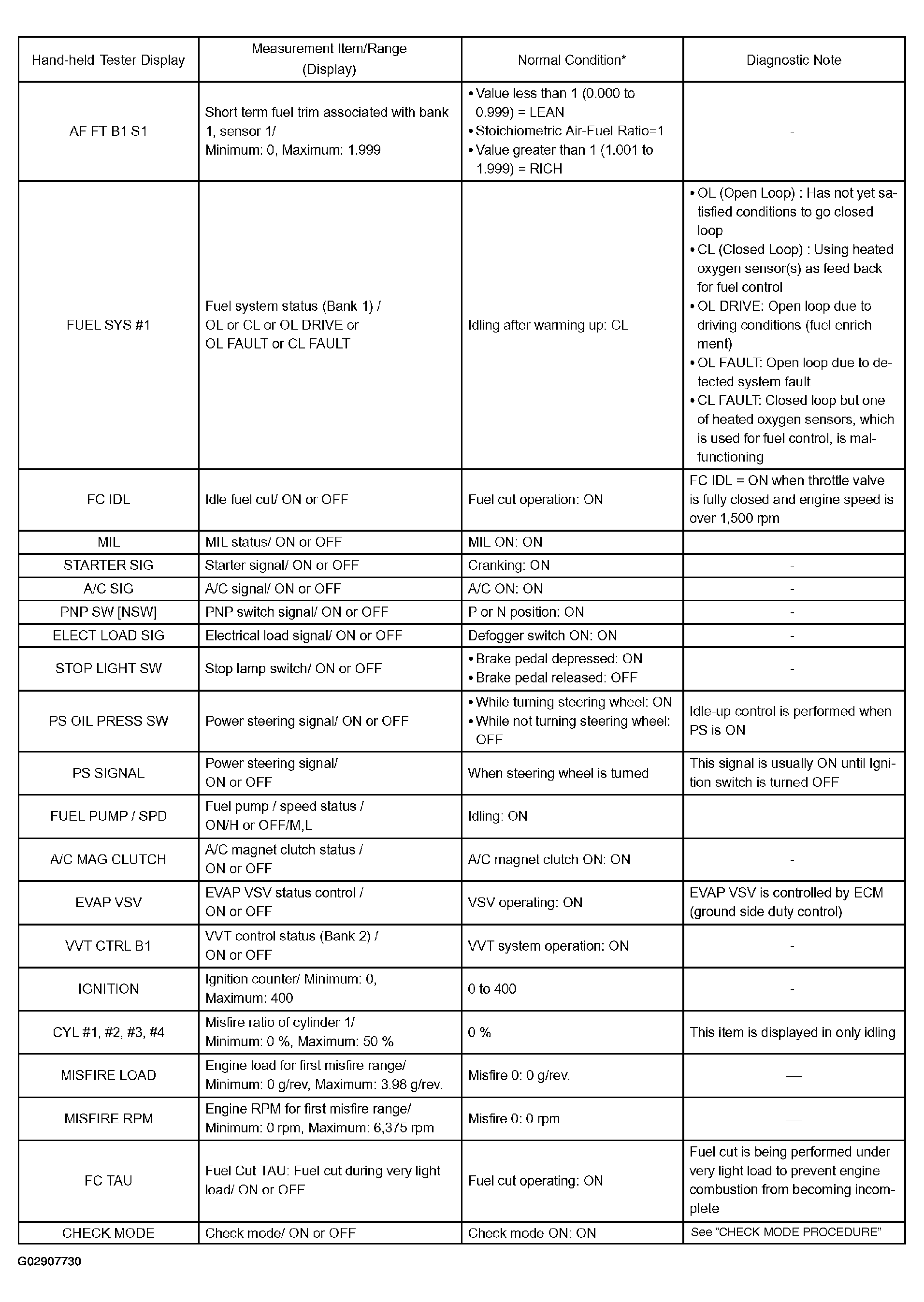

Fig 3: Hand Held Tester Data List (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: If no conditions are specifically stated for "ldling", the shift lever is in the N or P position, the A/C switch is OFF and all accessory switches are OFF.
ACTIVE TEST
HINT:

Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.
1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester or the OBD II scan tool to the DLC3.
4. Turn the ignition switch ON.
5. Turn ON the hand-held tester or the OBD II scan tool.
6. Enter the following menus: DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST.
7. According to the display on tester, perform the "ACTIVE TEST.

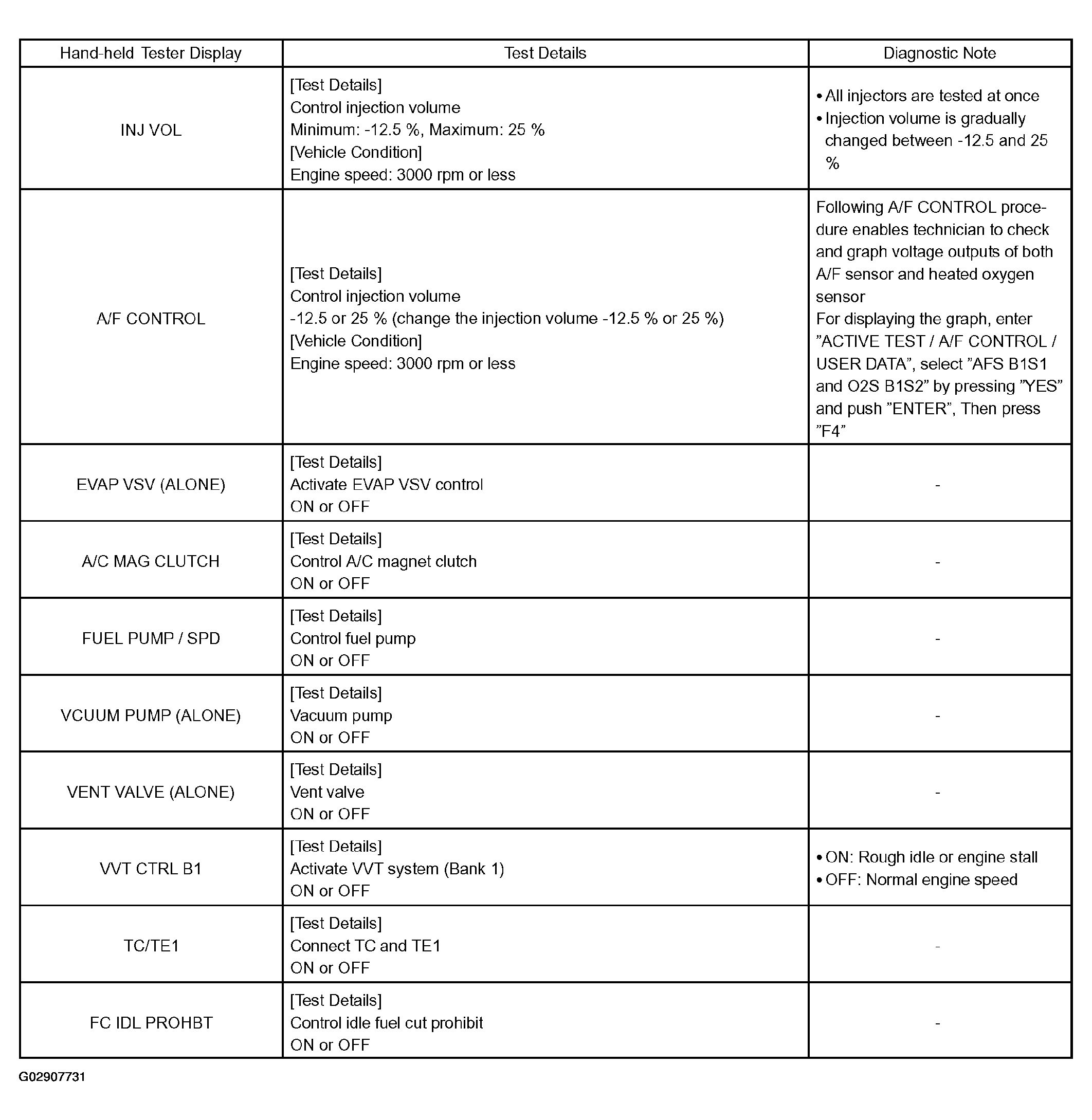

  Fig 4: Hand Held Tester Active Test Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 5: Hand Held Tester Active Test Chart (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SYSTEM CHECK
HINT:

Performing the hand-held tester SYSTEM CHECK allows the system which is composed of multiple actuators to be operated without removing any parts.

Operate the system by performing SYSTEM CHECK and check for DTCs. And, potential malfunctions in the system can be detected on the tester.
1. Connect the hand-held tester to the DLC3.
2. Turn ON the ignition switch and the hand-held tester.
3. Enter the following menus: DIAGNOSIS/ENHANCED OBD II/SYSTEM CHECK.
4. According to the display on the tester, perform the "SYSTEM CHECK.

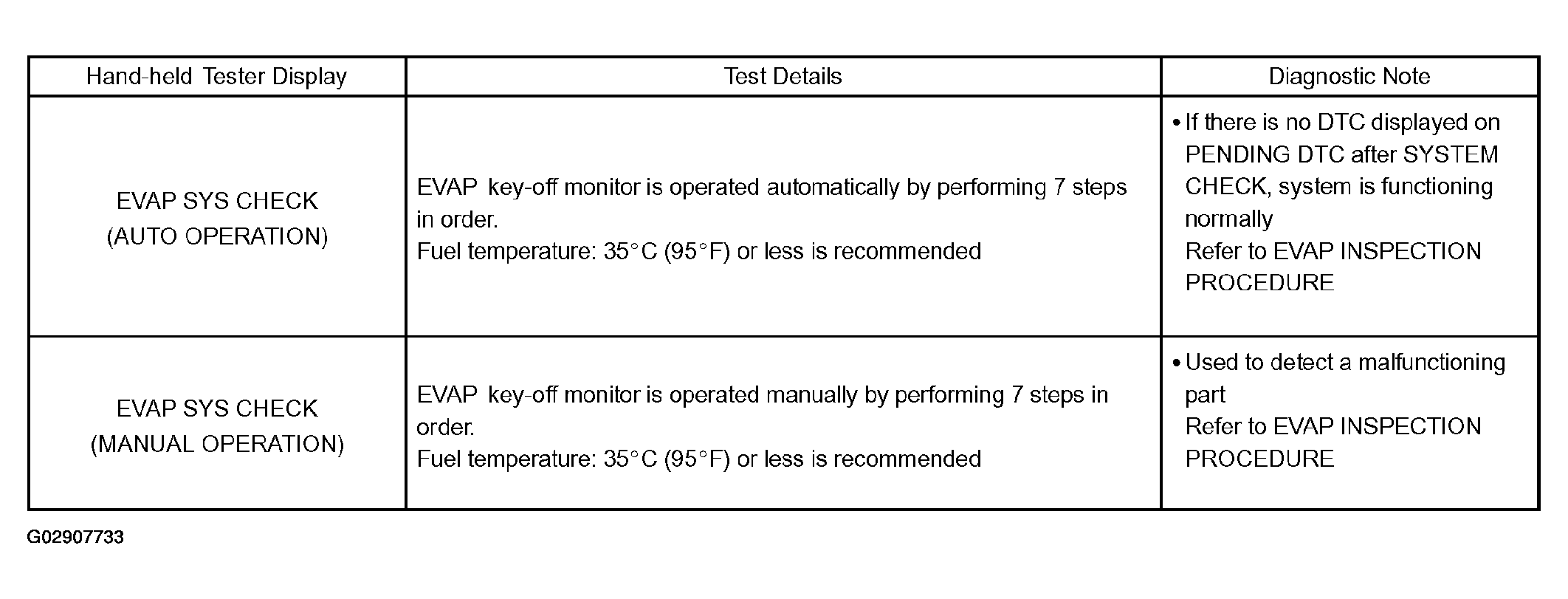

  Fig 6: Hand Held Tester System Check Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
