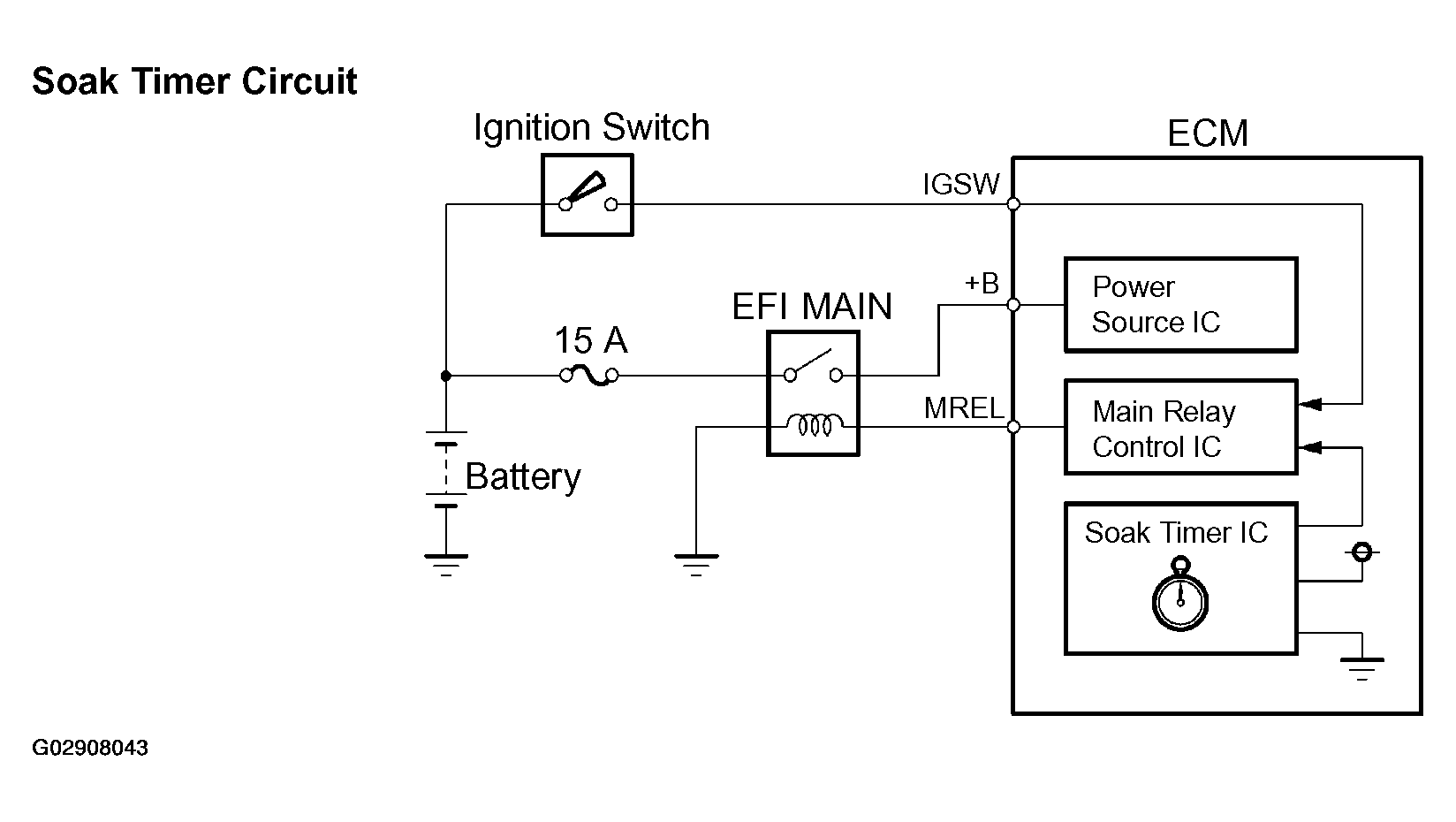

Circuit Description
WARNING: This page is about a different variant/trim than selected.
The soak timer is built into the ECM. To ensure that the EVAP monitor values will be accurate, the soak timer counts 5 hours (+/-15 minutes) from when the ignition switch is turned OFF. This will allow the fuel to cool down, which will stabilized the Fuel Tank Pressure (FTP). When 5 hours passed, the ECM turns ON.
DTC TROUBLE DETECTION (DTC - P2610)
| DTCs | Monitoring Item | Malfunction Condition | Trouble Area | Detection Timing | Detection Period |
|---|---|---|---|---|---|
| P2610 | Soak timer (built-in ECM) | ECM internal malfunction | ECM | Engine running | 2 trips |
