Circuit Description

WARNING: This page is about a different variant/trim than selected.

The circuit description can be found in the EVAP Inspection Procedure (see EVAP INSPECTION PROCEDURE ).

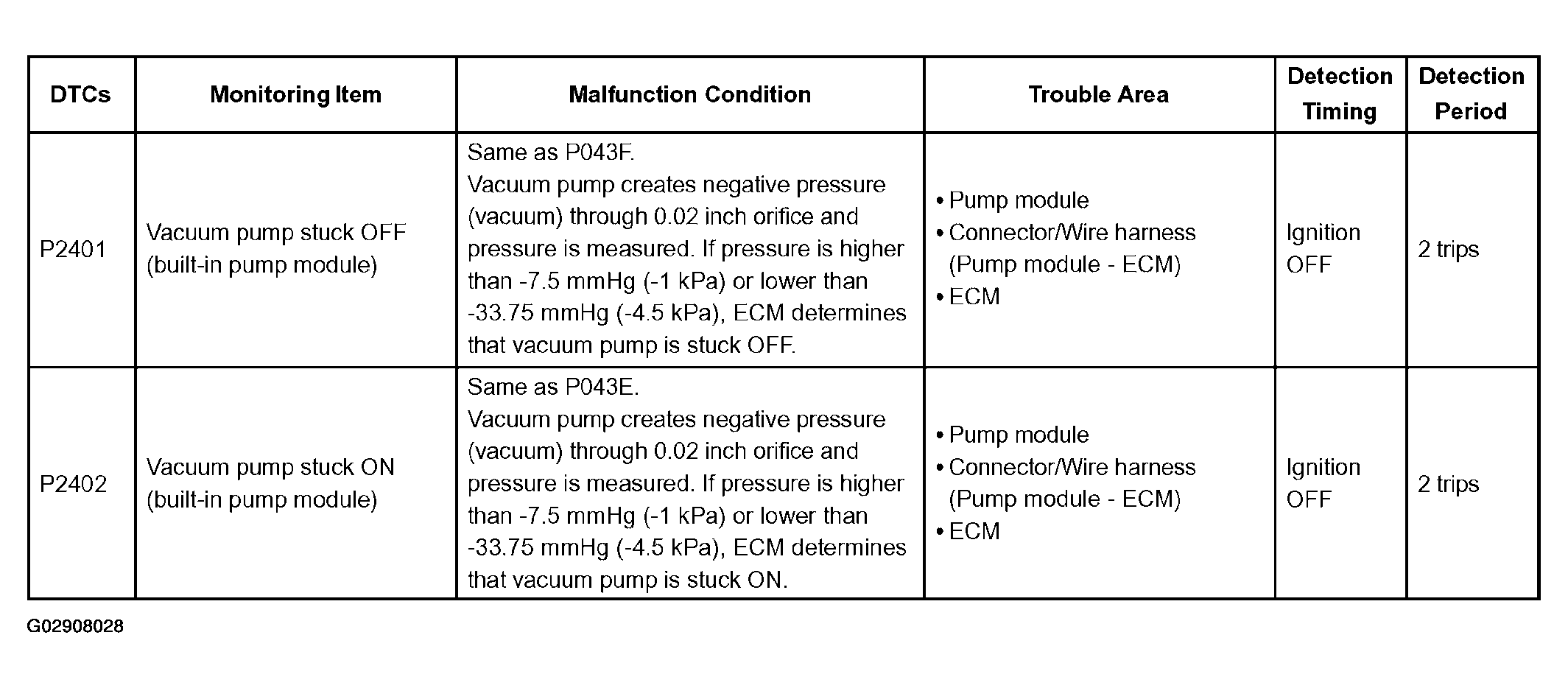

Fig 1: DTC Trouble Detection Chart (DTC - P2401/2402)
G02908028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
