Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to wiring in DTC P2195, P2196: OXYGEN (A/F) SENSOR SIGNAL STUCK (BANK 1 SENSOR 1) .

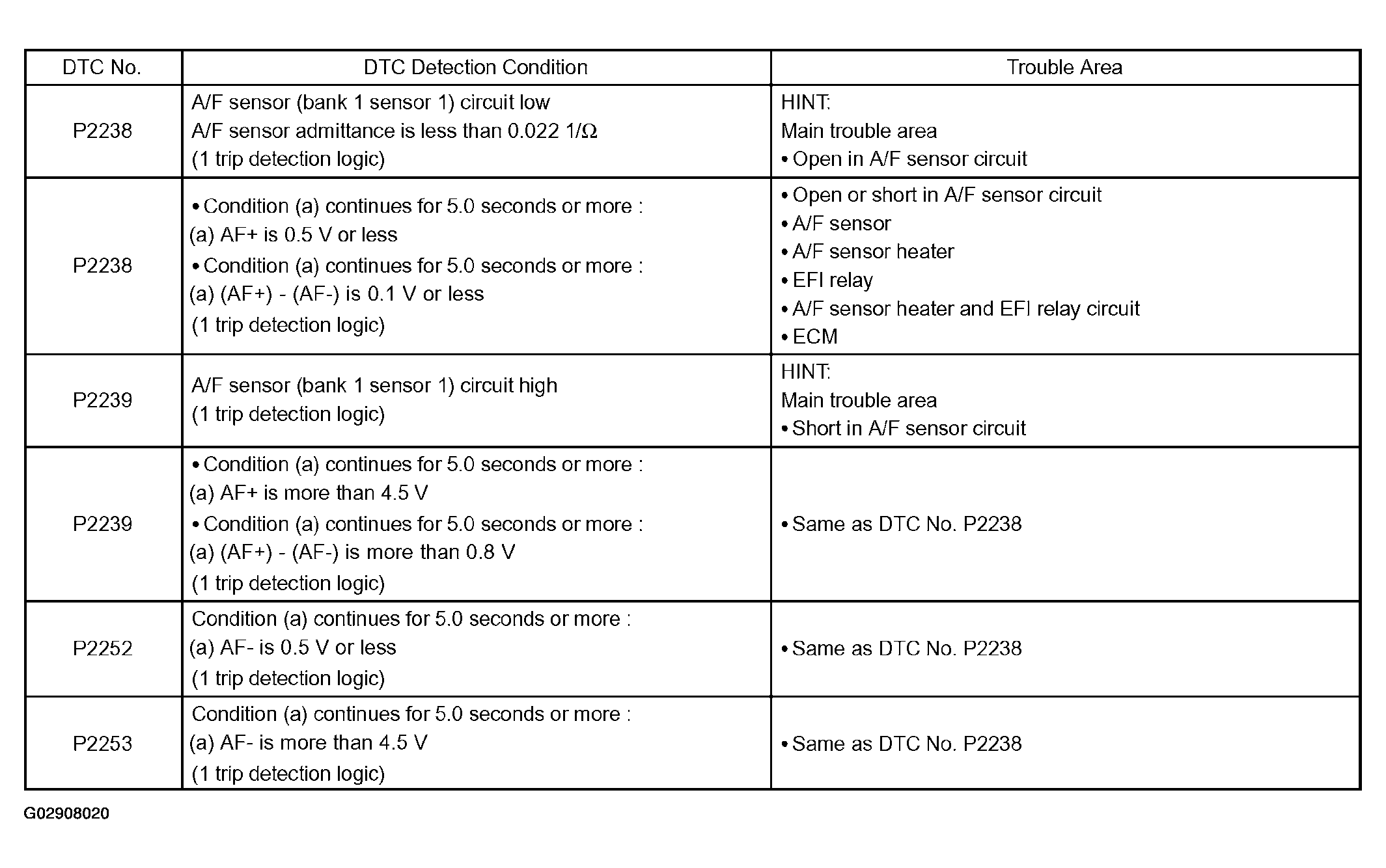

Fig 1: DTC Trouble Detection Chart (DTC - P2238/2239)
G02908020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
