DTC P2195, P2196: Oxygen (A/F) Sensor Signal Stuck (Bank 1 Sensor 1): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

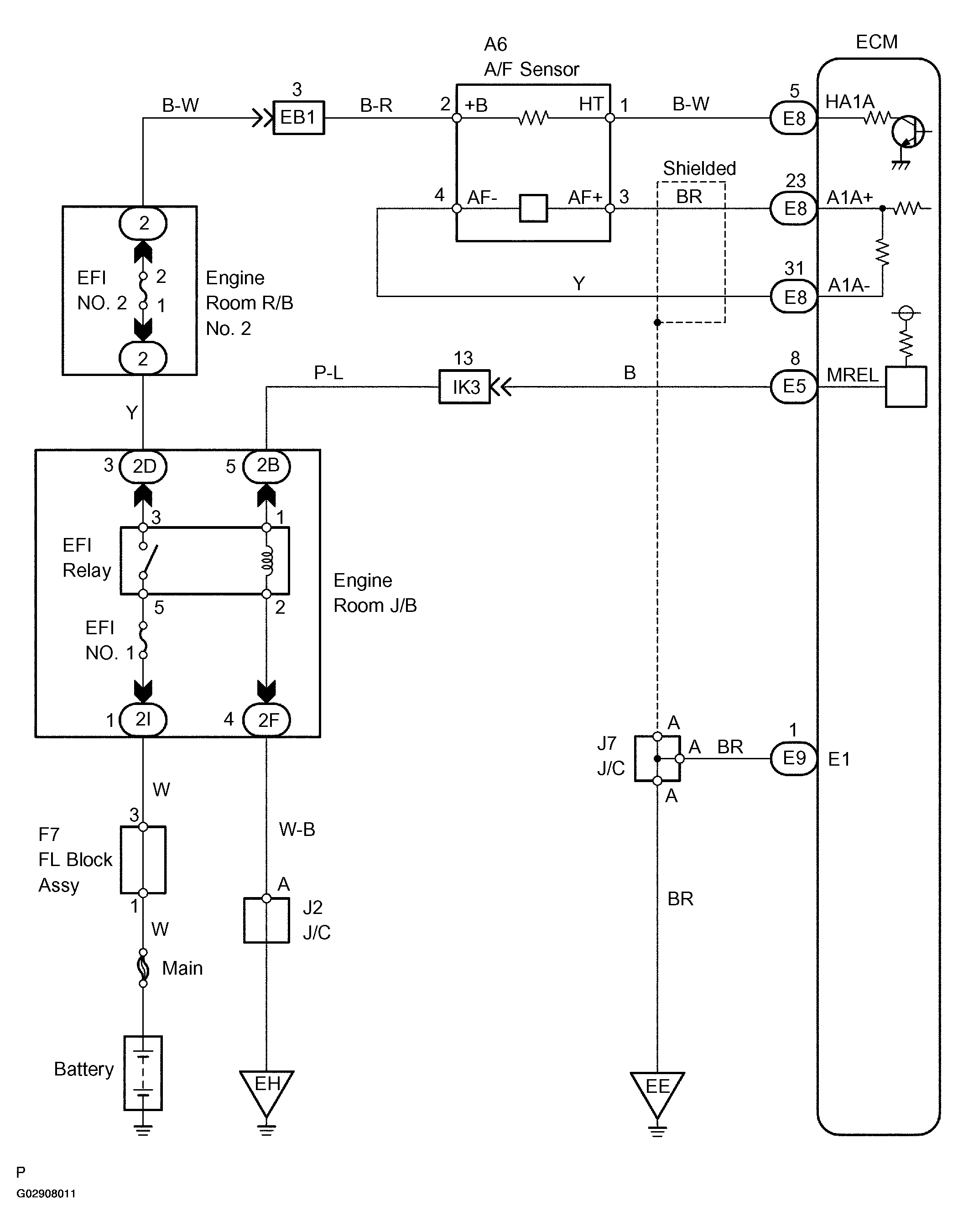

Fig 1: A/F Sensor Wiring Diagram
G02908011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
