Circuit Description

WARNING: This page is about a different variant/trim than selected.

The Air-Fuel ratio (A/F) sensor provides output voltage* approximately equal to the existing air-fuel ratio.

The A/F sensor output voltage is used to provide feedback for the ECM to control the air-fuel ratio.

With the A/F sensor output, the ECM can determine deviation from the stoichiometric air-fuel ratio and control proper injection time. If the A/F sensor is malfunctioning, the ECM is unable to accurately control air-fuel ratio.

The A/F sensor is equipped with a heater which heats the zirconia element. The heater is also controlled by the ECM. When the intake air volume is low (the temperature of the exhaust gas is low), current flows to the heater which heats the sensor to facilitate detection of accurate oxygen concentration. The A/F sensor is a planar type. Compared to a conventional type, the sensor and heater portions are narrower. Because the heat of the heater is conducted through the alumina to zirconia (of the sensor portion), sensor activation is accelerated.

To obtain a high purification rate of the CO, HC and NOx components of the exhaust gas, a three-way catalytic converter is used. The converter is most efficient when the air-fuel ratio is maintained near the stoichiometric air-fuel ratio.

HINT:

*: The voltage value changes the inside of the ECM only.

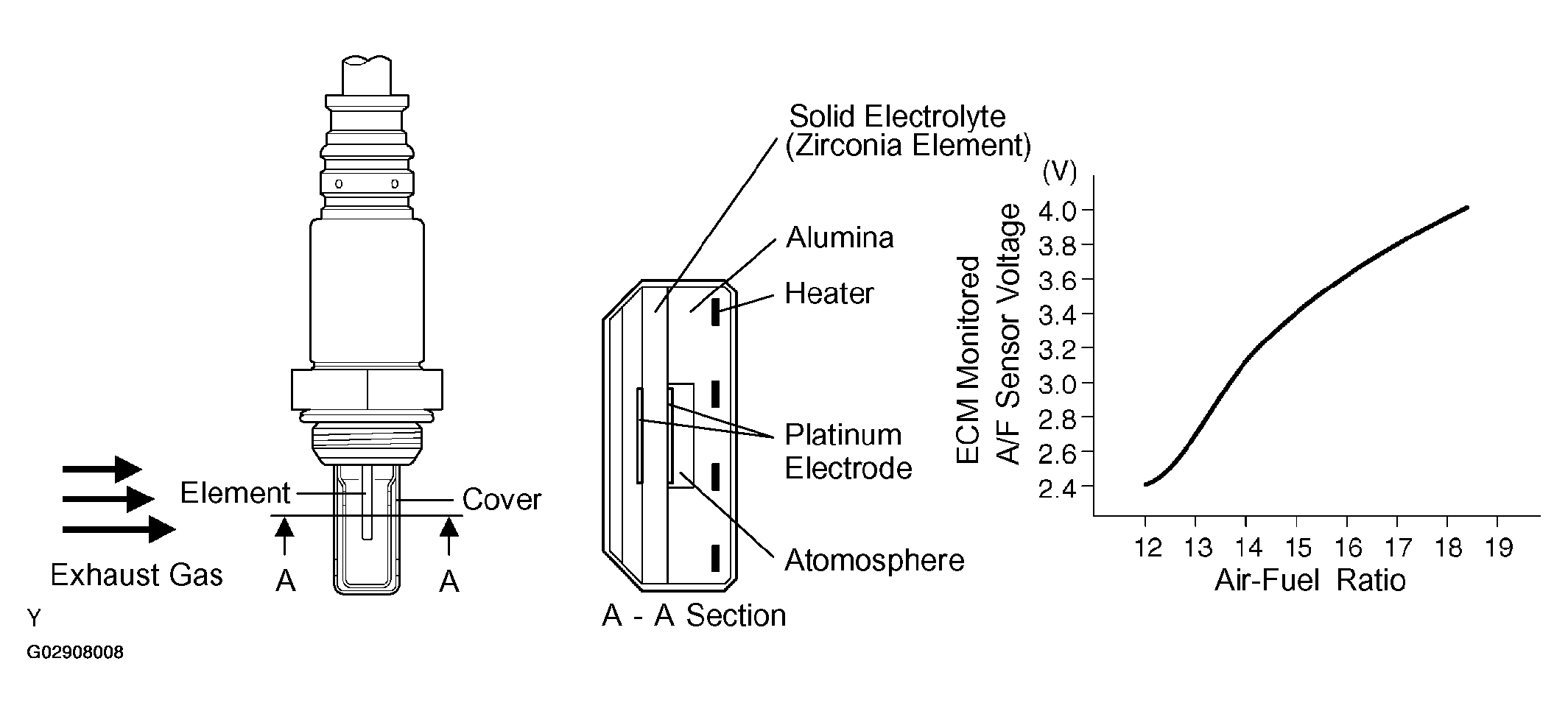

Fig 1: Identifying Air Fuel Sensor Components And A/F Ratio A/F Sensor Voltage Graph
G02908008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

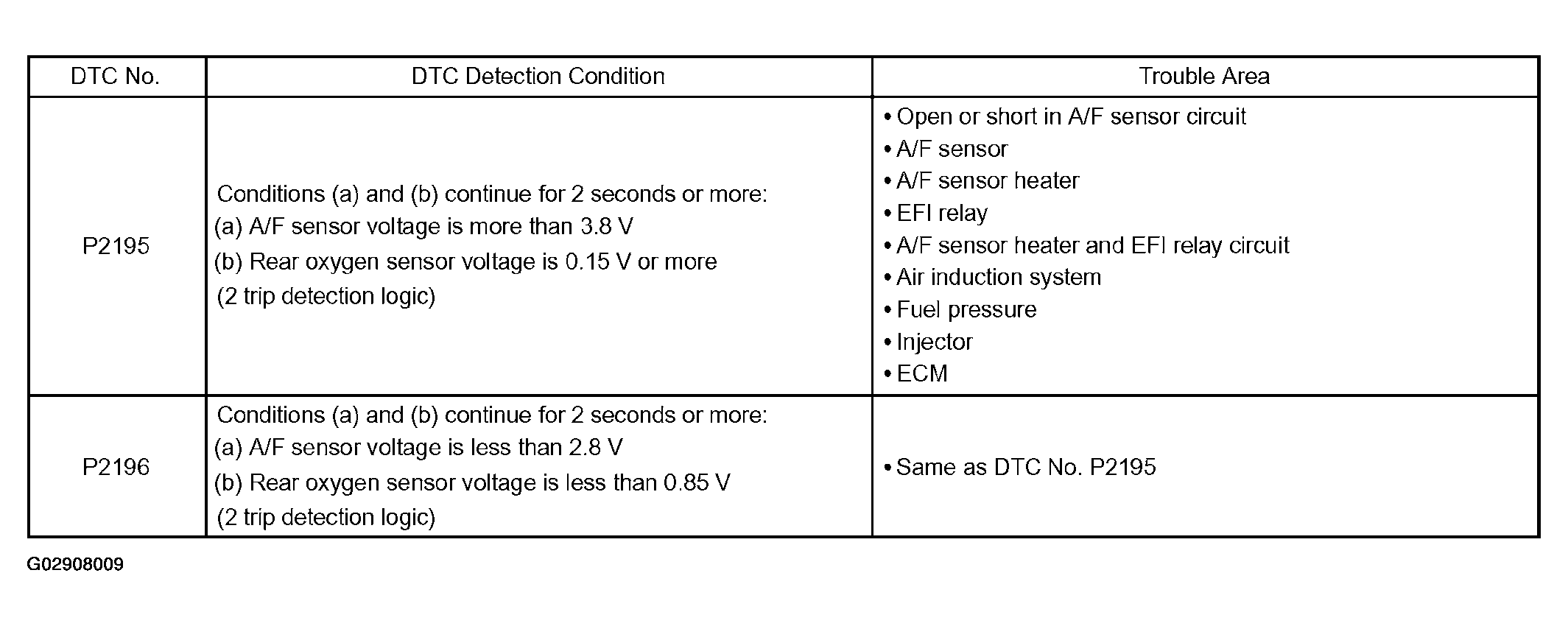

Fig 2: DTC Trouble Detection Chart (DTC - P2195/2196)
G02908009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
