Section 1 (Engine Control System (SFI) - Diagnostics (2AZ-FE))
>>
DTC P2120, P2122, P2123, P2125, P2127, P2128, P2138: Throttle/Pedal Position Sensor/Switch Circuit
>>
Wiring Diagram
DTC P2120, P2122, P2123, P2125, P2127, P2128, P2138: Throttle/Pedal Position Sensor/Switch Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

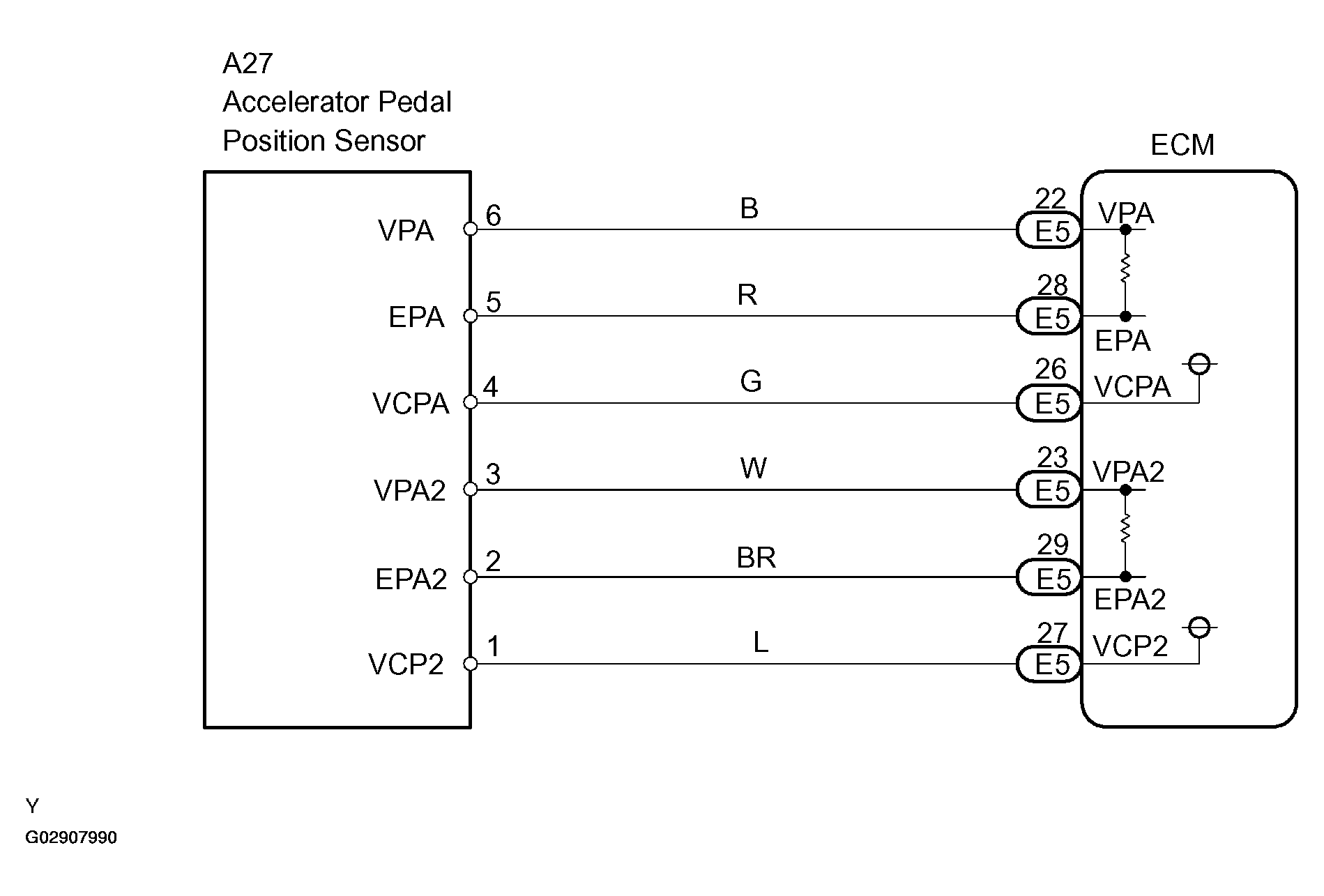

Fig 1: Accelerator Pedal Position Sensor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
