DTC P2118: Throttle Actuator Control Motor Current Range/Performance: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

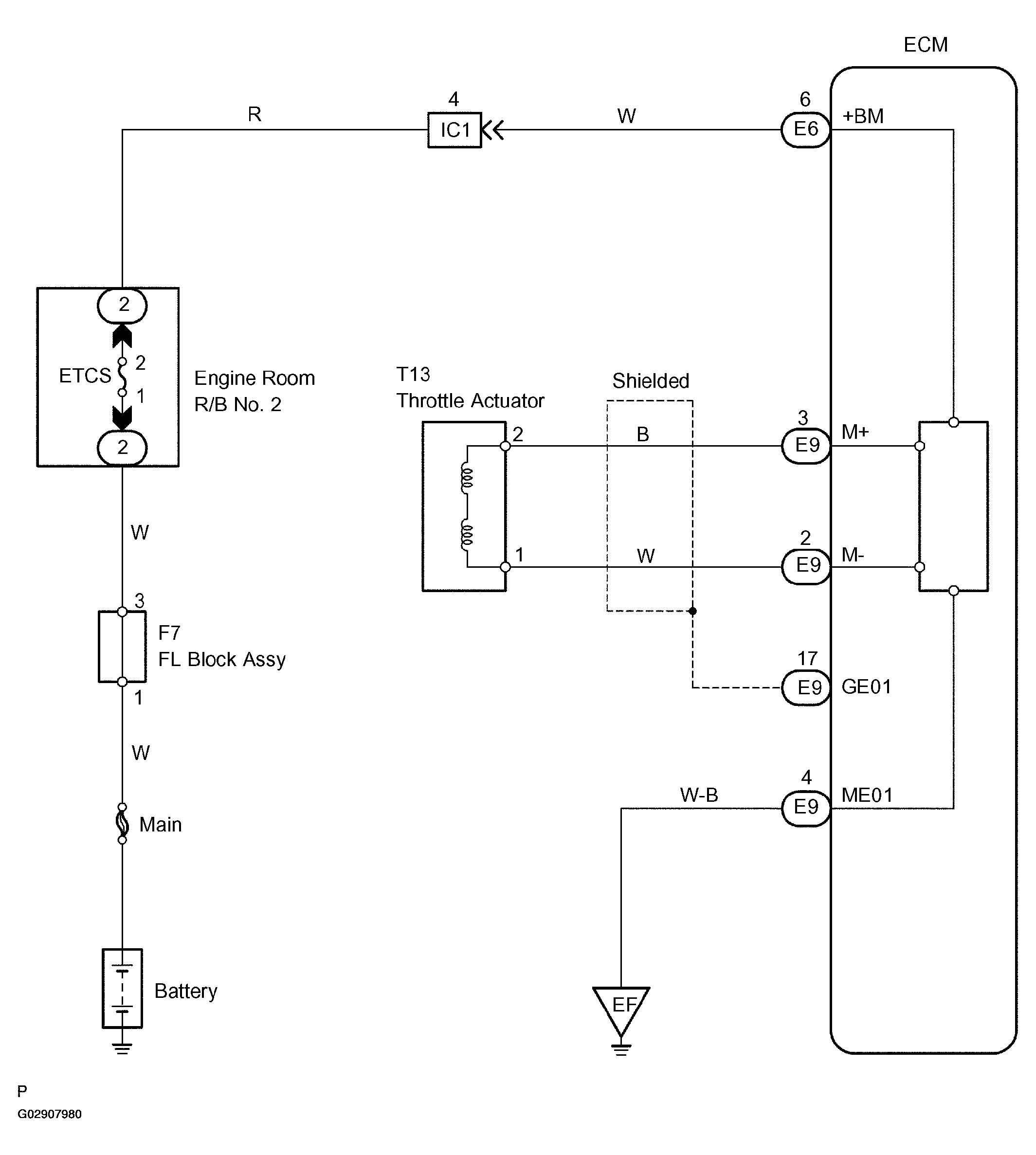

Fig 1: Throttle Actuator Wiring Diagram
G02907980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
