DTC P2102, P2103: Throttle Actuator Control Motor Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

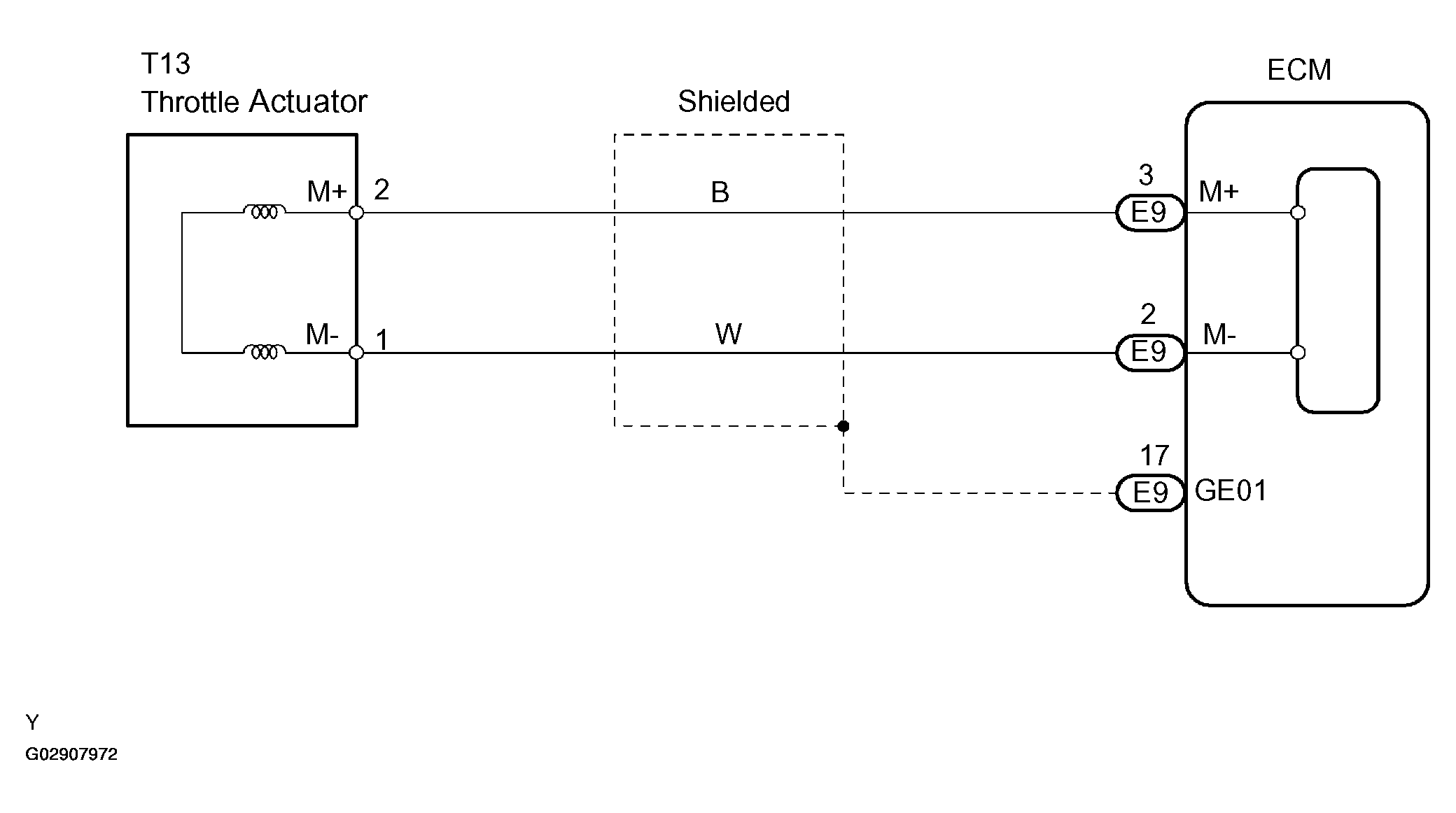

Fig 1: Throttle Actuator Wiring Diagram
G02907972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
