IAC Functional Check P0505

WARNING: This page is about a different variant/trim than selected.

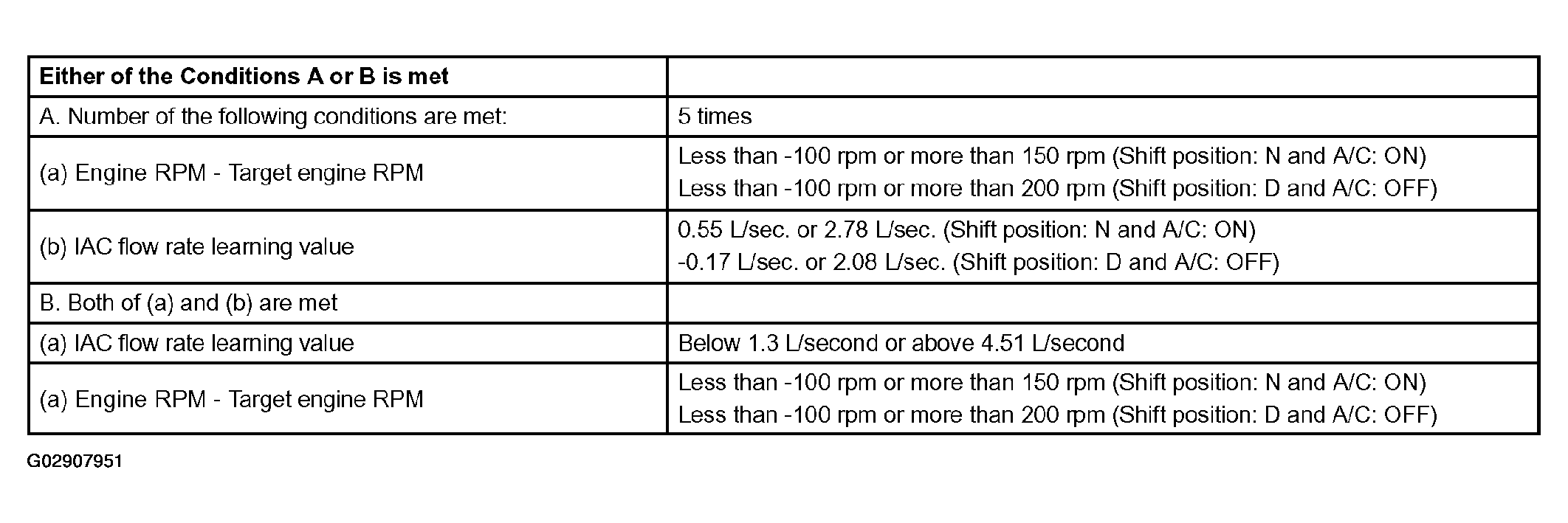

Fig 1: Typical Malfunction Thresholds (IAC Functional Check)
G02907951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
