CHECK STOP LAMP (OPERATION)
1. Check if the stop lamps turn on and off normally when the brake pedal is depressed and released.
  OK:

  The stop lamps turn on when you depress the brake pedal.
1. NG: REPAIR OR REPLACE STOP LAMP SWITCH CIRCUIT
2. OK: GO TO NEXT STEP.

INSPECT STOP LAMP SWITCH ASSY (RESISTANCE)

Measure the resistance of the switch terminals.

Fig 1: Identifying Stop Lamp Switch Connector Terminals

G02907940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

STOP LAMP SWITCH CONDITION AND RESISTANCE/VOLTAGE SPECIFICATIONS

Switch Condition	Tester Connection	Specified Condition
Switch pin free	1 - 2	Below 1.5 V
Switch pin free	3 - 4	10 kΩ or higher
Switch pin pushed in	1 - 2	10 kΩ or higher
Switch pin pushed in	3 - 4	Below 1.5 V

NG: REPLACE STOP LAMP SWITCH ASSY
OK: GO TO NEXT STEP.

READ VALUE OF HAND-HELD TESTER (STP SIGNAL, ST1 VOLTAGE)

Turn the ignition switch ON.

On the hand-held tester, enter the following menus: DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL/STOP LIGHT SW. Read the value.

Standard:

BRAKE PEDAL CONDITION AND SIGNAL SPECIFICATIONS

Brake Pedal Condition	Specified Condition
Depressed	STP Signal ON
Released	STP Signal OFF

Measure the voltage of the ECM connectors.

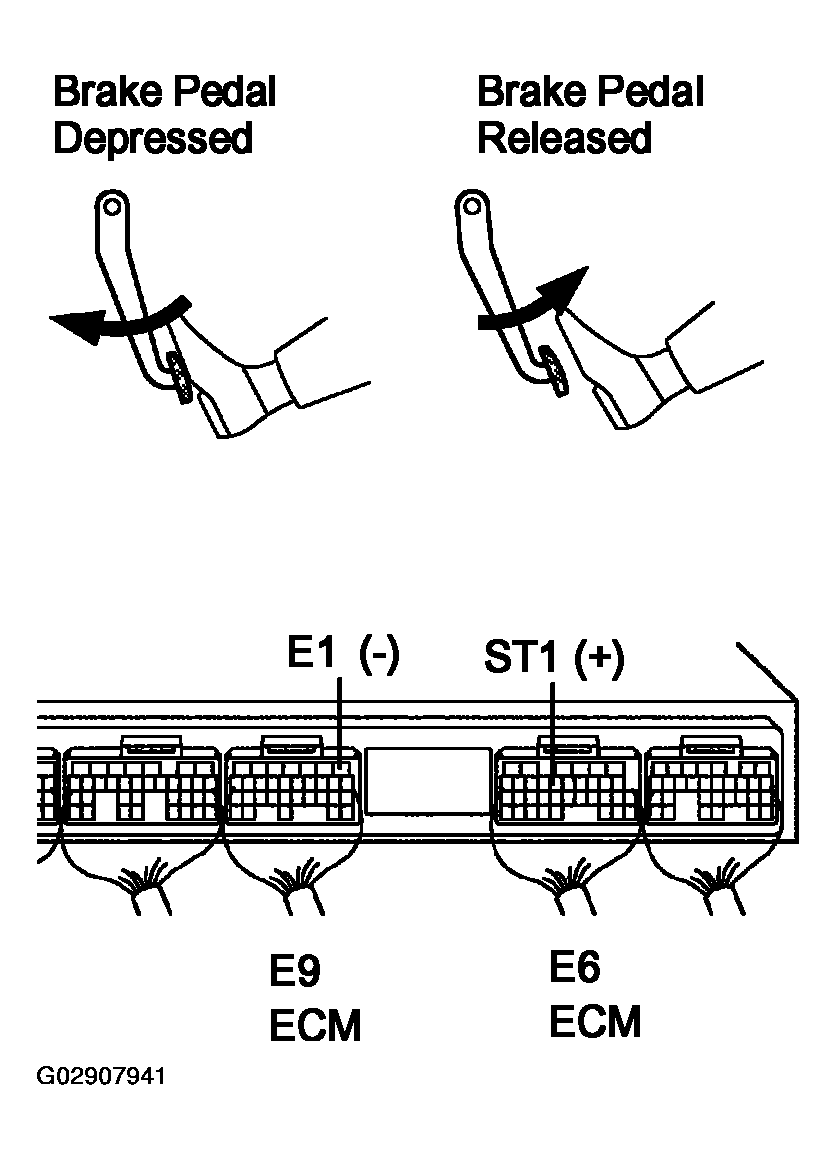

Fig 2: Identifying ECM E9 and E6 Connector Test Terminals

G02907941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

TESTER CONNECTION AND CONDITION SPECIFICATIONS

Tester Connection	Brake Pedal Condition	Specified Condition
E6-12 (ST1) - E9-1 (E1)	Depressed	Below 1.5 V
E6-12 (ST1) - E9-1 (E1)	Released	7.5 to 14 V

OK: CHECK FOR INTERMITTENT PROBLEMS (See CHECK FOR INTERMITTENT PROBLEMS )
NG: GO TO NEXT STEP.

CHECK WIRE HARNESS (STOP LAMP SWITCH - ECM)
1. Disconnect the S15 stop lamp switch connector.
2. Disconnect the E6 ECM connector.
3. Measure the resistance of the wire harness side connectors.

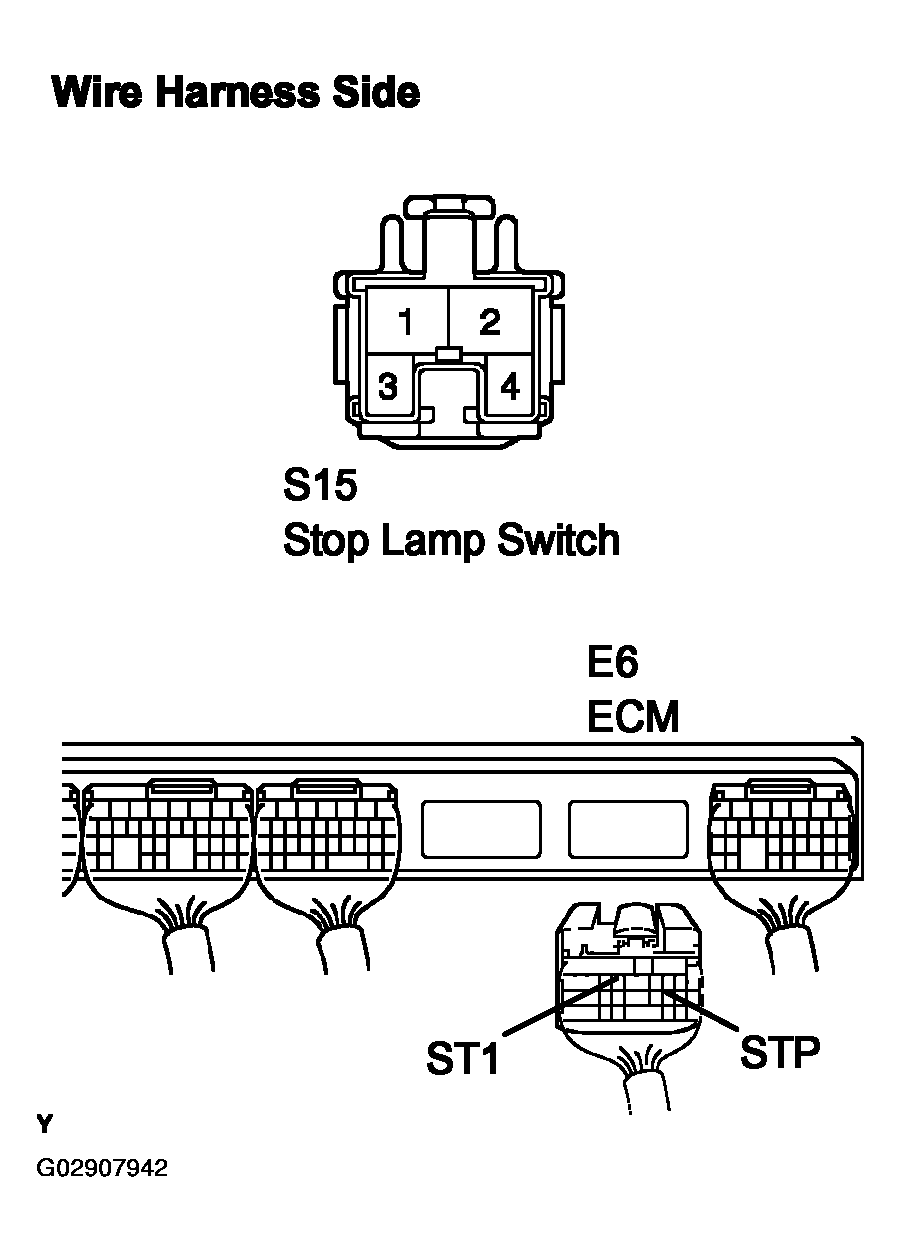

  Fig 3: Identifying Wire Harness Side (Stop Lamp Switch) & ECM Connector Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Fig 4: Wire Harness Resistance Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE ECM (See REPLACEMENT )
