Circuit Description
WARNING: This page is about a different variant/trim than selected.

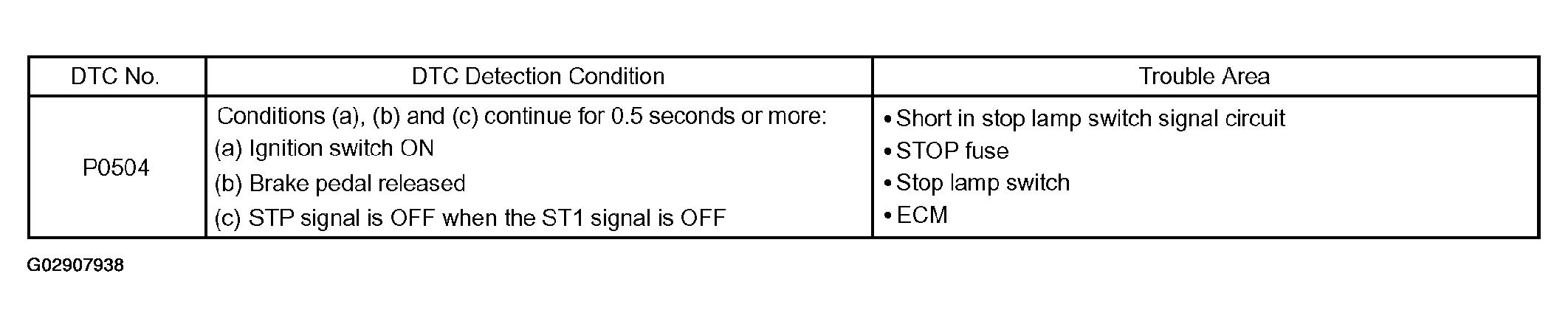

In addition to turning on the stop lamp, the stop lamp switch signals are used for a variety of engine, transmission, and suspension functions as well as being an input for diagnostic checks. It is important that the switch operates properly, therefore this switch is designed with two complementary signal outputs: STP and ST1. The ECM analyzes these signal outputs to detect malfunctions in the stop lamp switch.
HINT:
Normal condition is as shown in the table.
BRAKE PEDAL POSITION AND SWITCH NORMAL CONDITION SPECIFICATIONS
| Signal | Brake pedal released | In transition | Brake pedal depressed |
|---|---|---|---|
| STP | OFF | ON | ON |
| ST1 | ON | ON | OFF |
