Section 1 (Engine Control System (SFI) - Diagnostics (2AZ-FE))
>>
DTC P0451: Evaporative Emission Control System Pressure Sensor
>>
Wiring Diagram
DTC P0451: Evaporative Emission Control System Pressure Sensor: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

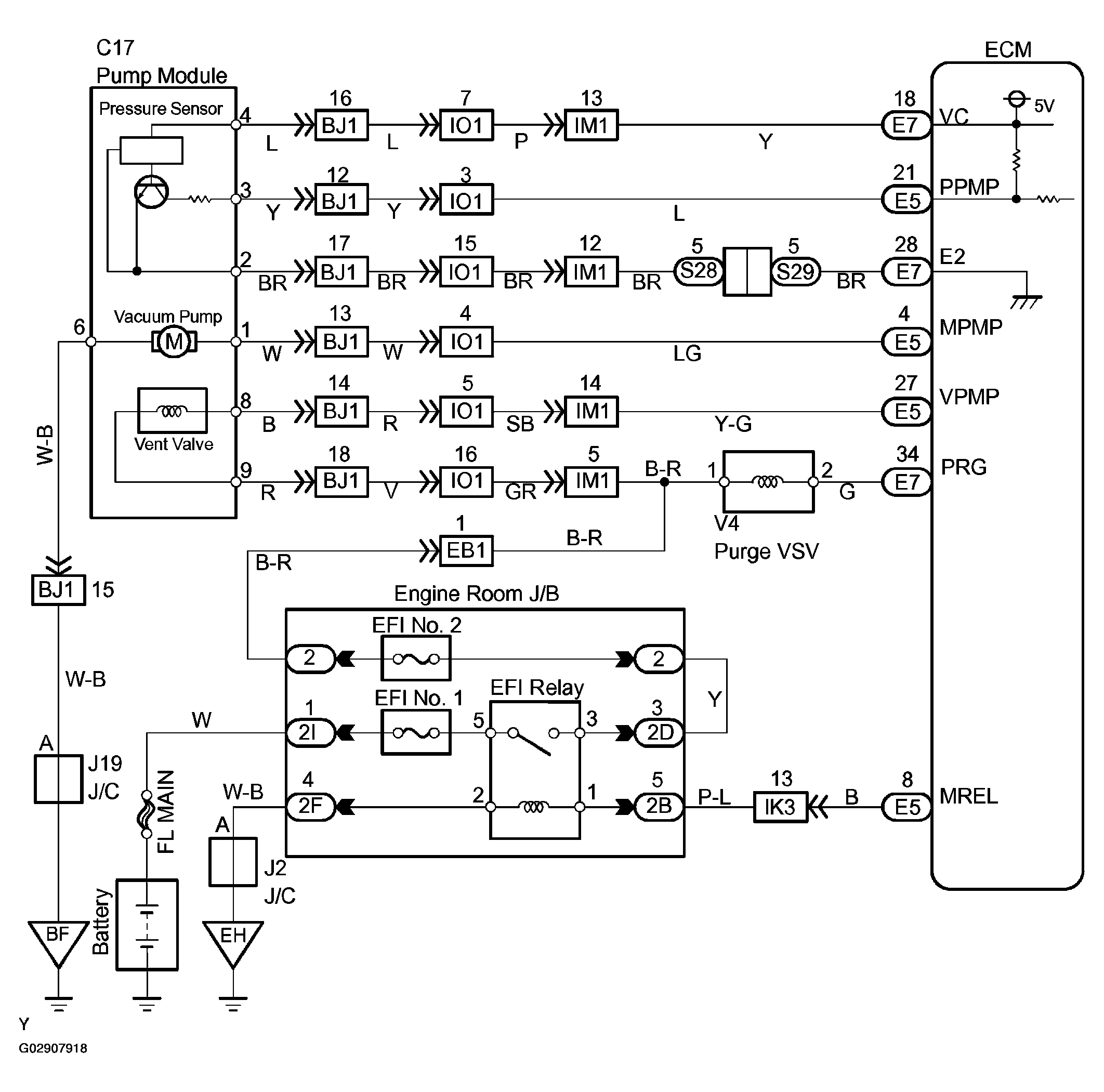

Fig 1: Evaporative Emission Control System Pressure Sensor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
