Conditioning A/F Sensor And Heated Oxygen Sensor For Testing
WARNING: This page is about a different variant/trim than selected.

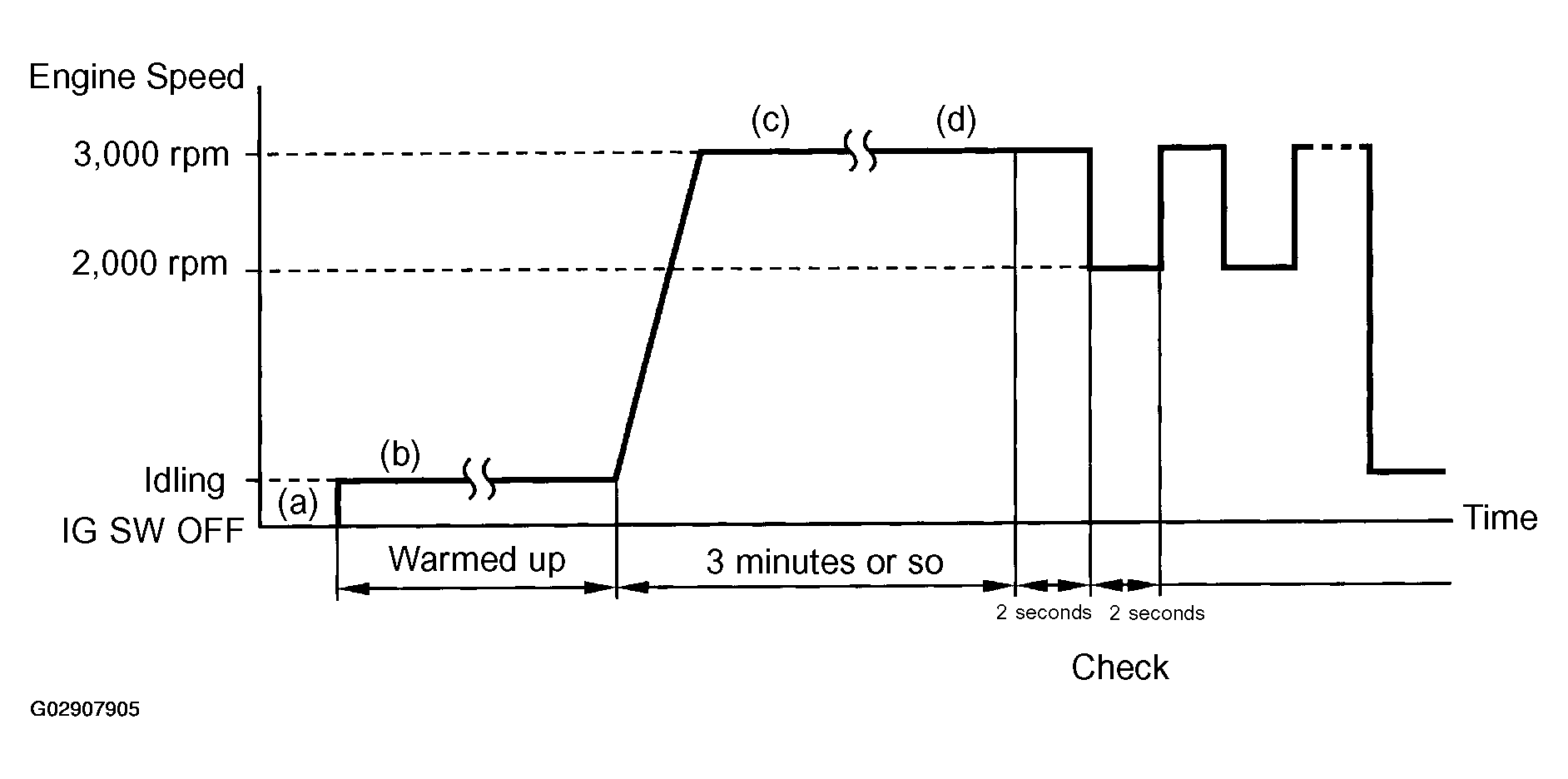

- Connect the hand-held tester or the OBD II scan tool to the DLC3.
- Start the engine and warm it up with all the accessories switched OFF until the Engine Coolant Temperature (ECT) is stable.
- Run the engine at 2,500 to 3,000 rpm for about 3 minutes.
- When alternating the engine between 3,000 rpm for 2 seconds and 2,000 rpm for 2 seconds, check the waveform of the oxygen sensor (bank 1 sensor 2).
