DTC P0351, P0352, P0353, P0354: Ignition Coil Primary/Secondary Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

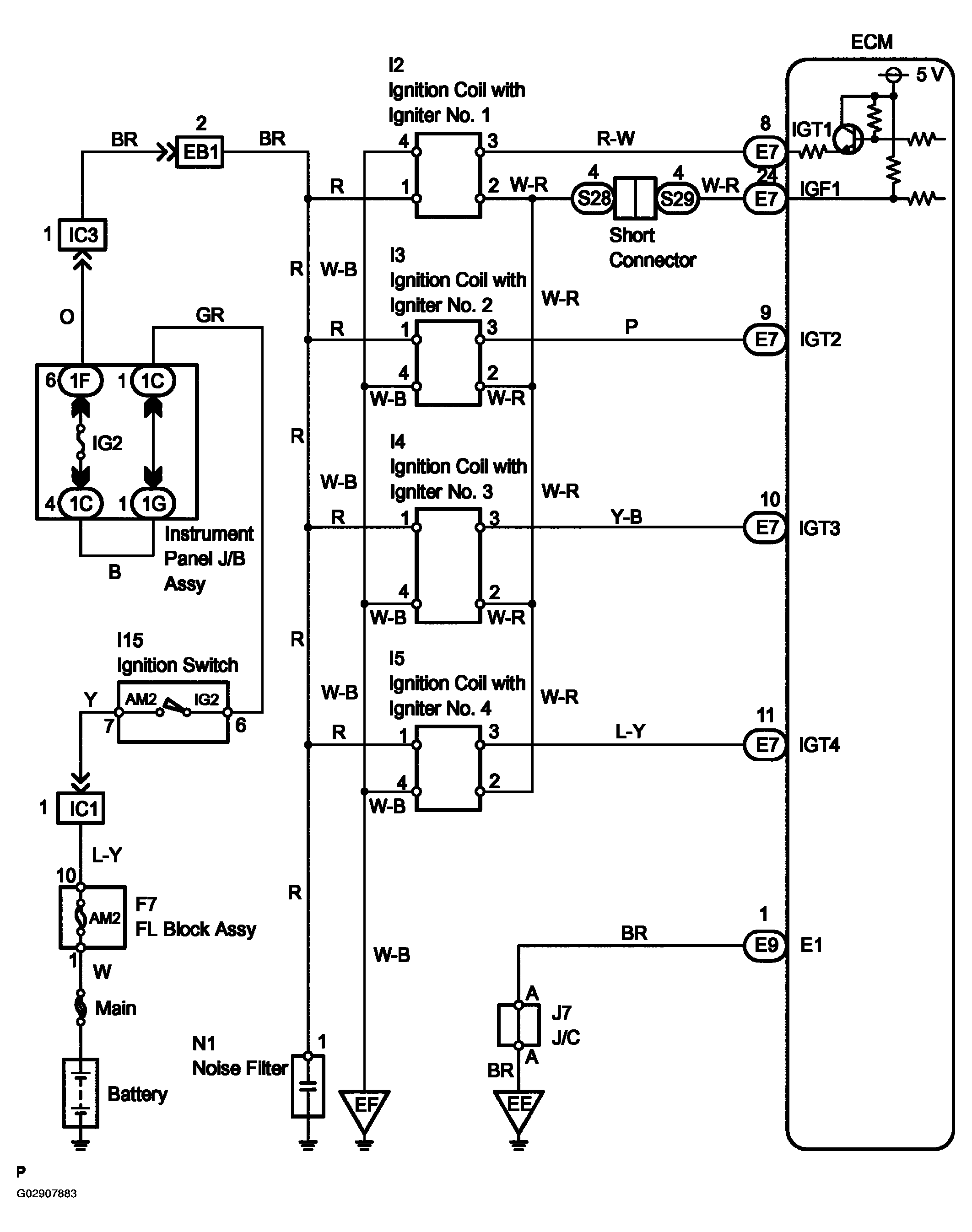

Fig 1: Ignition Coil And ECM Wiring Diagram
G02907883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
