DTC P0136, P0137, P0138: Oxygen Sensor Circuit (Bank 1 Sensor 2): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

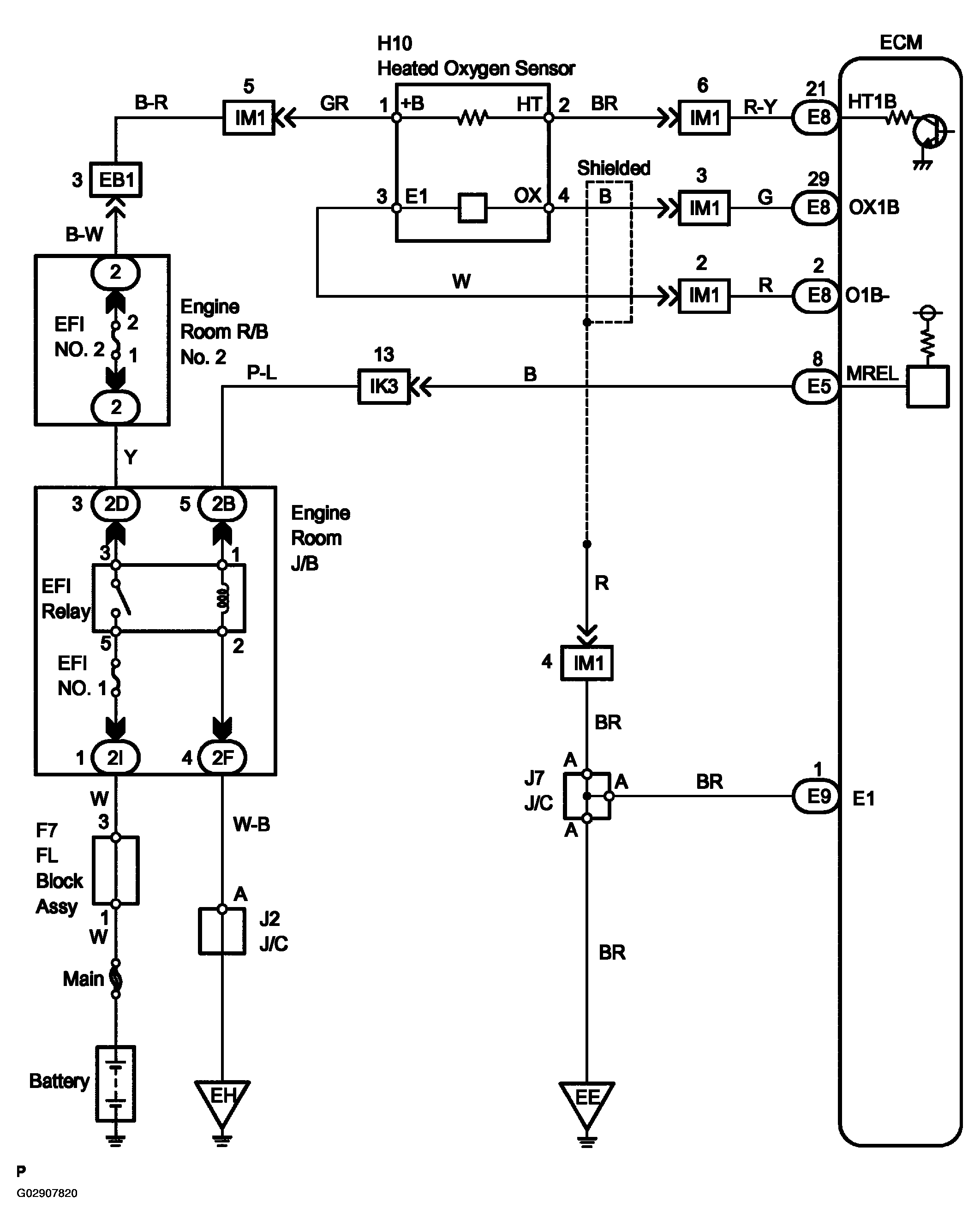

Fig 1: Heated Oxygen Sensor And ECM Wiring Diagram
G02907820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
