Confirmation Driving Pattern (P0136)

WARNING: This page is about a different variant/trim than selected.

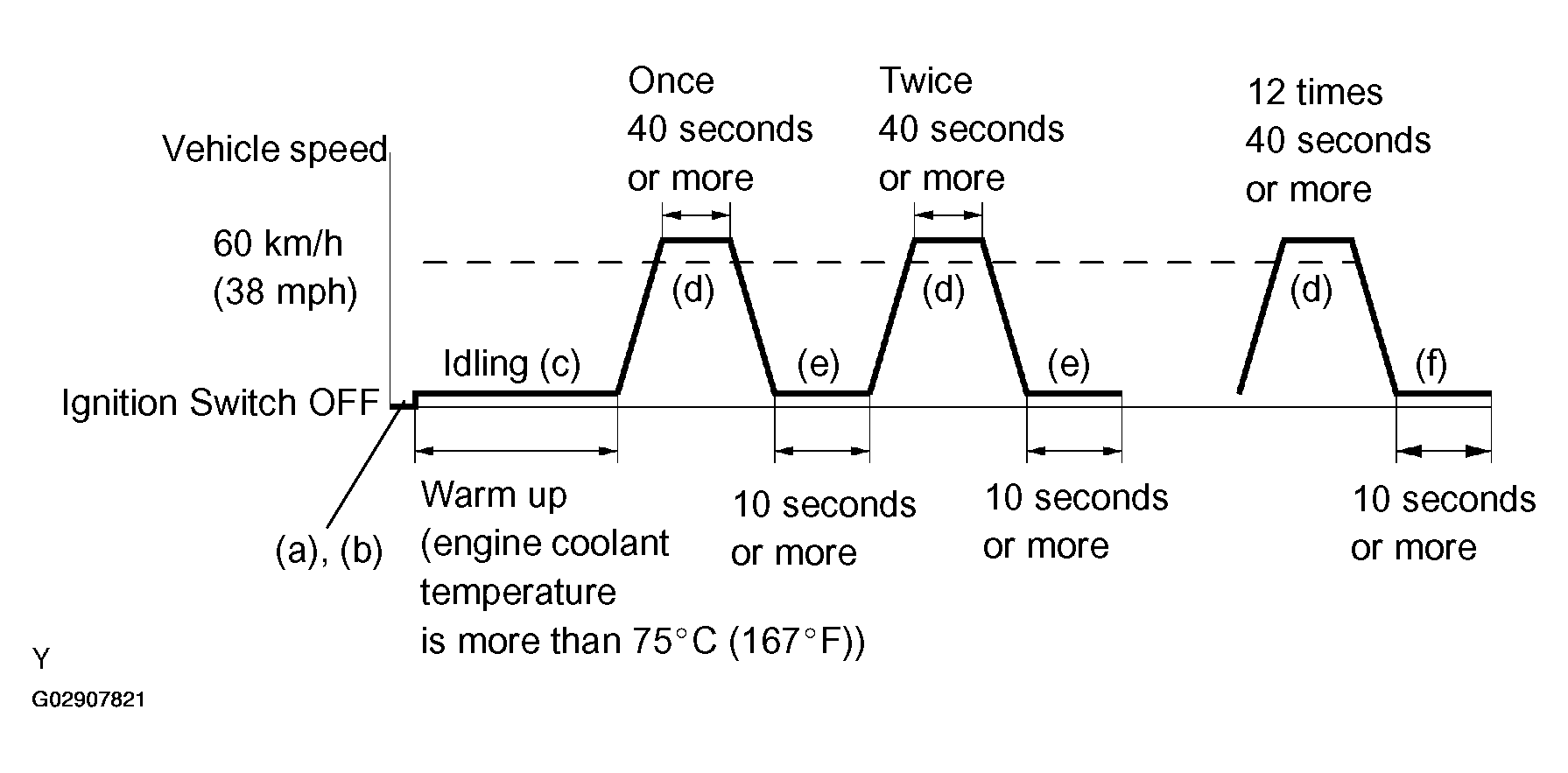

Fig 1: Identifying Confirmation Driving Pattern (P0136)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the hand-held tester to the DLC3.
Switch the hand-held tester from normal mode to check (test) mode (see CHECK MODE PROCEDURE ).
Start the engine and warm it up until the engine coolant temperature becomes more than 75°C.
Drive the vehicle at 60 km/h (38 mph) or more for 40 seconds or more.
Let the engine idle for 10 seconds or more.
Perform steps (d) to (e) 12 times.

HINT:

If a malfunction exists, the MIL will illuminate during step (f).

NOTE: If the conditions in this test are not strictly followed, detection of a malfunction will not occur. If you do not have a hand-held tester, turn the ignition switch OFF after performing steps from (c) to (f), then perform steps from (c) to (f) again.
