Section 1 (Engine Control System (SFI) - Diagnostics (2AZ-FE))
>>
DTC P0120, P0122, P0123, P0220, P0223, P2135: Throttle/Pedal Position Sensor/Switch Circuit
>>
Wiring Diagram
DTC P0120, P0122, P0123, P0220, P0223, P2135: Throttle/Pedal Position Sensor/Switch Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

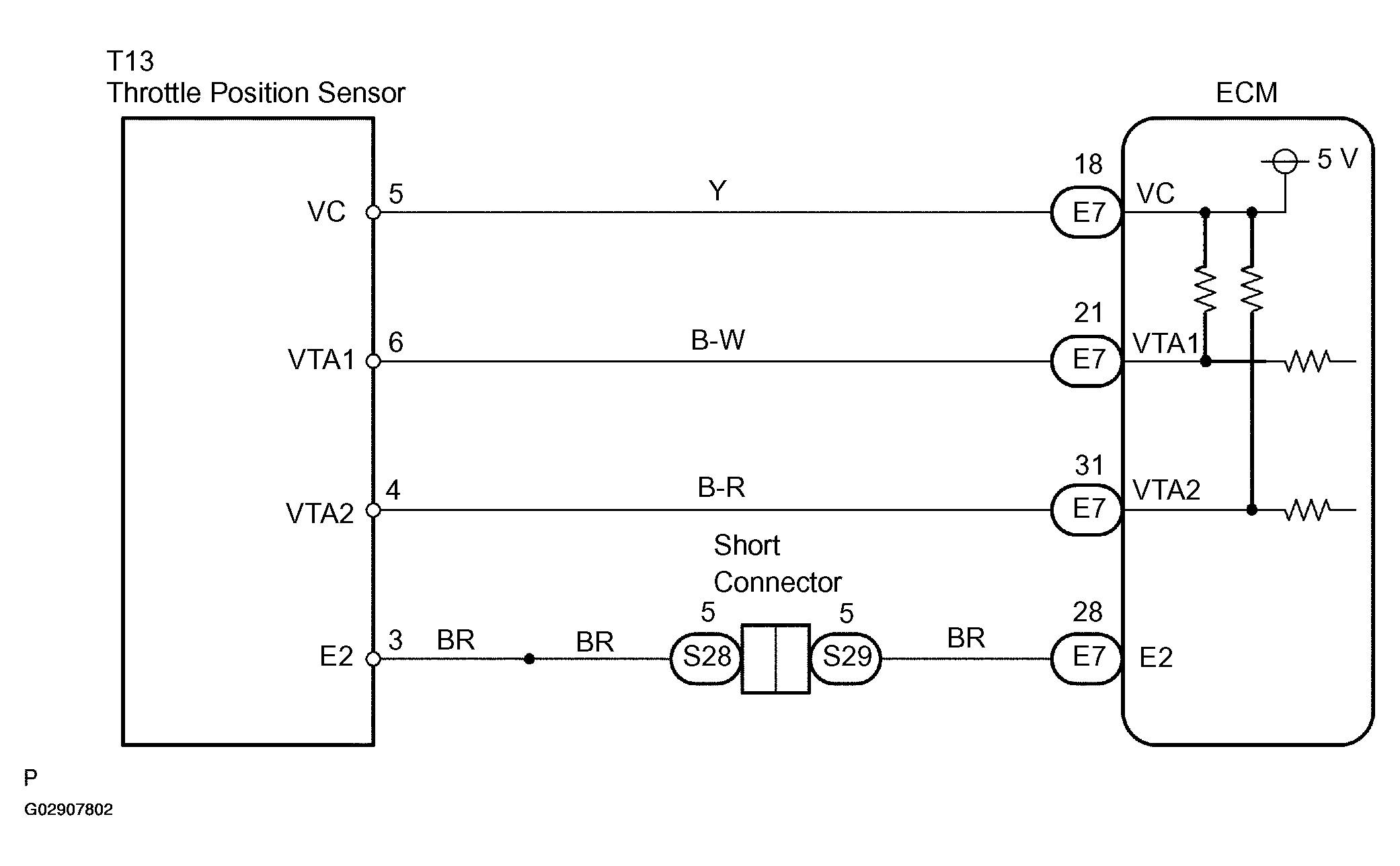

Fig 1: Throttle Position Sensor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
