Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0115 on DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT .

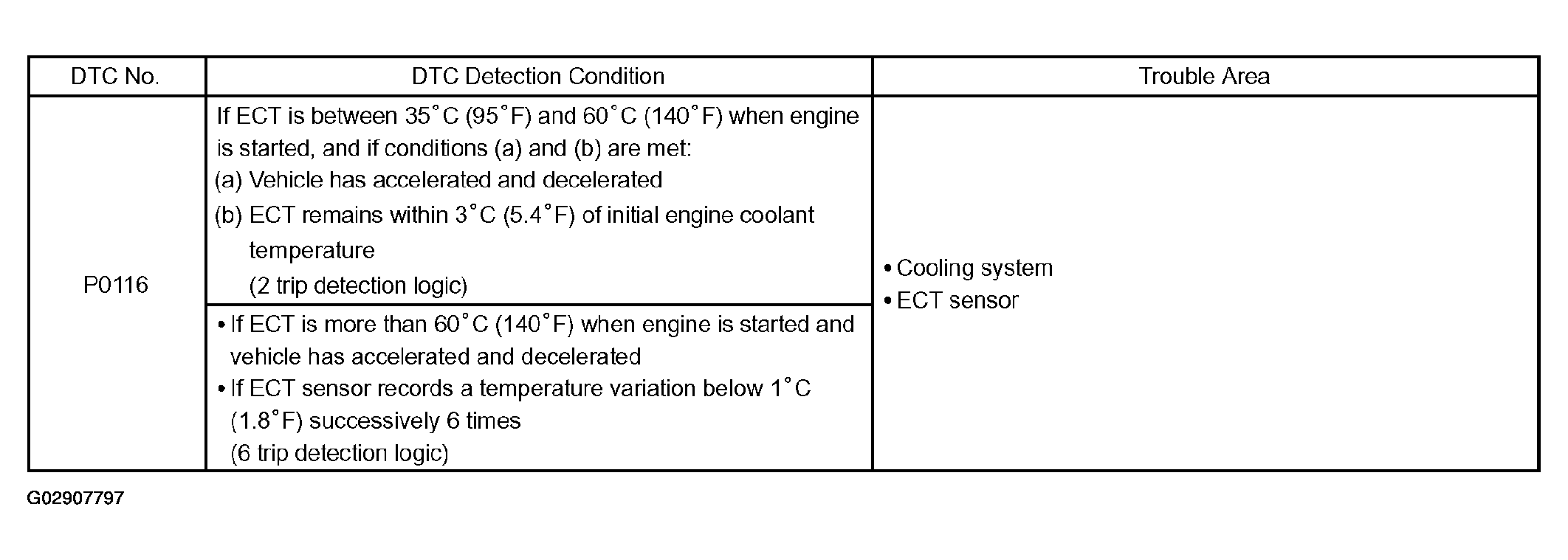

Fig 1: DTC Trouble Detection Chart (DTC - P0116)
G02907797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
